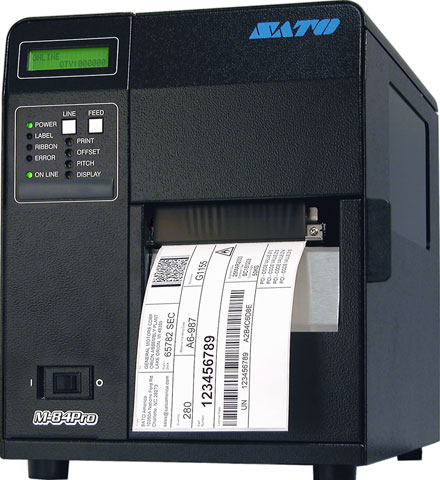

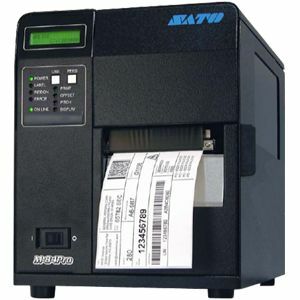

SATO M84Pro – Barcode Label Printer – 203 dpi – Thermal Transfer – Cutter

Part Number: WM8420131
Model: M84Pro(2)
3-year Premium Plus ($1,022.35)
3-year Premium ($868.35)
No Support
$3,595.50
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Serial
Print Resolution
203 dpi

Product Description:

  Industrial Label Printer, SATO M84Pro, Thermal Transfer, 203 dpi, 10 ips, 4.1" Max Print Width, 3" Core, 8.6" Outer Diameter, Serial. Includes: Cutter

SATO M84Pro(2) Barcode Label Printer Model Overview

The M84Pro(2) delivers 4.1" print width at rapid 10 inches per second with virtually Zero-Compile time by using the latest generation of 32-bit RISC 133 MHz CPU. The M84Pro(2) has a 203 dots-per-inch print resolution, which can be changed to either 305 or 609 dpi simply by switching printheads. All resolutions support the full 4.1" print width. All SATO Pro Series printers come with a minimum of 16MB RAM and 2MB Flash for storage of forms, fonts and graphics. Optional Flash module or PCMCIA memory card expands the printer storage capabilities even further. The M84Pro(2) is available with a vast array of interface connection plug-in modules making integration connectivity issues disappear.
SATO WM8420131 Barcode Label Printer Overview

The M84Pro(2) Label Printer - the rugged industrial generation of high performance printers with high resolution capabilities. The M84Pro(2) Label Printer offers user configurable print resolutions of 203 dpi. The M84Pro(2) Label Printer powerful electronics provide high throughput and print speeds of 10 ips at 203 dpi respectively.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • ITF-14
  • UCC/EAN 128
  • Code 128
  • Interleaved 2 of 5
  • Code 39
  • RSS
  • POSTNET
  • EAN-13
  • EAN-8
  • MSI
  • Codabar
  • Bookland
  • Matrix 25
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Flash Memory:
2 MB
Interfaces/Ports
Serial Port:
Yes
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Direct Thermal Paper
  • Thermal Transfer Label
  • Synthetic Media
  • Tag Stock
  • Black Mark
  • Notched
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8.60"
Maximum Label Width:
5"
Maximum Label Length:
49.20"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13.4"
Width:
10.4"
Depth:
17.1"
Miscellaneous
Additional Information:
  • Adjustable transmissive sensor for gap
  • Reflective sensor for black mark
  • Automatic programmable setting of top of form
  • Label present sensor
Platform Supported:
PC
Certifications & Standards:
  • CE
  • UL
  • CSA
  • TÜV
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
