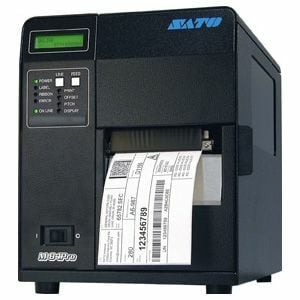

SATO WM8420011 Barcode Label Printer

SATO M84Pro - Industrial Label Printer, SATO M84Pro, Thermal Transfer, 203 dpi, 10 ips, 4.1" Max Print Width, 3" Core, 8.6" Outer Diameter, Parallel. Base Model
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel
Print Resolution
203 dpi
Max Print Width
4 inch
Label Core Size
3 inch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer provides high-quality label/receipt printing with maximum dependability
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • 5" maximum label width for your convenience and feasible usability
  • 49.20" maximum label length to easily accommodate your needs with added productivity
  • Supports roll fed media type for maximum feasibility and better accommodation of your requirements
  • Comes with 16 MB standard memory for timely printing with added reliability
Read More
$2,283.75
In Stock
3-year Premium Plus ($884.00)
3-year Premium ($730.00)
No Support
Add to Quote
SATO M84Pro(2) Barcode Label Printer Model Overview
The M84Pro(2) delivers 4.1" print width at rapid 10 inches per second with virtually Zero-Compile time by using the latest generation of 32-bit RISC 133 MHz CPU. The M84Pro(2) has a 203 dots-per-inch print resolution, which can be changed to either 305 or 609 dpi simply by switching printheads. All resolutions support the full 4.1" print width. All SATO Pro Series printers come with a minimum of 16MB RAM and 2MB Flash for storage of forms, fonts and graphics. Optional Flash module or PCMCIA memory card expands the printer storage capabilities even further. The M84Pro(2) is available with a vast array of interface connection plug-in modules making integration connectivity issues disappear.
SATO WM8420011 Barcode Label Printer Overview

The M84Pro - the rugged industrial generation of high performance printer with high resolution capabilities. The M84Pro offers print resolution of 203, 305, and 609 dpi. The M84Pros powerful electronics provide high throughput and print speeds of 10, 8 and 6 ips at 203, 305 and 609 dpi respectively.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • ITF-14
  • UCC/EAN 128
  • Code 128
  • Interleaved 2 of 5
  • Code 39
  • RSS
  • POSTNET
  • EAN-13
  • EAN-8
  • MSI
  • Codabar
  • Bookland
  • Matrix 25
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
Memory
Standard Memory:
16 MB
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Direct Thermal Paper
  • Thermal Transfer Label
  • Synthetic Media
  • Tag Stock
  • Black Mark
  • Notched
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8.60"
Maximum Label Width:
5"
Maximum Label Length:
49.20"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13.4"
Width:
10.4"
Depth:
17.1"
Miscellaneous
Additional Information:
  • Adjustable transmissive sensor for gap
  • Reflective sensor for black mark
  • Automatic programmable setting of top of form
  • Label present sensor
Platform Supported:
PC
Certifications & Standards:
  • CE
  • UL
  • CSA
  • TÜV
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0017097973896, 0749656115132, 0783555051375, 0799916080304
UPC: 017097973896, 749656115132, 783555051375, 799916080304
EAN: 0017097973896, 0749656115132, 0783555051375, 0799916080304
UNSPSC: 43212108
