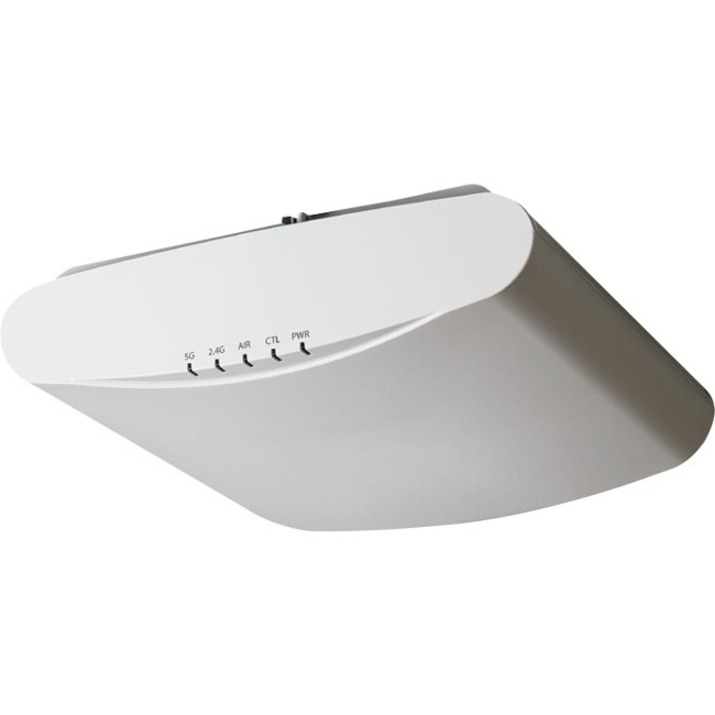

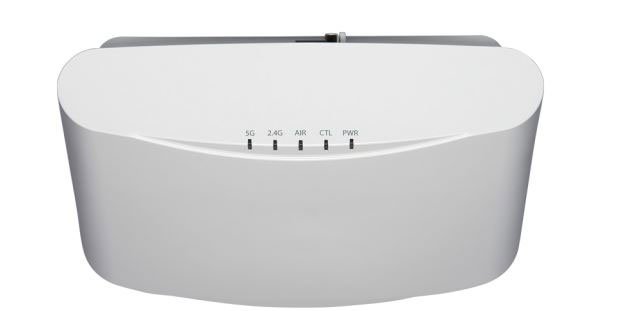

Ruckus 9U1-R720-US00 Wireless Access Points

Indoor 802.11ac Wave 2 Wi-Fi Access Point with Multi-gigabit Backhaul for Ultra-Dense Device Environments

A perfect storm of technology trends-the Internet of Things (IoT), bandwidth-hungry cloud and video applications, an explosion of new devices-is driving organizations in every industry to upgrade their WLAN infrastructure. 802.11ac Wave 2 can deliver the performance you need, but it can also quickly overload existing 1 Gbps backhaul connections. Who wants to bear the cost of running more Ethernet and using more switch ports to ensure greater throughput between wired and wireless?

The Ruckus R720 Unleashed indoor access point is our highest-capacity fourstream 802.11ac Wave 2 Wi-Fi AP. It features multi-gigabit technology, so you can step up to faster Wi-Fi speeds and 2.5GbE backhaul connectivity without having to replace your Cat 5e cabling or use additional switch ports. Deploy a highperformance, highly resilient Wi-Fi network without breaking the bank.

The Ruckus R720 Unleashed provides an affordable controller-less Wi-Fi solution with premium performance and simplified management. There is no need for separate controllers and access point licenses, significantly reducing upfront costs. With an intuitive and easy to understand user interface, Unleashed network can be setup in under 5 minutes on the mobile phone or a web browser without need of networking expertise.

With hundreds of devices and nonstop wireless noise and interference, busy indoor environments can be the most challenging Wi-Fi deployments. The R720 Unleashed makes it easy to deliver reliable, high-performance connectivitdy in large enterprises, office buildings, university campuses, convention centers, and practically any other indoor space.

The R720 Unleashed 802.11ac Wave 2 Wi-Fi AP incorporates patented technologies found only in the Ruckus Wi-Fi portfolio.

• Extended coverage with patented BeamFlex+ utilizing mult-directional antenna patterns
• Improved throughput with ChannelFly which dynamically find less congested Wi-Fi channels to use

With four stream MU-MIMO connectivity, the R720 Unleashed can simultaneously transmit to multiple Wave 2 clients in the widest available channels, drastically improving RF efficiency even for non-Wave 2 clients.

BEST IN CLASS PERFORMANCE

BeamFlex+-Patented Adaptive Antenna Technology

The Ruckus R720 Unleashed integrates patented softwarecontrolled adaptive antennas. BeamFlex+ antenna adapts automatically to client locations and environmental conditions; the smart antenna technology optimizes the RF energy toward client on a per packet basis. This allows for substantially higher performance than traditional solutions.

ChannelFly-Machine Learning Auto Channel

ChannelFly is a new approach to optimizing RF channel selection based on capacity averages across all channels. Specialized algorithms select the best channel based on historical values. In combination with the adaptive antenna technology, ChannelFly delivers substantially higher throughput than our competitors.

SmartMesh™-Self-Forming and Self-Healing Mesh

SmartMesh simplifies the deployment of your unleashed network by reducing cumbersome radio planning and costly cabling needed to reliably connect every Wi-Fi access point. SmartMesh automatically establishes wireless connections between individual access points using patented smart antenna technology and self-heals in the event of a failed link.
