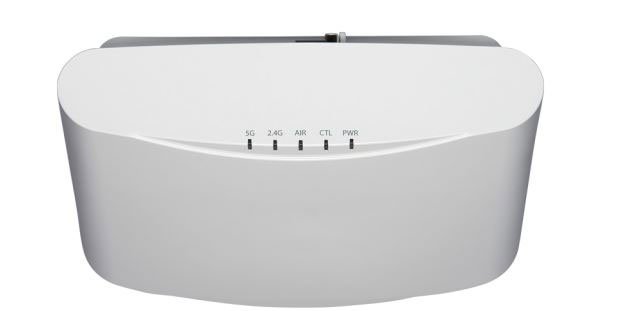

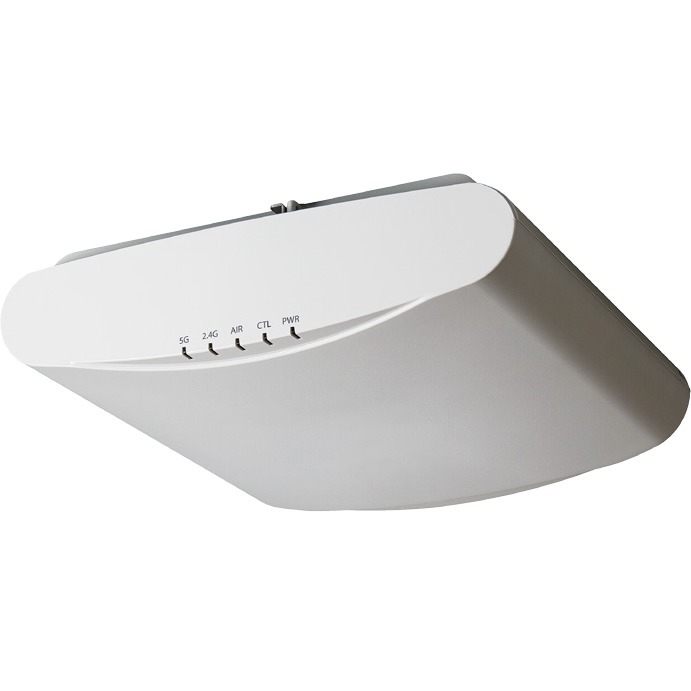

Ruckus 901-R720-WW00 Access Point

The Ruckus 901-R720-WW00 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Ruckus R720 - Ruckus Wireless ZoneFlex R720 IEEE 802.11ac 1.69 Gbit/s Wireless Access Point - 5 GHz, 2.40 GHz - MIMO Technology - 2 x Network (RJ-45) - Gigabit Ethernet - Wall Mountable, Ceiling Mountable
  • 4-stream 802.11ac Multi-User MIMO (MU-MIMO)
  • Concurrent dual-band (5GHz/2.4GHz) support
  • 80MHz, 80+80MHz and 160MHz channelization; 256-QAM modulation support; 1733 Mbps PHY rates at 5GHz
  • 256-QAM support on 2.4GHz
  • 802.11ac standard Tx Beamforming
  • Backward compatible with legacy 802.11 clients
  • Space Time Block Coding for increased handset performance
  • Improved Maximum Ratio Combining (MRC) for best-in-class receive sensitivity
  • Low Density Parity Check (LDPC) for increased data throughput at all ranges
  • BeamFlex+ (PD-MRC) improves signal reception of mobile devices
Read More

Need a different version? See all Ruckus R720 Access Points

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Ruckus 901-R720-WW00 Access Point
Ruckus 901-R720-WW00 Access Point
Ruckus 901-R720-WW00 Access Point
Ruckus 901-R720-WW00 Access Point
Ruckus 901-R720-WW00 Access Point Ruckus 901-R720-WW00 Access Point Ruckus 901-R720-WW00 Access Point Ruckus 901-R720-WW00 Access Point
Full specifications (PDF)
Ruckus R720 Access Point Model Overview
Indoor 802.11ac Wave 2 Wi-Fi Access Point with Multi-gigabit Backhaul for Ultra-Dense Device Environments
Ruckus 901-R720-WW00 Access Point Overview

Indoor 802.11ac Wave 2 Wi-Fi Access Point with Multi-gigabit Backhaul for the Densest Device Environments

Looking for the best multi-gigabit Wi-Fi in the business but cost-conscious about replacing the existing cable infrastructure? The Ruckus R720 indoor access point is our highest capacity four-stream 802.11ac Wave 2 Wi-Fi access point and supports multi-gigabit 2.5 GbE. This access point enables the reuse of existing Cat 5e cables and maximizes the performance of your Wave 2 infrastructure without paying extra for multi-gigabit technology that cannot be used. Together with Ruckus WLAN controllers, you get the best enterprise Wi-Fi in the business and your users get a consistently great Wi-Fi experience-fast, reliable, and secure.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
  • 5 GHz
  • 2.40 GHz
Wireless Transmission Speed:
1.69 Gbit/s
MIMO Technology:
Yes
Beamforming Technology:
Yes
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
USB:
Yes
Powerline:
No
Management Port:
No
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
2.4"
Width:
8.3"
Depth:
9.1"
Weight (Approximate):
2.47 lb
Miscellaneous
Package Contents:
  • Indoor 802.11ac Wave 2 4x4:4 Wi-Fi Access Point With 2.5Gbps Backhaul
  • Adjustable Acoustic Drop Ceiling Bracket
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0818214370068
UPC: 818214370068
EAN: 0818214370068
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Ruckus 901-R720-WW00 Access Point is also known as RUC-901R720WW00
