Full specifications (PDF)
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
- 2.40 GHz
- 5 GHz
Wireless Transmission Speed:
2.28 Gbit/s
MIMO Technology:
Yes
Beamforming Technology:
Yes

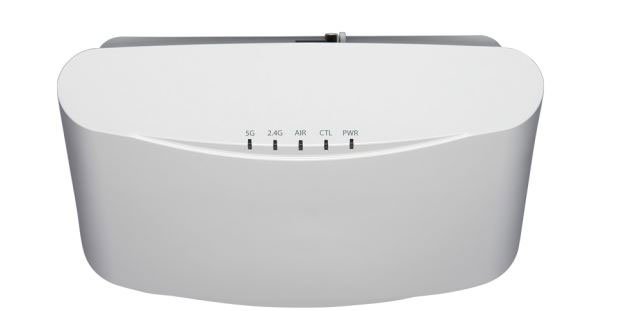

Ruckus R720 Access Point Model Overview
Indoor 802.11ac Wave 2 Wi-Fi Access Point with Multi-gigabit Backhaul for Ultra-Dense Device Environments
Ruckus 901-R720-US00 Access Point Overview
A perfect storm of technology trends-the Internet of Things (IoT), bandwidth-hungry cloud and video applications, an explosion of new devices-is driving organizations in every industry to upgrade their WLAN infrastructure. 802.11ac Wave 2 can deliver the performance you need, but it can also quickly overload existing 1 Gbps backhaul connections. Who wants to bear the cost of running more Ethernet and using more switch ports to ensure greater throughput between wired and wireless?
The Ruckus R720 indoor access point is our highest-capacity four-stream 802.11ac Wave 2 Wi-Fi AP. It features multi-gigabit technology, so you can step up to faster Wi-Fi speeds and 2.5GbE backhaul connectivity without having to replace your Cat 5e cabling or use additional switch ports. Deploy a high-performance, highly resilient Wi-Fi network without breaking the bank.
With hundreds of devices and nonstop wireless noise and interference, busy indoor environments can be the most challenging Wi-Fi deployments. The R720 makes it easy to deliver reliable, high-performance connectivity in large enterprises, o?ce buildings, university campuses, convention centers, and practically any other indoor space.
The R720 802.11ac Wave 2 Wi-Fi AP incorporates patented technologies found only in the Ruckus Wi-Fi portfolio.
Whether you're deploying ten or ten thousand APs, the R720 is also easy to manage through Ruckus' appliance, virtual and cloud management options.
The Ruckus R720 indoor access point is our highest-capacity four-stream 802.11ac Wave 2 Wi-Fi AP. It features multi-gigabit technology, so you can step up to faster Wi-Fi speeds and 2.5GbE backhaul connectivity without having to replace your Cat 5e cabling or use additional switch ports. Deploy a high-performance, highly resilient Wi-Fi network without breaking the bank.
With hundreds of devices and nonstop wireless noise and interference, busy indoor environments can be the most challenging Wi-Fi deployments. The R720 makes it easy to deliver reliable, high-performance connectivity in large enterprises, o?ce buildings, university campuses, convention centers, and practically any other indoor space.
The R720 802.11ac Wave 2 Wi-Fi AP incorporates patented technologies found only in the Ruckus Wi-Fi portfolio.
- Extended coverage with patented BeamFlex+ utilizing multi-directional antenna patterns
- Improve throughput with ChannelFly which dynamically find less congested WiFi channels to use
Whether you're deploying ten or ten thousand APs, the R720 is also easy to manage through Ruckus' appliance, virtual and cloud management options.
Technical Information
Interfaces/Ports
Ethernet Technology:
- 2.5 Gigabit Ethernet
- Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
PoE PD Port:
Yes
USB:
Yes
Physical Characteristics
Form Factor:
- Wall Mountable
- Ceiling Mountable
- Desktop
Height:
2.4"
Width:
8.3"
Depth:
9.1"
Weight (Approximate):
2.50 lb
Miscellaneous
Package Contents:
- Indoor 802.11ac Wave 2 4x4:4 Wi-Fi Access Point With 2.5Gbps Backhaul
- Adjustable Acoustic Drop Ceiling Bracket
Environmentally Friendly:
Yes
Environmental Certification:
- WEEE
- RoHS
TAA Compliant:
No
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0039051158835, 0653981237783, 0818214371904
UPC:
039051158835, 653981237783, 818214371904
EAN:
0039051158835, 0653981237783, 0818214371904
UNSPSC:
43222631
Get help from a Barcoding Expert!
The Ruckus 901-R720-US00 Access Point is also known as
RUC-901R720US00
