Full specifications (PDF)
Light Source:
Laser
Scan Pattern:
Bi-directional
RJS Inspector D4000 Auto Optic and Laser – Barcode Scanner – 1D – Scanner Only
Part Number:
002-7847
RJS Inspector D4000 Auto Optic and Laser Barcode Verifier Model Overview
The Inspector D4000A Bar Code Verifier by RJ S Technologies is a versatile and cost-effective solution for ensuring the quality of your bar code printing. With its patented Auto-Optic scan head offering multiple aperture sizes and light wavelengths, this verifier can handle a variety of bar codes effortlessly. Instant feedback is provided through the LCD display and colored LEDs, allowing users to quickly ascertain compliance with ISO/ANSI standards. The device is ideal for small to mid-sized businesses looking for reliable barcode verification without breaking the bank.
Key Features
- Flexible Operation: Dual-mode for ISO/ANSI or traditional laser scanning
- Multiple Configurations: Eight optical configurations for diverse bar code applications
- Instant Feedback: Alphanumeric LCD display with audible tones and LED indicators
- Store and Print: Capability to generate printed reports with an optional thermal printer
- Symbology Support: Auto-discriminates between all popular linear symbologies
Specifications
- Dimensions: 1.9 in. (H) x 4.6 in. (W) x 7.8 in. (L)
- Weight: 26.5 ounces (751 g)
- Power Supply: 4 AA Alkaline or NiCad batteries; optional AC Charger
- Operating Temperature: 50° to 105° F (10° to 40° C)
- Storage Temperature: 14° to 158° F (-20° to 50° C)
- Humidity: 5% to 80% Non-condensing
- Test Apertures: 3, 5, 10, and 20 mil (Auto-Optic option)
- Regulatory Compliance: FCC Class A, CE Certified
RJS 002-7847 Barcode Scanner Overview

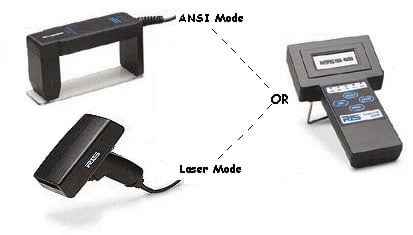

The Model D4000 Provides the Two Most Popular Types of Verification: ANSI/ISO Method and/or Point-and-Shoot Traditional Method. This unique portable bar code verifier can interface with either the patented RJS Auto-Optic scan head or a laser scanner to provide nine different optic configurations. The scanners are easily installed by the user, which makes the unit quickly adaptable to practically any verification requirement.
Product Information
Miscellaneous
Additional Information:
- Laser or ANSI/ISO mode set by scanner type installed
- Easy point and shoot
- Auto-discrimination between symbologies
- Store and Print capability
- Bi-directional scanning
- Multiple scan averaging
Item Numbers
UNSPSC:
43211701
Recommended Accessories
Category
- Barcode Verifier (1)
- Barcode Verifier Accessories (18)
- Batteries (2)
- Best Barcode Scanner (1)
- Cables, Connectors, and Adapters (4)
- Docks and Cradles (2)
- General Software (1)
- Laser Barcode Scanner (1)
- Spare Parts (15)
Recommended Accessories for Model: RJS 002-7847 Barcode Scanner
Top Barcode Verifier Purchased With RJS 002-7847
-
RJS 002-7859 Barcode ScannerRJS Inspector D4000 CR2 Laser Scanner, D4000/L1000. NOT entire bar code verifier. Replacement part or add-on only which REQUIRES customer already has (Part# 002-7850) or (Part# 002-7851) or (Part# 002-7845).$1,576.00
Top Barcode Verifier Accessories Purchased With RJS 002-7847
-
RJS 002-6773 AccessoryTP140A Verifier Cable. Replacement TP140 and TP140A printer cable.$64.00 -
RJS 002-1425 AccessoryBattery Charger, 110V. Compatible with D4000, I-4000, or L-1000 bar code verifiers. Can be used with or without NiCad batteries.$72.00 -
RJS 002-7853 Spare PartsAuto Optic (3,5,10,20 mil) w/Plaque. NOT entire bar code verifier. Replacement part or add-on only which REQUIRES customer already has (Part# 002-7850) or (Part# 002-7851) or (Part# 002-7845).$1,576.00
Top Batteries Purchased With RJS 002-7847
-
RJS 002-0967 BatteryRechargeable Batteries (4). NiCad rechargeable batteries for the D4000, I-4000 and L-1000.$25.60 -
RJS 002-0964 BatteryRechargeable batteries, 4 pack.Please Call for Pricing or to Purchase
Top Best Barcode Scanner Purchased With RJS 002-7847
-
RJS 002-7859 Barcode ScannerRJS Inspector D4000 CR2 Laser Scanner, D4000/L1000. NOT entire bar code verifier. Replacement part or add-on only which REQUIRES customer already has (Part# 002-7850) or (Part# 002-7851) or (Part# 002-7845).$1,576.00
Top Cables, Connectors, and Adapters Purchased With RJS 002-7847
-
RJS 002-6773 AccessoryTP140A Verifier Cable. Replacement TP140 and TP140A printer cable.$64.00
-
RJS 002-6511 AccessoryVCIR Inspector Series PC Interface Software Kit RS232. For customers requiring printed inspection reports, printed scan reflectance profile charts, Excel spreadsheet job reports REQUIRES access to a PC computer with RS-232 Serial Port.$504.00 -
RJS 002-6514 AccessoryVCIR USB to RS-232 Serial Adapter. Adapter for the VCIR software if RS-232 serial port is not available on PC.$52.00
Top Docks and Cradles Purchased With RJS 002-7847
-
RJS 002-1425 AccessoryBattery Charger, 110V. Compatible with D4000, I-4000, or L-1000 bar code verifiers. Can be used with or without NiCad batteries.$72.00
-
RJS 002-5262 AccessoryStand, Tilt Handheld. Bent metal stand that attaches to the D4000/I-4000/L-1000 verifier body (display).$20.00
Top General Software Purchased With RJS 002-7847
-
RJS 002-6520 SoftwareVCIR Inspector Series PC Interface Software Kit USB. For customers requiring printed inspection reports, printed scan reflectance profile charts, Excel spreadsheet job reports REQUIRES access to a PC computer with USB port.In Stock$544.00
Top Laser Barcode Scanner Purchased With RJS 002-7847
-
RJS 002-7859 Barcode ScannerRJS Inspector D4000 CR2 Laser Scanner, D4000/L1000. NOT entire bar code verifier. Replacement part or add-on only which REQUIRES customer already has (Part# 002-7850) or (Part# 002-7851) or (Part# 002-7845).$1,576.00
Top Spare Parts Purchased With RJS 002-7847
-
RJS 002-7853 Spare PartsAuto Optic (3,5,10,20 mil) w/Plaque. NOT entire bar code verifier. Replacement part or add-on only which REQUIRES customer already has (Part# 002-7850) or (Part# 002-7851) or (Part# 002-7845).$1,576.00
-
RJS 002-7852 Spare PartsAuto Optic (3,6,10,20 mil) w/Plaque. NOT entire bar code verifier. Replacement part or add-on only which REQUIRES customer already has (Part# 002-7850) or (Part# 002-7851) or (Part# 002-7845).$1,576.00 -
RJS 002-7854 Spare PartsCR2 Laser Scanner, D4000/L1000$1,382.92
