REA JET VeriCube Barcode Verifier
REA JET VeriCube -

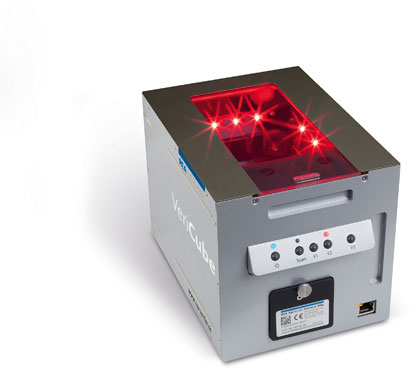

The REA VeriCube is a state-of-the-art matrix and barcode verification device which can be used across all industry sectors. Whether lying, standing or from top to bottom, virtually any test sample can be measured contact-free in the optimum measuring position
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$7,596.86
Get help from a Barcoding Expert!
Accessories For REA JET VeriCube Barcode Verifier
REA JET VeriCube Barcode Verifier Options
-
REA JET 030.035.001 Barcode Verifier
Pharma - without optical module$7,596.86 -
REA JET 030.035.000 Barcode Verifier
Standard - without optical module$7,596.86
REA JET VeriCube Barcode Verifier Model Overview
The REA VeriCube is a cutting-edge quality control device designed for the accurate verification of 2D matrix and barcodes across various industries. Its contact-free measurement system utilizes a high-resolution CMOS camera, ensuring precise readings under different conditions. With features like customizable camera modules and selectable illumination, the VeriCube optimizes print quality and improves the read rate of codes. Its compliance with ISO standards guarantees the reliability of measurement results, making it an essential tool for quality assurance in any production environment.
Key Features
- Contact-free measurements via a CMOS camera
- Easy exchangeable camera modules for different code sizes
- Select from various illumination options: red, white, UV, and IR light
- Operates in three positions: sidewise, upright, upside down
- Darkened measuring chamber to eliminate ambient light interference
- Verification compliant with ISO/IEC standards
- Multilingual user interface and customizable settings profiles
- Power supply via Power over Ethernet (PoE)
Specifications
- Focal length: 44 μm - 25 mm
- Field Of View: 114 x 71 mm - 9 x 6 mm
- Typical X-dimension: 0.46 mm - 0.09 mm
- Pixel Size: 31 μm - 3.6 μm
- Weight: 2.600 g
- Dimensions: 200 x 150 x 150 mm
- Compatible with: Windows 7, 8, and 10 (64-bit)
- Easy removable and exchangeable glass cover plate
