REA JET 030.035.001 Barcode Verifier

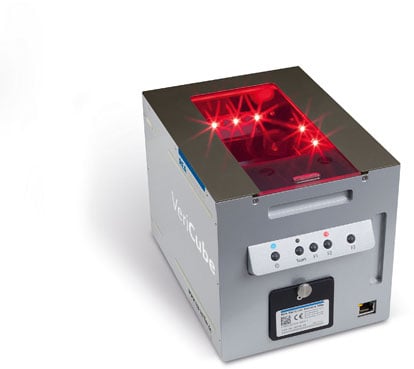

The REA VeriCube is a cutting-edge quality control device designed for the accurate verification of 2D matrix and barcodes across various industries. Its contact-free measurement system utilizes a high-resolution CMOS camera, ensuring precise readings under different conditions. With features like customizable camera modules and selectable illumination, the VeriCube optimizes print quality and improves the read rate of codes. Its compliance with ISO standards guarantees the reliability of measurement results, making it an essential tool for quality assurance in any production environment.

• Contact-free measurements via a CMOS camera
• Easy exchangeable camera modules for different code sizes
• Select from various illumination options: red, white, UV, and IR light
• Operates in three positions: sidewise, upright, upside down
• Darkened measuring chamber to eliminate ambient light interference
• Verification compliant with ISO/IEC standards
• Multilingual user interface and customizable settings profiles
• Power supply via Power over Ethernet (PoE)

• Focal length: 44 μm - 25 mm
• Field Of View: 114 x 71 mm - 9 x 6 mm
• Typical X-dimension: 0.46 mm - 0.09 mm
• Pixel Size: 31 μm - 3.6 μm
• Weight: 2.600 g
• Dimensions: 200 x 150 x 150 mm
• Compatible with: Windows 7, 8, and 10 (64-bit)
• Easy removable and exchangeable glass cover plate
