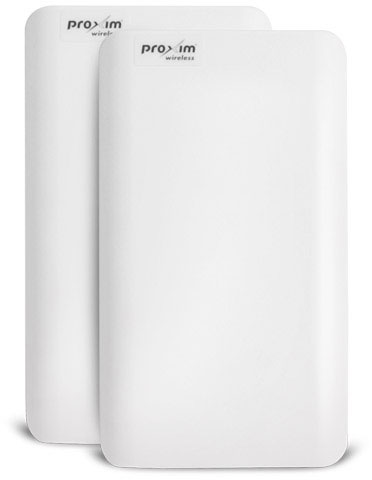

Proxim Wireless TSUNAMI QB-820 Point to Point Wireless
Proxim Wireless TSUNAMI QB-820 -
Proxim Wireless is a leader and an early innovator in wireless technology providing high-speed, long-range broadband wireless solutions. Proxim introduces the Tsunami Quickbridge 825 series, an incredibly cost-effective, non Line-of-Sight Point-to-Point (PtP) wireless backhaul solution. With this complete \Hop-in-a-Box\" solution delivering up to 100 Mbps throughput, deployments of all sizes will enjoy a quick return on investment. With excellent spectrum efficiency and a highly evolved prioritization platform tailored to deliver voice, video and data applications, Tsunami Quickbridge? 825 series satisfies carriers, wireless service providers and Government organizations with requirements for reliable cost optimized high performance wireless backhaul. Leveraging the advantages of OFDM and the latest MIMO radio innovations, Tsunami Quickbridge 825 series draws on Proxim's proprietary Wireless Outdoor Router Protocol (WORP) to deliver an unmatched outdoor wireless performance when compared to other products in the market today."
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$538.46
Get help from a Barcoding Expert!
Accessories For Proxim Wireless TSUNAMI QB-820 Point to Point Wireless
Proxim Wireless TSUNAMI QB-820 Point to Point Wireless Options
-
Proxim Wireless QB-825-50-100-UPG Point to Point Wireless
Tsunami QB-825 Link to 100 Mbps license upgrade$538.46 -
Proxim Wireless QB-825-LNK-100-US Point to Point Wireless
Tsunami QB-825 Link , 100 Mbps , MIMO 2x2, 15 dBi integrated antenna US PoE (Two QB-825-EPR-100-US)$1,452.77 -
Proxim Wireless QB-825-LNK-100-WD Point to Point Wireless
Tsunami QB-825 Link ,100 Mbps up, MIMO 2x2, 15 dBi integrated antenna- WD PoE (Two QB-825-EPR-100-WD)$1,668.15 -
Proxim Wireless QB-825-LNK-50+-WD Point to Point Wireless
Tsunami QB-825 Link , 50 Mbps (upgradable to 100 Mbps), MIMO 2x2, 15 dBi integrated antenna (Two QB-825-EPR-50+-WD)
Proxim Wireless TSUNAMI QB-820 Point to Point Wireless Model Overview
The Tsunami Quickbridge 825 series by Proxim is a cutting-edge Point-to-Point wireless backhaul solution designed for businesses and organizations seeking fast, reliable connectivity. With a compact design and non Line-of-Sight capabilities, this bundle delivers up to 100 Mbps throughput, making it an ideal choice for various deployments. Equipped with advanced features for voice, video, and data applications, the QuickbridgeⓇ 825 series ensures a swift return on investment while maintaining high performance in outdoor settings.
Key features:
Specifications:
Key features:
- Compact, IP67 rated metal enclosure offering durability and weather resistance.
- Supports 50 Mbps (upgradable to 100 Mbps) with a maximum data rate of 300 Mbps.
- Integrated 15 dBi antenna for optimal wireless performance.
- Advanced security protocols including AES-128 encryption.
- Complete "Hop-in-a-Box" solution for quick and easy installation.
Specifications:
- Product Models: QB-825-LNK-50, QB-825-LNK-100
- Interfaces: One auto MDI-X RJ45 10/100/1000 Mbps Ethernet with PoE in
- Wireless Protocol: WORP® (Wireless Outdoor Router Protocol)
- Frequency: 5.150 to 5.925 GHz
- TX Power: Up to 26 dBm
- Operating Temperature: -40° to 55°C
- Dimensions: Unpackaged: 4.96 x 8.62 x 2.58 in (126 x 219 x 65.5 mm)
- Weight: Unpackaged: 2.1 lbs (0.950 kg)
- MTBF: >350,000 hours
