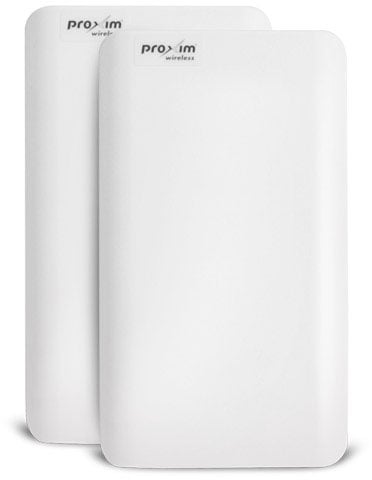

Proxim Wireless QB-825-LNK-100-WD Point to Point Wireless
Part Number:
QB-825-LNK-100-WD
Model:
TSUNAMI QB-820
Full specifications (PDF)
Proxim Wireless TSUNAMI QB-820 Point to Point Wireless Model Overview
The Tsunami Quickbridge 825 series by Proxim is a cutting-edge Point-to-Point wireless backhaul solution designed for businesses and organizations seeking fast, reliable connectivity. With a compact design and non Line-of-Sight capabilities, this bundle delivers up to 100 Mbps throughput, making it an ideal choice for various deployments. Equipped with advanced features for voice, video, and data applications, the QuickbridgeⓇ 825 series ensures a swift return on investment while maintaining high performance in outdoor settings.
Key features:
Specifications:
Key features:
- Compact, IP67 rated metal enclosure offering durability and weather resistance.
- Supports 50 Mbps (upgradable to 100 Mbps) with a maximum data rate of 300 Mbps.
- Integrated 15 dBi antenna for optimal wireless performance.
- Advanced security protocols including AES-128 encryption.
- Complete "Hop-in-a-Box" solution for quick and easy installation.
Specifications:
- Product Models: QB-825-LNK-50, QB-825-LNK-100
- Interfaces: One auto MDI-X RJ45 10/100/1000 Mbps Ethernet with PoE in
- Wireless Protocol: WORP® (Wireless Outdoor Router Protocol)
- Frequency: 5.150 to 5.925 GHz
- TX Power: Up to 26 dBm
- Operating Temperature: -40° to 55°C
- Dimensions: Unpackaged: 4.96 x 8.62 x 2.58 in (126 x 219 x 65.5 mm)
- Weight: Unpackaged: 2.1 lbs (0.950 kg)
- MTBF: >350,000 hours
Brand
Proxim Wireless
Model
TSUNAMI QB-820
