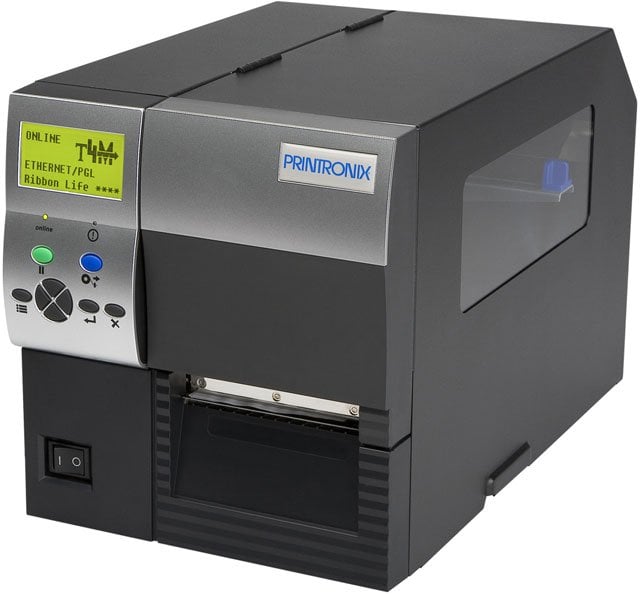

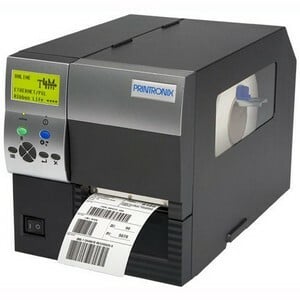

Printronix T4M – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: TT4M2-0100-00
Model: T4M
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printer Type
Industrial
Printing Technology
Thermal Transfer
Print Resolution
203 dpi
Max Print Width
5.25 inch

Product Description:

  Printronix T4M Thermal Label printer - Monochrome - 10 in/s Mono - 203 dpi - USB, Serial, Parallel

Printronix T4M Barcode Label Printer Model Overview

The T4M™ industrial thermal bar code printer combines rugged construction with advanced technology to deliver reliable performance for various applications such as distribution and manufacturing. Boasting twice the memory of competitors, this cost-effective solution offers seamless integration into existing workflows. The user-friendly graphical interface simplifies configuration and installation, ensuring even users with minimal technical expertise can operate it efficiently. Designed with future growth in mind, the T4M is RFID Ready and can be easily upgraded to meet evolving requirements.
Key features:
  • Enhanced memory: 32MB DRAM and 8MB Flash for improved performance.
  • User-friendly interface: Icon-driven navigation for easy setup.
  • Remote management: XML-based printing and print management capabilities.
  • RFID upgradeable: Supports Printronix's MP2™ technology for advanced encoding.
  • Multiple connectivity options: Includes USB, Serial, and optional Ethernet or wireless.

Specifications:
  • Dimensions: 11.75" W x 18.75" D x 12.125" H (298mm x 476mm x 308mm)
  • Weight: 33lbs (15kg)
  • Print Speed: 10 ips @ 203 dpi and 10 ips @ 305 dpi
  • Printable Width: Up to 4.1" (104mm)
  • Supported Media: Various types including paper, film, and synthetic labels
  • Print Methods: Thermal transfer and direct thermal
  • Environmental: Operates at 5°C to 40°C; 0% to 90% humidity
Printronix TT4M2-0100-00 Barcode Label Printer Overview

The T4M industrial and commercial thermal bar code printer delivers reliability and dependable performance with its rugged metal design. Based on its Printronix heritage, the T4M provides uncompromised performance and feature.

The T4M maximizes productivity and offers flexibility to grow with changing requirements. The user friendly graphical interface offers a unique icon menu driven navigation system for easy configuration and installation. This cost conscious thermal bar code printer provides the perfect printing solution for small and medium printing applications like distribution, shipping and receiving, product identification and manufacturing.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Australia Post
  • Aztec Code
  • BC412
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 35
  • Code 39
  • Code 93
  • Codabar
  • NW-7
  • Data Matrix
  • EAN/JAN-8
  • EAN/JAN-13
  • FIM
  • 125 German
  • Industrial 2 of 5
  • ITF-14
  • Matrix 25
  • Maxi Code
  • MSI
  • PDF-417
  • Planet Code
  • Plessey
  • PostBar
  • POSTNET
  • ROYALBAR
  • RSS-14
  • Telepen
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • UPC-E0
  • UPC-E1
  • UPCSHIP
  • UPS11
Application/Usage:
Desktop
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
32 MB
Memory Technology:
DRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Label
  • Film
  • Synthetic Media
  • Tag
  • Ticket Stock
Media Size:
Custom Size - 5"
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
5.15"
Maximum Label Length:
99"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
PGL
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
12.1"
Width:
11.8"
Depth:
18.8"
Weight (Approximate):
33.07 lb
Miscellaneous
Additional Information:
  • Snap-in and upgradeable printhead
  • Media Counter and Ribbon Life Indicator
  • Adjustable transmissive sensor with auto-calibration
  • Large graphic user interface and color coded user cues
  • XML enabled printing and XML based remote management via PXML
Platform Supported:
PC
Certifications & Standards:
  • FCC-B
  • ICES-003
  • EN 55022
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 60950
  • cMETus
  • CE
  • BSMI
  • CCC
  • C-Tick
  • GOST-R
  • MIC
  • Argentina S mark
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0807027573759
UPC: 807027573759
EAN: 0807027573759
UNSPSC: 43212108
