Printronix T53X4-0400-400 Barcode Label Printer

The Printronix T53X4-0400-400 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Printronix T5304 - Printronix ThermaLine T5304r Direct Thermal/Thermal Transfer Printer - Monochrome - Desktop - Label Print - Ethernet - USB - Serial - 4.10" Print Width - 8 in/s Mono - 300 dpi - Roll Paper, Fanfold, Label, Tag, Ticket, Film, Synthetic Media - 4.50" Label Width
Print Resolution
300 dpi
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Save time and money for your business by using one printer for all your employees
Read More
Discontinued Need Assistance?
Add to Quote
Printronix T5304 Barcode Label Printer Model Overview
The T5304 delivers dependable and reliable 4" wide barcode printing at 300 dpi for compliance labeling and accommodates higher density barcodes, increased graphics or smaller text with snap-in print heads. When used in conjunction with ODV technology (Online Data Validation), the T5304 provides verification of scannable barcodes at the point of label creation. Designed as RFID Smart Ready, the T5304 converts to an UHF RFID printer encoder as RFID requirements enter the supply chain. Combining barcode compliance and RFID technology the T5304 links barcode and EPC data together for storage, retrieval, electronic audits and data synchronization.

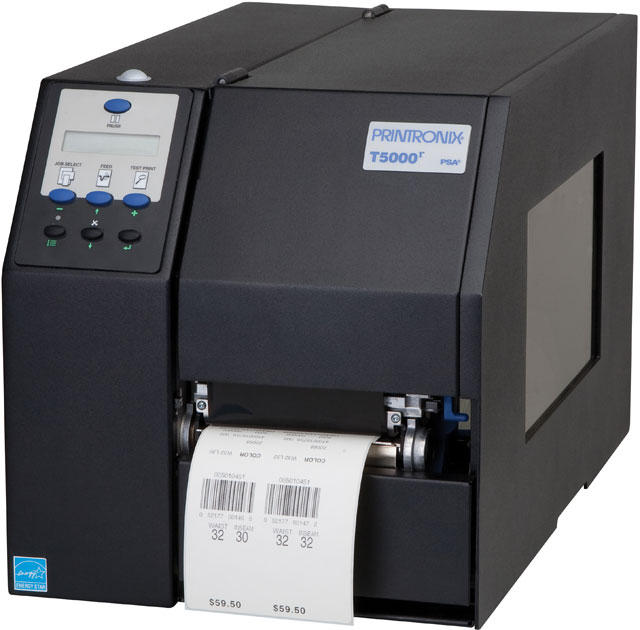

Printronix T53X4-0400-400 Barcode Label Printer Overview

T5000r ThermaLine thermal bar code printer combines reliability, utility, power and flexibility for demanding environments and provides the open migration to RFID for future requirements. The T5000r supports the widest range of connectivity and control without sacrificing performance and provides the ability to meet new application and compliance requirements. The T5000r is an ENERGY STAR qualified product. Products that earn the ENERGY STAR qualification prevent greenhouse gas emissions by meeting strict energy efficiency guidelines set by the U.S. Environmental Protection Agency and the U.S. Department of Energy.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Australia Post
  • Aztec Code
  • BC35
  • BC412
  • Codabar
  • Code 11
  • Code 35
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Data Matrix
  • EAN-8
  • EAN-13
  • FIM
  • 125 German
  • Interleaved 2 of 5
  • ITF-14
  • Matrix
  • Maxi Code
  • MSI
  • PDF-417
  • Planet Code
  • Plessey
  • POSTNET
  • PostBar
  • ROYALBAR
  • RSS-14
  • Telepen
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • UPC-E0
  • UPCSHIP
  • UPS11
Application/Usage:
Desktop
Memory
Standard Memory:
64 MB
Memory Technology:
DRAM
Flash Memory:
16 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Roll Paper
  • Fanfold
  • Label
  • Tag
  • Ticket
  • Film
  • Synthetic Media
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Label Core Size:
3"
Fonts & Emulation
Language Emulation:
  • PGL
  • ZGL
  • TGL
  • IGL
  • STGL
  • DGL
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
150 W
Physical Characteristics
Height:
13"
Width:
11.7"
Depth:
20.5"
Weight (Approximate):
37 lb
Miscellaneous
Platform Supported:
PC
Certifications & Standards:
  • IEC60950-2
  • EN55022 Class B
  • EN55024
  • EN61000-3-2
  • EN61000-3-3
  • FCC Part 15 Class B
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
ENERGY STAR
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Printronix T53X4-0400-400 Barcode Label Printer is also known as PTX-T53X4-0400-400
