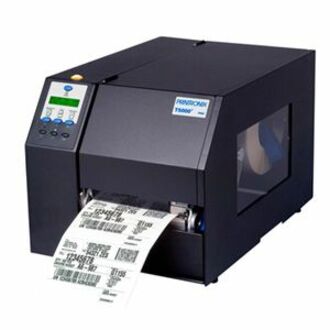

Printronix T5306-0101-000 Barcode Label Printer

The Printronix T5306-0101-000 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Printronix T5306 - Printronix T5306r Network Thermal Label Printer - Monochrome - 8 in/s Mono - 300 dpi - Serial, Parallel, USB - Fast Ethernet
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
USB
Print Resolution
300 dpi, 305 dpi
Max Print Width
6.75 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Printronix T5306 Barcode Label Printer Model Overview
The T5306 delivers dependable and reliable 6" wide barcode printing at 300 dpi for compliance labeling and accommodates higher density barcodes, increased graphics or smaller text with snap-in print heads. When used in conjunction with ODV technology (Online Data Validation), the T5306 provides verification of scannable barcodes at the point of label creation. Designed as RFID Smart Ready, the T5306 converts to an UHF RFID printer encoder as RFID requirements enter the supply chain. Combining barcode compliance and RFID technology the T5306 links barcode and EPC data together for storage, retrieval, electronic audits and data synchronization.
Printronix T5306-0101-000 Barcode Label Printer Overview

T5306r Label Printer, based on the world-class 5r Multi-Technology Platform, is web-enabled, industrial-grade thermal printer designed to operate in demanding manufacturing or distribution environments. T5306r Label Printer enable the roll out of bar code label printing.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
6.60"
Barcode Symbology Supported:
  • Australia Post
  • Aztec Code
  • BC35
  • BC412
  • Codabar
  • Code 11
  • Code 35
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Data Matrix
  • EAN-8
  • EAN-13
  • FIM
  • 125 German
  • Interleaved 2 of 5
  • ITF-14
  • Matrix
  • Maxi Code
  • MSI
  • PDF-417
  • Planet Code
  • Plessey
  • POSTNET
  • PostBar
  • ROYALBAR
  • RSS-14
  • Telepen
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • UPC-E0
  • UPCSHIP
  • UPS11
Memory
Standard Memory:
32 MB
Memory Technology:
DRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Roll Paper
  • Fanfold
  • Label
  • Tag
  • Ticket
  • Film
  • Synthetic Media
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Label Core Size:
3"
Fonts & Emulation
Language Emulation:
  • PGL
  • ZGL
  • TGL
  • IGL
  • STGL
  • DGL
  • XML
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13"
Width:
13.4"
Depth:
20.5"
Miscellaneous
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Printronix T5306-0101-000 Barcode Label Printer is also known as PTX-T5306-0101-000
