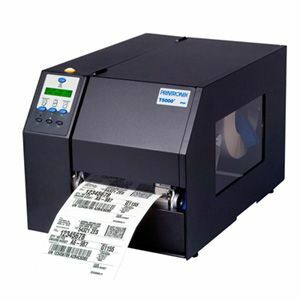

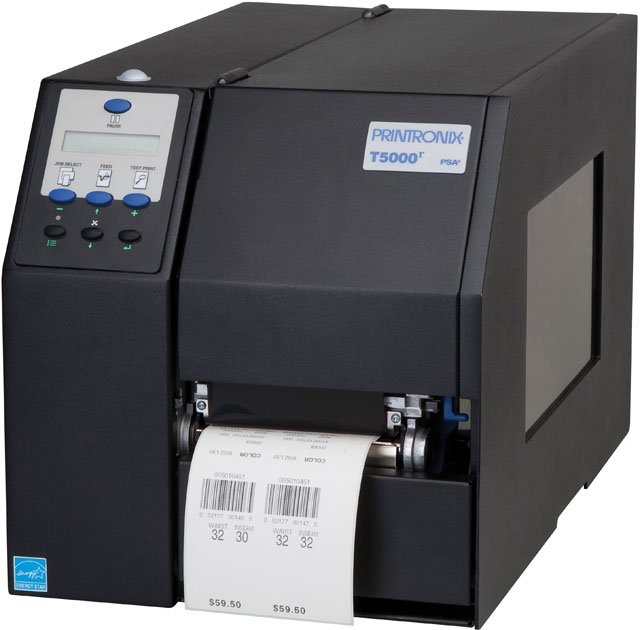

Printronix T5204 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: T5204-0101-010
Model: T5204

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
USB
Print Resolution
203 dpi

Product Description:

  Printronix T5204r Network Thermal Label Printer - Monochrome - 10 in/s Mono - 203 dpi - Serial, Parallel, USB - Ethernet

Printronix T5204 Barcode Label Printer Model Overview

The T5204 delivers dependable and reliable 4" wide barcode printing at 203 dpi for compliance labeling and accommodates higher density barcodes, increased graphics or smaller text with snap-in print heads. When used in conjunction with ODV technology (Online Data Validation), the T5204 provides verification of scannable barcodes at the point of label creation. Designed as RFID Smart Ready, the T5204 converts to an UHF RFID printer encoder as RFID requirements enter the supply chain. Combining barcode compliance and RFID technology the T5204 links barcode and EPC data together for storage, retrieval, electronic audits and data synchronization.
Printronix T5204-0101-010 Barcode Label Printer Overview

T5204r combines reliability, utility, power and flexibility for demanding environments and provides the open migration to RFID for future requirements. The T5204r supports the widest range of connectivity and control without sacrificing performance and provides the ability to meet new application and compliance requirements.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Australia Post
  • Aztec Code
  • BC35
  • BC412
  • Codabar
  • Code 11
  • Code 35
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Data Matrix
  • EAN-8
  • EAN-13
  • FIM
  • 125 German
  • Interleaved 2 of 5
  • ITF-14
  • Matrix
  • Maxi Code
  • MSI
  • PDF-417
  • Planet Code
  • Plessey
  • POSTNET
  • PostBar
  • ROYALBAR
  • RSS-14
  • Telepen
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • UPC-E0
  • UPCSHIP
  • UPS11
Memory
Standard Memory:
32 MB
Memory Technology:
DRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Roll Paper
  • Fanfold
  • Label
  • Tag
  • Ticket
  • Film
  • Synthetic Media
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Label Core Size:
3"
Fonts & Emulation
Language Emulation:
  • PGL
  • ZGL
  • TGL
  • IGL
  • STGL
  • DGL
  • XML
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13"
Width:
11.7"
Depth:
20.5"
Miscellaneous
Additional Information:

Online Data Validation

Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
