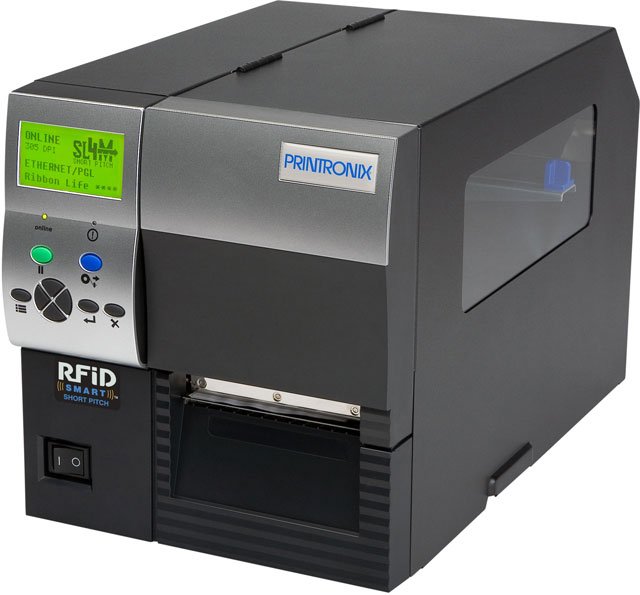

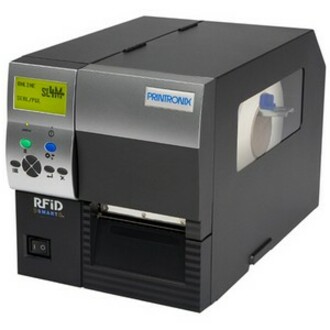

Printronix SL4M2-1101-00 RFID Printer

Part Number: SL4M2-1101-00
Model: SL4M
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Interface Options
Ethernet
Print Resolution
203 dpi

Product Description:

  Printronix SL4M RFID Printer - Monochrome - 10 in/s Mono - 203 dpi - Parallel, USB, Serial - Fast Ethernet
Explore all Printronix SL4M RFID Printers
Add to Quote
Printronix SL4M2-1101-00 RFID Printer
Printronix SL4M2-1101-00 RFID Printer
Printronix SL4M2-1101-00 RFID Printer
Printronix SL4M2-1101-00 RFID Printer Printronix SL4M2-1101-00 RFID Printer Printronix SL4M2-1101-00 RFID Printer
Full specifications (PDF)

Printronix SL4M RFID Printer Model Overview

The Printronix SL4M RFID Printer is crafted to deliver unparalleled performance and reliability at an economical price point. Ideal for industrial and commercial applications, this smart label printer encoder harnesses the advanced MP2 technology, ensuring consistent encoding rates and robust support for Gen 2 RFID tags. Its user-friendly graphical interface simplifies configuration and installation, making it a favorite choice among retailers and manufacturers seeking to optimize their supply chains with efficient RFID solutions.


Key Features
  • Economical price-performance ratio for enhanced value.
  • User-friendly graphical interface for easy operation.
  • EPCglobal Gen 2 Certified hardware for reliable performance.
  • 99.8% RFID encoding rates as confirmed by end users.
  • Support for a wide range of Class 1 Gen 2 UHF tags.

Specifications
  • Memory: 32MB DRAM, 8MB FLASH
  • Print Speed: 10 ips @ 203 dpi; 10 ips @ 305 dpi
  • Printing Methods: Thermal transfer or direct thermal
  • Resolution: 203 dpi (8/dpmm), optional 305 dpi (12/dpmm)
  • Printable Width: Up to 4.1" (104mm)
  • Dimensions: 11.75" W x 18.75" D x 12.125" H
  • Weight: 34 lbs (15.4 kg)
  • Operating Temperature: 5°C to 40°C
  • Humidity: 0% to 90% non-condensing
Printronix SL4M2-1101-00 RFID Printer Overview

The SL4M RFID Printer is the price performance leader for industrial and commercial applications. As part of the growing Printronix SmartLine series, the SL4M is perfect for businesses seeking the most economical solution for developing an RFID enabled supply chain. The SL4M represents a safe and cost effective UHF RFID smart label printer encoder from the leaders of UHF printer encoders.

Full specifications (PDF)
Technical Information
Recommended Use:
RFID Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Australia Post
  • Aztec Code
  • BC412
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 35
  • Code 39
  • Code 93
  • Codabar
  • NW-7
  • Data Matrix
  • EAN/JAN-13
  • EAN/JAN-8
  • FIM
  • German Post Code
  • Industrial 2 of 5
  • ITF-14
  • Matrix 25
  • Maxi Code
  • MSI
  • PDF-417
  • Planet Code
  • Plessey
  • PostBar
  • POSTNET
  • ROYALBAR
  • RSS-14
  • Telepen
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • UPC-E0
  • UPC-E1
  • UPCSHIP
  • UPS11
Memory
Standard Memory:
32 MB
Memory Technology:
DRAM
Flash Memory:
8 MB
RFID
Minimum Operating Frequency:
868 MHz
Maximum Operating Frequency:
956 MHz
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
RFID:
Yes
Media Types & Handling
Media Type:
  • Film
  • Thermal Transfer Label
  • Direct Thermal Label
  • Synthetic Media
  • Label
  • Tag
  • Ticket Stock
  • Fanfold
  • Roll Paper
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Length:
99"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • PGL
  • DGL
  • TGL
  • ZGL
  • STGL
  • IGL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
12.1"
Width:
11.8"
Depth:
18.8"
Miscellaneous
Additional Information:
  • Auto-Calibration
  • Reflective Sensor
  • Printer Install Wizard
  • Color Coded User Cues
  • Rugged Metal Construction
  • Large Graphic User Interface
  • Adjustable Transmissive Sensor
Platform Supported:
PC
Certifications & Standards:
  • RFID Standard: Class 1, GEN2
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
