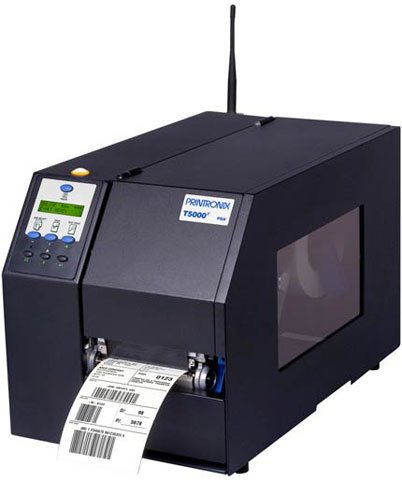

Printronix T5308 – Barcode Label Printer – 300 dpi, 305 dpi – Thermal Transfer

Part Number: 199399-001
Model: T5308

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi

Product Description:

  Printronix T5308r Thermal Label Printer - Monochrome - 6 in/s Mono - 300 dpi - Serial, Parallel, USB

Printronix T5308 Barcode Label Printer Model Overview

The T5308 delivers dependable and reliable 8" wide barcode printing at 300 dpi for compliance labeling and accommodates higher density barcodes, increased graphics or smaller text with snap-in print heads. When used in conjunction with ODV technology (Online Data Validation), the T5308 provides verification of scannable barcodes at the point of label creation. Designed as RFID Smart Ready, the T5308 converts to an UHF RFID printer encoder as RFID requirements enter the supply chain. Combining barcode compliance and RFID technology the T5308 links barcode and EPC data together for storage, retrieval, electronic audits and data synchronization.
Printronix 199399-001 Barcode Label Printer Overview

T5308r thermal bar code printers, based on the world-class 5r Multi-Technology Platform, are web-enabled, industrial-grade thermal printers designed to operate in demanding manufacturing or distribution environments.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
8.50"
Barcode Symbology Supported:
  • Australia Post
  • Aztec Code
  • BC35
  • BC412
  • Codabar
  • Code 11
  • Code 35
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Data Matrix
  • EAN-8
  • EAN-13
  • FIM
  • 125 German
  • Interleaved 2 of 5
  • ITF-14
  • Matrix
  • Maxi Code
  • MSI
  • PDF-417
  • Planet Code
  • Plessey
  • POSTNET
  • PostBar
  • ROYALBAR
  • RSS-14
  • Telepen
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • UPC-E0
  • UPCSHIP
  • UPS11
Memory
Standard Memory:
32 MB
Memory Technology:
DRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Roll Paper
  • Fanfold
  • Ticket
  • Film
  • Synthetic Media
  • Direct Thermal Paper
  • Thermal Transfer Label
Media Size:
  • 3" x Roll Paper
  • 8.75" x Roll Paper
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
8.75"
Label Core Size:
3"
Fonts & Emulation
Language Emulation:
  • PGL
  • ZGL
  • TGL
  • IGL
  • STGL
  • DGL
  • XML
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13"
Width:
15.4"
Miscellaneous
Additional Information:
  • Online Data Validation(ODV)

Sensing Methods:

  • Reflective
  • Transmissive
Platform Supported:
PC
Certifications & Standards:
  • FCC-B
  • UL
  • CSA
  • ETSI EN 300 220
  • CE
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
