Printronix 199395-001 Barcode Label Printer

The Printronix 199395-001 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Printronix T5304 - Printronix ThermaLine T5204r Network Label Printer - Monochrome - 10 in/s Mono - 203 dpi - Serial, Parallel, USB

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Ethernet

Print Resolution

203 dpi, 305 dpi

Max Print Width

4.5 inch

Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
The printer is capable of printing sharp and detailed monochrome documents quickly
Save time and money for your business by using one printer for all your employees

Need a different version? See all Printronix T5304 Barcode Label Printers

Discontinued Need Assistance?

Add to Quote

Printronix 199395-001 Barcode Label Printer

Overview

Full specifications (PDF)

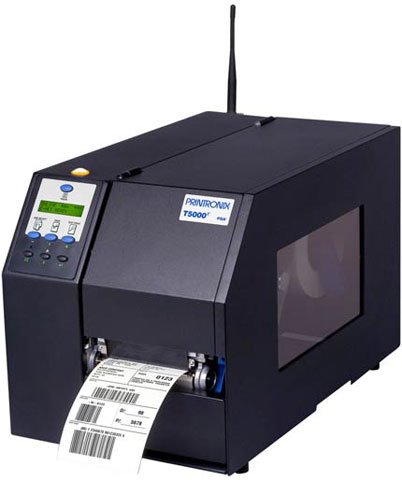

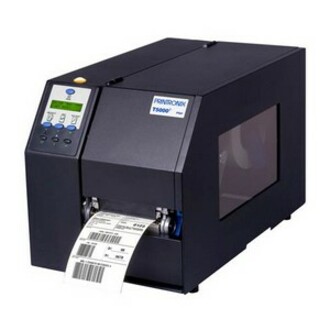

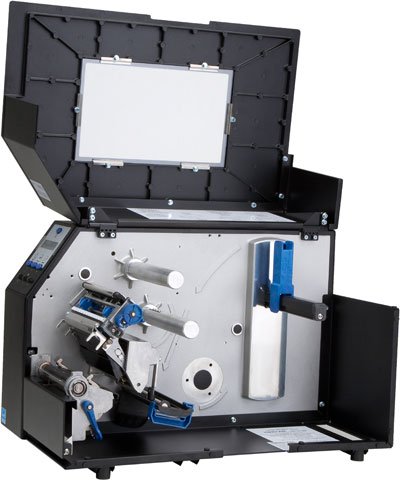

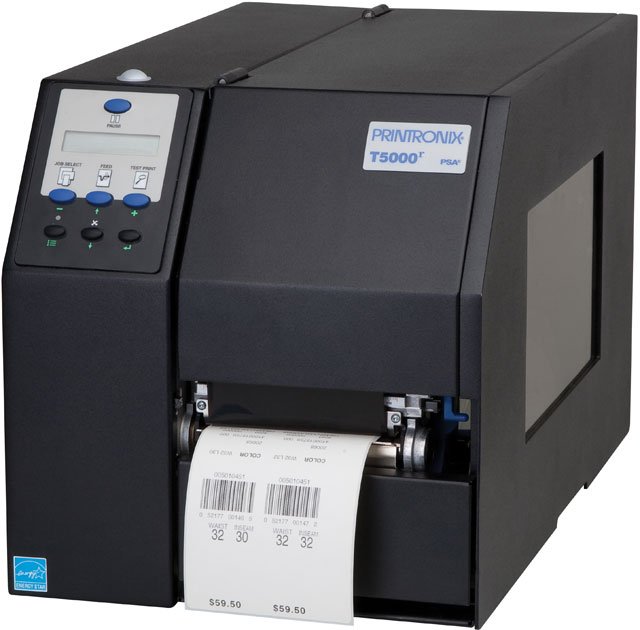

Printronix T5304 Barcode Label Printer Model Overview

The T5304 delivers dependable and reliable 4" wide barcode printing at 300 dpi for compliance labeling and accommodates higher density barcodes, increased graphics or smaller text with snap-in print heads. When used in conjunction with ODV technology (Online Data Validation), the T5304 provides verification of scannable barcodes at the point of label creation. Designed as RFID Smart Ready, the T5304 converts to an UHF RFID printer encoder as RFID requirements enter the supply chain. Combining barcode compliance and RFID technology the T5304 links barcode and EPC data together for storage, retrieval, electronic audits and data synchronization.

Printronix 199395-001 Barcode Label Printer Overview

T5204r Label Printer, based on the world-class 5r Multi-Technology Platform, are web-enabled, industrial-grade thermal printer designed to operate in demanding manufacturing or distribution environments. T5204r Label Printer enable the rollout of bar code label printing.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

10 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.10"

Barcode Symbology Supported:

Australia Post
Aztec Code
BC35
BC412
Codabar
Code 11
Code 35
Code 39
Code 93
Code 128-A
Code 128-B
Code 128-C
Data Matrix
EAN-8
EAN-13
FIM
125 German
Interleaved 2 of 5
ITF-14
Matrix
Maxi Code
MSI
PDF-417
Planet Code
Plessey
POSTNET
PostBar
ROYALBAR
RSS-14
Telepen
UCC/EAN 128
UPC-A
UPC-E
UPC-E0
UPCSHIP
UPS11

Memory

Standard Memory:

32 MB

Memory Technology:

DRAM

Flash Memory:

8 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Media Types & Handling

Media Type:

Roll Paper
Fanfold
Label
Tag
Ticket
Film
Synthetic Media

Media Size:

Custom Size

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Maximum Roll Diameter:

Maximum Label Width:

4.50"

Label Core Size:

Fonts & Emulation

Language Emulation:

PGL
ZGL
TGL
IGL
STGL
DGL

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

13"

Width:

11.7"

Depth:

20.5"

Miscellaneous

Additional Information:

Online Data Validation
Media Width: 1.0" to 4.5"

Platform Supported:

Certifications & Standards:

FCC-B
UL
CSA
ETSI EN 300 220
CE

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108

Q&A

Get help from a Barcoding Expert!

The Printronix 199395-001 Barcode Label Printer is also known as PTX-199395-001
