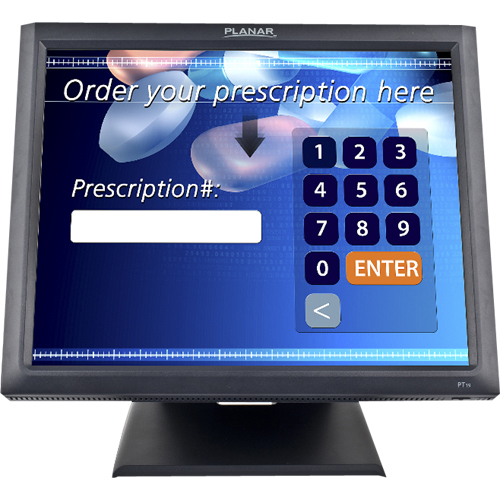

Planar 997-5971-00 Touchscreen

Planar 997-5971-01 POS System A newer version of this item is available.
It is replaced by the Planar 997-5971-01 POS System.
Planar PT1945 - Planar PT1945R 19" LCD Touchscreen Monitor - 5 ms - 19" Class - 5-wire Resistive - 1280 x 1024 - SXGA - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 250 Nit - Speakers - USB - VGA - Black - RoHS - 3 Year
  • The SXGA lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
  • 5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers
  • The SXGA touchscreen highlights SXGA display with the resolution of up to 1280 x 1024 pixels
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
Read More

Need a different version? See all Planar PT1945 Touchscreens

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Planar 997-5971-00 Touchscreen
Planar 997-5971-00 Touchscreen Planar 997-5971-00 Touchscreen
Planar 997-5971-00 Touchscreen
Planar 997-5971-00 Touchscreen
Planar PT1945 Touchscreen Model Overview
Easily integrated with a variety of POS, thin client or PC systems, the cost-effective PT1945 touchscreens features a 5-wire resistive or surface wave acoustic touch with dual RS-232/USB interface, an internal power supply and a deskstand with -5 to 90 degree tilt range. No drivers are needed for basic touchscreen operation, but for advanced features, drivers are quickly and easily loaded.
Planar 997-5971-00 Touchscreen Overview

Easily integrated with a variety of POS, thin client or PC systems, the cost-effective PT1945R touchscreen features a 5-wire resistive touch screen with dual RS-232/USB interface, an internal power supply and a desk stand with -5 to 90° tilt range. No drivers are needed for basic touchscreen operation, but for advanced features, drivers are quickly and easily loaded.

Technical Information
Screen Size Class:
19"
Viewable Screen Size:
19"
Screen Mode:
SXGA
Screen Surface:
Anti-glare
Pixel Pitch:
11.6 mil
Response Time:
5 ms
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Adjustable Display Angle:
Yes
Mount Type:
  • Wall Mountable
  • Arm-mountable
Features:
Security Lock
Horizontal Frequency:
80 kHz
Video
Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
25 W
Standby Power Consumption:
3.99 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
Black
Height:
15.4"
Width:
17"
Depth:
8.6"
Weight (Approximate):
15.10 lb
Miscellaneous
Package Contents:
  • PT1945R Touchscreen LCD Monitor
  • Power Cord
  • VGA Cable
  • RS-232 Cable
  • USB Cable (A to B)
  • Audio-in Cable
  • Driver CD
  • User's Guide
  • Quick Start Guide
Certifications & Standards:
  • UL/c-UL
  • FCC-Class B
  • TUV-T mark
  • CE
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0012300309783, 0723064284246, 0810689059714, 4943793106312
UPC: 012300309783, 155180819772, 723064284246, 810689059714
EAN: 0012300309783, 0723064284246, 0810689059714, 4943793106312
UNSPSC: 43211903
