Planar 997-5971-01 POS System

Planar - 19 IN BLACK POINT OF SALE MONITOR, HID COMPLIANT 5-WIRE RESISTIVE TOUCH SXGA LED LCD, VGA, HDMI, DP INPUTS, SPEAKERS, 90 DEGREE TILT.
  • Edge LED backlighting technology enabled for a bright and sharp display
  • Furnishes captivating visuals with about 250 Nit brightness levels
  • 5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers
  • Features HDMI input to get connected with the top of the line PCs, Blu-ray players, and cutting edge gaming consoles
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More

Need a different version? See all Planar Parts Accessories

$479.00
In Stock
Add to Quote
Add to My Shopping List Add to Compare
Planar 997-5971-01 POS System
Planar 997-5971-01 POS System Planar 997-5971-01 POS System Planar 997-5971-01 POS System
Planar 997-5971-01 POS System
Planar 997-5971-01 POS System
Planar 997-5971-01 POS System
Planar Parts Accessory Model Overview
Products and parts from Planar.
Planar 997-5971-01 POS System Overview

The Planar® PT1945R 19" touch screen Point of Sale (POS) monitor is perfect for use in retail, point-of-sale, government, education, healthcare, and kiosk applications. The upgraded, cost-effective monitor now comes with HDMI and DisplayPort input connectivity.

Planar PT1945R

Easily integrated with a variety of POS, thin client or PC systems, the monitor features 5-wire resistive touch screen with USB touch screen interface, an internal power supply, speakers, and a designed touch enclosure. No drivers are needed for basic touch screen operation, but for advanced features, drivers are quickly loaded using the easy to follow, step-by-step instructions.

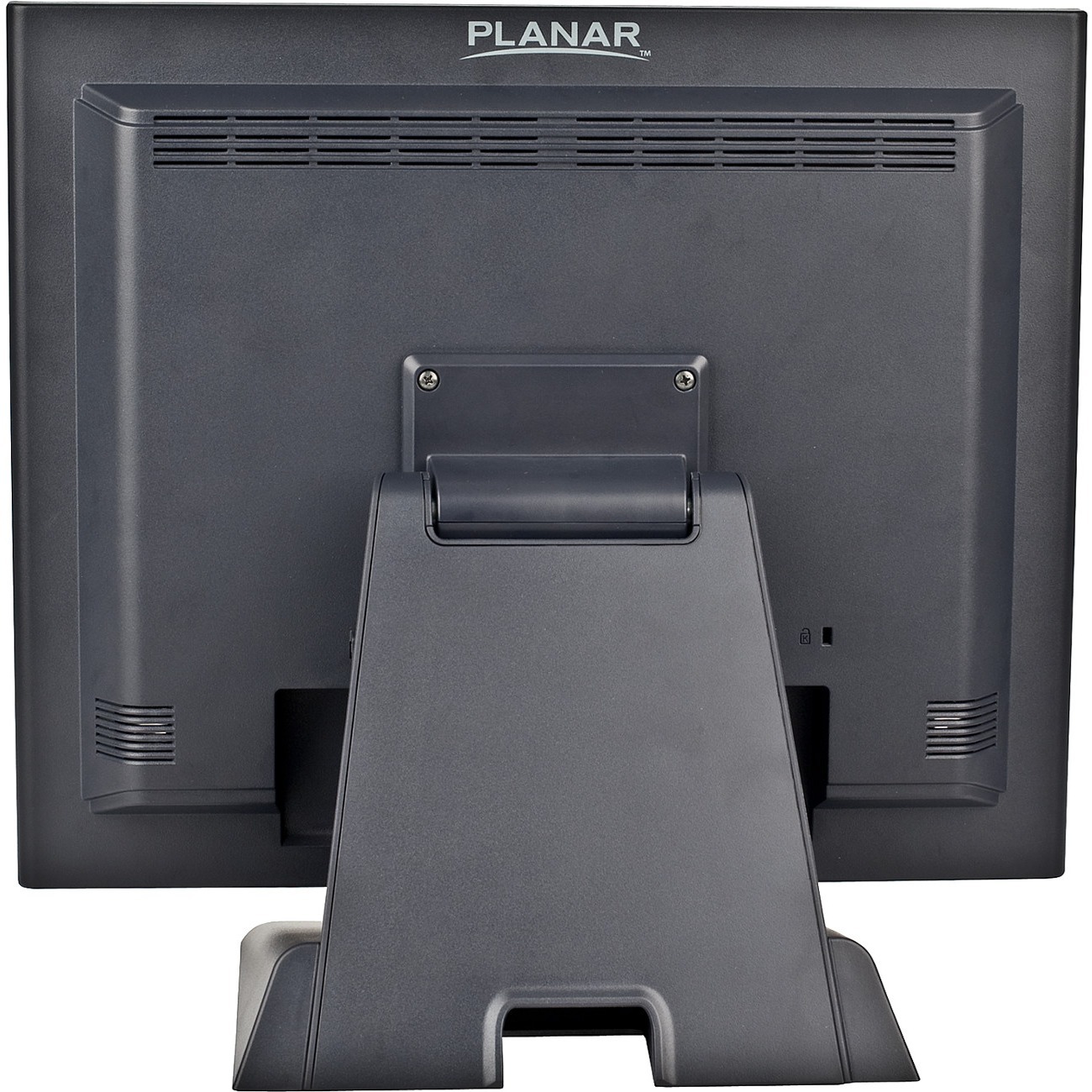

The Planar PT1945R monitor comes standard with a deskstand capable of -5 to 90° tilt range and is compatible with other mounting options using the 100mm VESA standard hole pattern on the back of the monitor.

Technical Information
Screen Size Class:
19"
Viewable Screen Size:
19"
Screen Mode:
SXGA
Response Time:
5 ms
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Backlight Technology:
Edge LED
Features:
  • Anti-glare
  • On-screen Display (OSD)
  • Security Lock
  • Cable Lock Slot
Vertical Frequency:
56 Hz to 75 Hz
Stand Adjustments:
Tilt
Video
Maximum Resolution:
1280 x 1024
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen Type:
5-wire Resistive
Number of Simultaneous Touchpoints:
1
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
DisplayPort:
Yes
Number of HDMI Inputs:
1
Number of USB Ports:
1
Number of DisplayPorts:
1
Power Description
Operating Power Consumption:
25 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color:
Black
Height:
14"
Width:
17"
Depth:
2.3"
Height with Stand:
15.40"
Width with Stand:
17"
Depth with Stand:
8.60"
Weight (Approximate):
9.70 lb
Weight with Stand (Approximate):
14.60 lb
Miscellaneous
Package Contents:
  • 19" Touch Screen Point of Sale Monitor
  • Power Cord
  • VGA Cable
  • Audio Cable
  • USB Cable (A to B)
  • HDMI Cable
  • User's Guide
  • Quick Start Guide
  • Cable Cover
  • Screw
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0810689009825
UPC: 810689009825
EAN: 0810689009825
UNSPSC: 43211903
