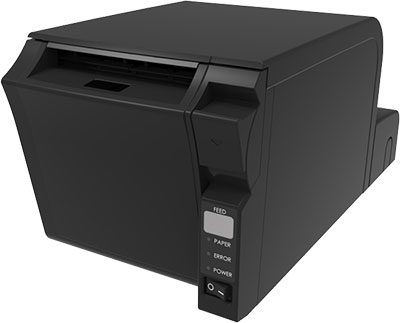

Pioneer STEP-5e Receipt Printer
Pioneer STEP-5e -
The STEP-5e offers an outstanding value and speed in the retail and hospitality environments. It prints up to 300 mm/second, and has an autocutter life of 2 million cuts to meet the high-volume printing application. In addition to text and attention-grabbing logos, the STEP-5e prints QR codes that can be scanned by a smartphone and linked to a promotional website, a survey site, or digital coupons.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$222.98
Item on backorder — chat for lead time
Accessories For Pioneer STEP-5e Receipt Printer
Pioneer STEP-5e Receipt Printer Options
-
Pioneer CB10010012 Receipt Printer
PIONEERPOS, STEP-5E, USB+SERIAL, BLACK, USB CABLE, SERIAL CABLE, PSU+CORD, COVER, RECOMMENDED REPLACEMENT FOR PART #C31CB10722Item on backorder — chat for lead time$222.98
Pioneer STEP-5e Receipt Printer Model Overview
The STEP-5e thermal printer is a high-performance solution designed for retail and hospitality environments. With lightning-fast printing speeds of up to 300 mm/second, it ensures efficient transaction processes. This durable printer features a robust autocutter with a lifespan of 2 million cuts, making it ideal for high-volume applications. Connectivity options including USB, Ethernet, and wireless interfaces provide versatile integration for modern point-of-sale systems. Support for printing promotional QR codes adds an innovative touch, allowing easy customer engagement.
Key Features
Specifications
Key Features
- Incredible print speed: Up to 300 mm/sec
- High durability: Autocutter life of 2 million cuts
- Versatile connectivity: USB, WiFi, and Bluetooth options
- Compact design: Mountable under the counter
- Dust and splash resistant: Enhanced reliability in various environments
Specifications
- Print Method: Direct thermal printing
- Print Speed: Max. 300 mm/sec (11.8 inches/sec)
- Interfaces: USB, Serial, WiFi (802.11), Bluetooth, Parallel
- Driver Compatibility: ESC/POS, OPOS, Windows, Linux
- Autocutter: Partial cut
- Paper Width: 80mm (3.14"), 58mm (2.28")
- Paper Roll Diameter: Max. 83mm (3.27")
- Paper Thickness: 55-80 μm
- Print Density: 203x203 dpi
- Font Sizes: Font A: 12x24 dots, Font B: 9x17 dots
- Character Set: 95 Alphanumeric, Japanese, Simplified/Traditional Chinese
- Barcodes Supported: Various 1D and 2D formats
- Power Consumption: 24 VDC ± 7%, 1.8A
- Dimensions: 125 x 192.72 x 115 mm (4.921x7.588x4.528 inches)
- Weight: 1.8 kg (3.97 lbs)
- Color Options: Black, Silver
- Safety Standards: FCC-A, CE, UL, VCCI-A, CCC
