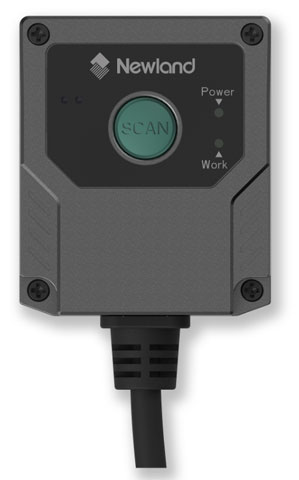

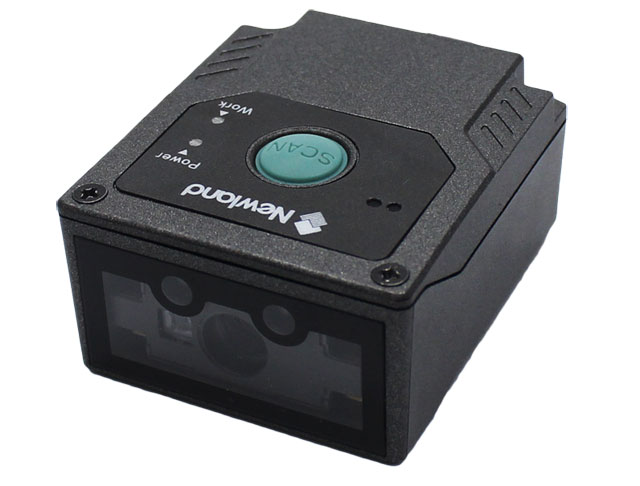

Newland FM430 Fixed Barcode Scanner
Newland FM430 -
An IR sensor and a light sensor are used to activate the scanner, scan barcodes as they are shown, and boost throughput and productivity. The sensor in the NLS-FM430 automatically modifies the additional illumination time based on the light reflected off the barcode. An IP54-rated environmental seal guards against dust, moisture, and other contaminants for the NLS-FM430. The fifth-generation UIMG technology from Newland enables the NLS-FM430 to read high-volume 1D and 2D barcodes on displays wrapped in protective film. The NLS-FM430 sports a laser-generated crosshair aiming pattern that is bright and clear even in direct sunlight to assure accurate aim on the first try.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$207.65
Get help from a Barcoding Expert!
Accessories For Newland FM430 Fixed Barcode Scanner
Scanner Capability
- 2D (1)
Newland FM430 Fixed Barcode Scanner Options
-
Newland NLS-FM430L-U Fixed Barcode Scanner
Fixed Scanners, Newland FM430, 2D Megapixel Fixed Mount Scanner, 2-IR Sensors, Advanced Data Formatting, White Illumination, Laser Aiming, Trigger Button, 2m USB cable$247.73 -
Newland NLS-FM430-15 Fixed Barcode Scanner
Fixed Scanners, Newland FM430, 2D Megapixel Fixed Mount Scanner, 2-IR Sensors, Advanced Data Formatting, White Illumination, Green Bar Aiming, Trigger Button, 150cm Direct USB cable$278.79 -
Newland NLS-FM430L-15 Fixed Barcode Scanner
Fixed Scanners, Newland FM430, 2D Megapixel Fixed Mount Scanner, 2-IR Sensors, Advanced, Data Formatting, White Illumination, Laser Aiming, Trigger Button, 150cm Direct USB cable$278.79 -
Newland NLS-FM430-U Fixed Barcode Scanner
Fixed Scanners, Newland FM430, 2D Megapixel Fixed Mount Scanner, 2-IR Sensors, Advanced Data Formatting, White Illumination, Green Bar Aiming, Trigger Button, 2m USB cable -
Newland NLS-FM430-00 Fixed Barcode Scanner
Fixed Scanners, Newland FM430, 2D Megapixel Fixed Mount Scanner, 2-IR Sensors, Advanced Data Formatting, White Illumination, Green Bar Aiming, Trigger Button, 50cm Direct USB cable
Newland FM430 Fixed Barcode Scanner Model Overview
The NLS-FM430 Fixed Mount Barcode Scanner from Newland AIDC is designed to streamline your scanning needs with exceptional performance. Equipped with advanced UIMG® technology, it effortlessly captures 1D and 2D barcodes, even those under protective films. The scanner's robust IP54-sealed housing ensures durability against dust and moisture, and its highly visible laser aimer guarantees precise targeting in any lighting condition. Whether you’re automating your checkout processes or managing inventory, the NLS-FM430 enhances efficiency and accuracy, making your workflow smoother than ever.
Key features:
Specifications:
Key features:
- IR/Light Triggers: Improved sensitivity for faster scanning.
- Automatic Exposure Control (AEC): Adapts to varying light conditions.
- Unmatched Reading Performance: Reads protected 2D barcodes effortlessly.
- 1.5m Drop Resistance: Built to withstand drops for added durability.
Specifications:
- Performance:
- Resolution: 1280*800 CMOS
- Scan Angle: Horizontal 51°, Vertical 32°
- Operating Voltage: 5VDC±5%
- Physical:
- Dimensions: 41.5(W)x49.5(D)×24.3(H)mm
- Weight: 56g
- Environmental:
- Operating Temperature: -20°C to 60°C
- Humidity: 5% to 95% (non-condensing)
- Sealing: IP54 rated
