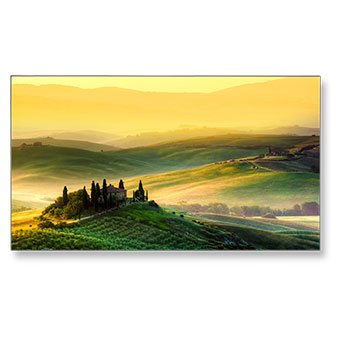

NEC X555UNS-TMX9P Digital Signage Display

The NEC X555UNS-TMX9P Digital Signage Display has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

NEC X-Series - NEC Display 55" Ultra Narrow Bezel S-IPS TileMatrix Video Wall Solution - 55" LCD - 1920 x 1080 - Direct LED - 700 Nit - 1080p - HDMI - DVI - SerialEthernet

Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
55" NEC Display Signage Display - Ideal for showing different types of advertisements and content
Experience luminescent visual images with LCD display
Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
Direct LED backlighting technology enabled for a bright and sharp display
Engages your customers and makes their viewing experience breathtaking with its 1080p content

Need a different version? See all NEC X-Series Digital Signage Displays

Discontinued Need Assistance?

Add to Quote

NEC X555UNS-TMX9P Digital Signage Display

Overview

Full specifications (PDF)

NEC X-Series Digital Signage Display Model Overview

Transform your video walls with the immaculate high definition of the X-Series. Direct LED backlighting reduces power consumption and improves edge-to-edge brightness uniformity. Mere millimeters separate content from display to display which ensures a smooth transition across a video wall. This display is ideal for digital signage, boardrooms, entrance lobbies and broadcast applications, and can be deployed in video wall applications up to 10 x 10 in size utilizing integrated TileMatrix technology.

NEC X555UNS-TMX9P Digital Signage Display Overview

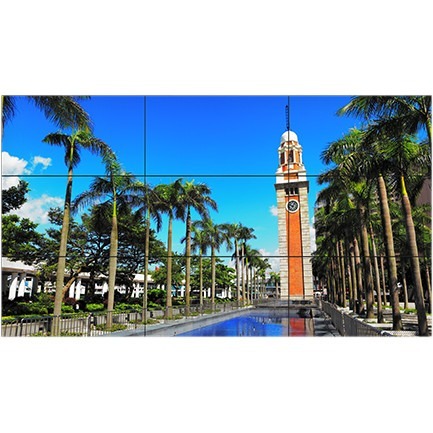

NEC's complete 55" 3x3 LCD TileMatrix™ Digital Video Wall Solution delivers an all-in-one, easy-to-configure and cost-effective solution that is ideal for dynamic digital signage, information display and command & control applications. Exclusive TileMatrix and TileComp™ technologies, combined with the ultra-narrow bezel design of the NEC X555UNS and the full adjustment capabilities of the Peerless DS-VW765-LAND mount, provide for a near seamless video wall without the need for additional third-party equipment.

Detailed Specs

Full specifications (PDF)

Technical Information

Features:

Super In-plane Switching (S-IPS) Technology
TileMatrix Support
Video Wall
Progressive Scan
Landscape/Portrait Viewable
Daisy Chain
Carbon Footprint Meter
Plug and Play
Schedule
Screen Saver
Ambient Light Sensor
Human Sensor
Open Pluggable Specification (OPS)
Picture on Picture
Side by Side
Near Field Communication (NFC)

Display & Graphics

Screen Size:

55"

Display Screen Type:

LCD

Display Resolution:

1920 x 1080

Response Time:

12 ms

Aspect Ratio:

16:9

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Backlight Technology:

Direct LED

HDCP Supported:

Yes

Video

Scan Format:

1080p

Standard Refresh Rate:

60 Hz

Native Contrast Ratio:

1,200:1

Brightness:

700 Nit

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Ethernet

Interfaces/Ports

DVI:

Yes

VGA:

Yes

HDMI:

Yes

DisplayPort:

Yes

Network (RJ-45):

Yes

Audio Line In:

Yes

Audio Line Out:

Yes

Serial:

Yes

Power Description

Input Voltage:

120 V AC
230 V AC

Power Consumption:

205 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

400 x 400

Height:

26.9"

Width:

47.8"

Depth:

3.8"

Weight (Approximate):

61.50 lb

Miscellaneous

Package Contents:

55" Ultra Narrow Bezel S-IPS TileMatrix Video Wall Solution
Power cord
3m DP cable
LAN cable
CD-ROM (user manual)
Screws
Thumbscrews
Color Calibration Kit
Overframe Bezel Kit
Peerless Mounting System
IR Remote Control Kit
SurgeX Power Conditioning

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 43211902
