Full specifications (PDF)
Features:
- Landscape/Portrait Viewable
- TileMatrix Support
- Video Wall

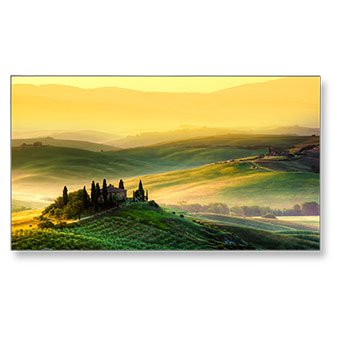

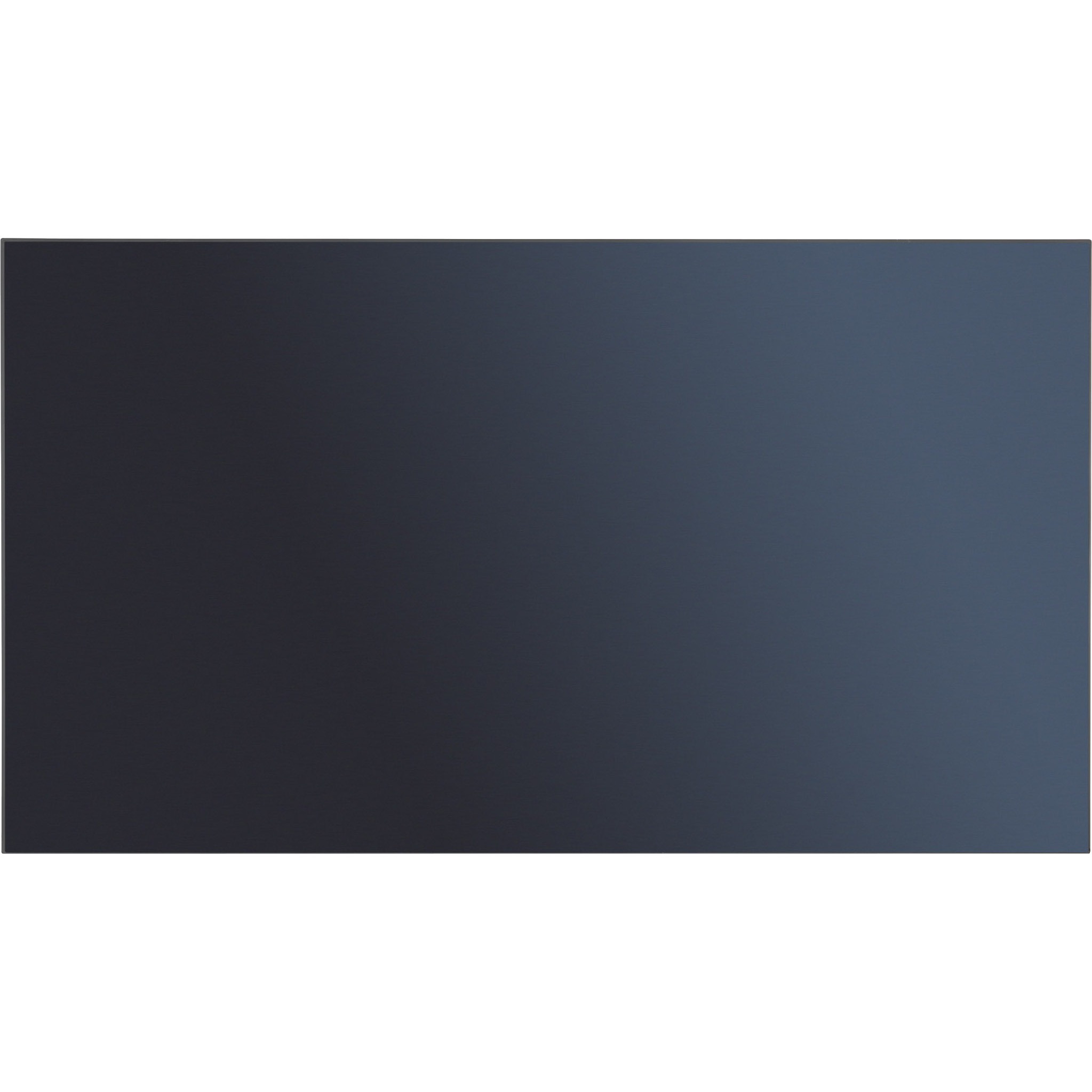

NEC X464UNV-TMX9P Digital Signage Display
Part Number:
X464UNV-TMX9P
Model:
X-Series
NEC X-Series Digital Signage Display Model Overview
Transform your video walls with the immaculate high definition of the X-Series. Direct LED backlighting reduces power consumption and improves edge-to-edge brightness uniformity. Mere millimeters separate content from display to display which ensures a smooth transition across a video wall. This display is ideal for digital signage, boardrooms, entrance lobbies and broadcast applications, and can be deployed in video wall applications up to 10 x 10 in size utilizing integrated TileMatrix technology.
NEC X464UNV-TMX9P Digital Signage Display Overview
NEC's complete 46" 3x3 LCD TileMatrix™ Video Wall Solution delivers an all-in-one, easy-to-configure and cost-effective solution that is ideal for dynamic digital signage and command & control applications. Exclusive TileMatrix and TileComp™ technologies combine with the ultra-narrow bezel of the NEC X464UNV and the full adjustment capabilities of a Peerless-AV pull-out mount to allow for simple installation and easy access while servicing the video wall. The minimal bezel widths help to avoid interruption of the displayed content while included cables can be used to source digital signage content while controlling the display. An NEC Display Wall Calibrator kit is included, allowing for accurate brightness intensity, white point matching and greater color uniformity from screen-to-screen.
Technical Information
Display & Graphics
Screen Size:
46"
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
Direct LED
Video
Scan Format:
1080p
Standard Refresh Rate:
60 Hz
Native Contrast Ratio:
3,500:1
Brightness:
500 Nit
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Interfaces/Ports
DVI:
Yes
VGA:
Yes
HDMI:
Yes
DisplayPort:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial:
Yes
Power Description
Power Consumption:
90 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
300 x 300
Height:
22.8"
Width:
40.3"
Depth:
4.6"
Weight (Approximate):
50.30 lb
Miscellaneous
Package Contents:
- (46") Ultra-Narrow 3x3 TileMatrix Video Wall Solution
- Power cord
- DisplayPort cable
- LAN cable
- Wireless remote control
- Batteries
- CD-ROM (User manual)
- Option board slot cover
- Screws
- Thumbscrews
- Wall Calibrator kit
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0805736053425
UPC:
805736053425
EAN:
0805736053425
UNSPSC:
43211902
