Full specifications (PDF)
Features:
- Picture on Picture
- Channel Labeling
NEC V552-AVT Digital Signage Display
Part Number:
V552-AVT
Model:
V-Series

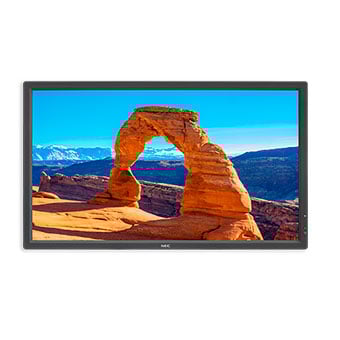

NEC V-Series Digital Signage Display Model Overview
NECs V-Series high-performance large-screen display utilizes LED backlighting to deliver both environmental and functional benefits for digital signage. The V323-2's commercial-grade panel is capable of displaying brilliant imagery and capturing the audiences attention. This full HD model features a brand new mechanical design as well as an Open Pluggable Specification (OPS)-compliant expansion slot, which future-proofs the display and allows for the seamless integration of a computer or other NEC/third-party component. Because video, RS-232 control and power are passed internally from the display to the computer, additional cabling is not required, thereby simplifying installations. With integrated temperature sensors and fans, this display is ideal in applications that require extended use, including retail stores, restaurants, indoor venues, training facilities and airports.

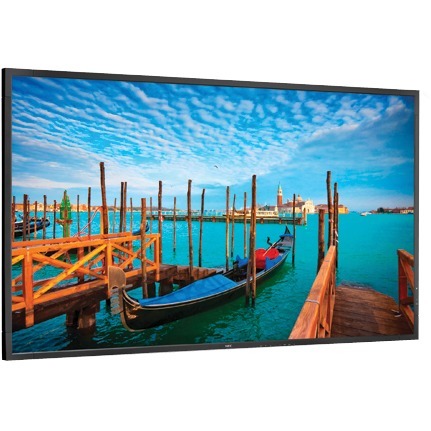

NEC V552-AVT Digital Signage Display Overview
NEC's 55" V552-AVT commercial-grade LCD display utilizes LED backlighting to reduce the product's depth and power consumption when compared to its predecessor. It gives digital signage users the biggest bang for their buck with AV inputs and a built-in ATSC digital tuner (SB-03TM) at a cost-conscious price. The V552-AVT also features built-in 10W speakers and an Open Pluggable Specification (OPS)-compliant expansion slot. This future-proofs the display and allows for the seamless integration of a computer or other NEC/third-party component. Because video, RS-232 control and power are passed internally from the display to the accessory, additional cabling is not required, thereby simplifying installations. The V552-AVT's full high-definition panel is capable of displaying brilliant imagery and capturing the audience's attention, making it ideal for use in applications that require extended use, including retail stores, restaurants, indoor venues, training facilities and corporate boardrooms.
Technical Information
Display & Graphics
Screen Size:
55"
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
Edge LED
Audio
Number of Speakers:
2
Speakers:
Yes
RMS Output Power:
10 W
Video
Scan Format:
1080p
Standard Refresh Rate:
60 Hz
Native Contrast Ratio:
4,000:1
Brightness:
450 Nit
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Interfaces/Ports
DVI:
Yes
VGA:
Yes
HDMI:
Yes
Component Video:
Yes
Composite Video:
Yes
DisplayPort:
Yes
Network (RJ-45):
Yes
Serial:
Yes
Number of HDMI Inputs:
1
Physical Characteristics
VESA Mount Standard:
300 x 300
Height:
28.4"
Width:
49.2"
Depth:
2.5"
Weight (Approximate):
58 lb
Miscellaneous
Package Contents:
- V552-AVT Digital Signage Display
- Power Cord
- Digital Tuner
- VGA Cable (Mini 15-pin D-sub)
- Remote Control
- Batteries
- Cable Cover
- CD-ROM (User Manual)
- Clamp
- Screws
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
ENERGY STAR
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0805736045390
UPC:
805736045390
EAN:
0805736045390
UNSPSC:
43211902
