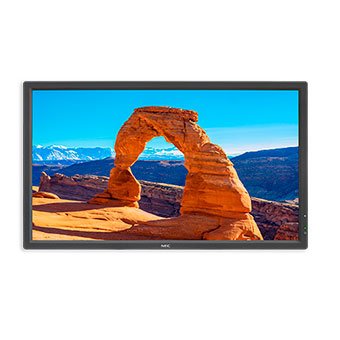

NEC V423-TM Digital Signage Display

Part Number: V423-TM

Model: V-Series

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Features

Super In-plane Switching (S-IPS) TechnologyLandscape/Portrait ViewableTileMatrix (10x10)Carbon Footprint MeterPlug and PlayScreen SaverPicture on PictureSide by SideSafety LockOpen Pluggable Specification (OPS)

Screen Size

42"

Display Screen Type

LCD

Touchscreen

Yes

Product Description:

NEC Display 42" LED Backlit, Touch Integrated Large Screen Display - 42" LCD - Touchscreen - 1920 x 1080 - Edge LED - 430 Nit - HDMI - DVI - SerialEthernet

Explore all NEC V-Series Digital Signage Displays

Add to Quote

Overview

Full specifications (PDF)

NEC V-Series Digital Signage Display Model Overview

NECs V-Series high-performance large-screen display utilizes LED backlighting to deliver both environmental and functional benefits for digital signage. The V323-2's commercial-grade panel is capable of displaying brilliant imagery and capturing the audiences attention. This full HD model features a brand new mechanical design as well as an Open Pluggable Specification (OPS)-compliant expansion slot, which future-proofs the display and allows for the seamless integration of a computer or other NEC/third-party component. Because video, RS-232 control and power are passed internally from the display to the computer, additional cabling is not required, thereby simplifying installations. With integrated temperature sensors and fans, this display is ideal in applications that require extended use, including retail stores, restaurants, indoor venues, training facilities and airports.

NEC V423-TM Digital Signage Display Overview

NEC's 42" V423-TM touch integrated large-screen LCD display offers digital signage users touchscreen capabilities at a cost-conscious price. This display also utilizes LED-backlighting to minimize depth and power consumption. Within the V423-TM bezel is an integrated, low-profile, 4-camera optical-imaging technology that allows for up to six simultaneous touches. Its anti-reflective glass coating protects the panel and allows for higher brightness transmittance. The touchscreen, high-performance panel and abundant advanced technologies promote extended use, making the V423-TM ideal for corporate, retail, restaurant and wayfinding kiosks. NEC offers a variety of services to supplement your hardware purchases including content creation and management and advertising delivery.

Detailed Specs

Full specifications (PDF)

Technical Information

Features:

Super In-plane Switching (S-IPS) Technology
Landscape/Portrait Viewable
TileMatrix (10x10)
Carbon Footprint Meter
Plug and Play
Screen Saver
Picture on Picture
Side by Side
Safety Lock
Open Pluggable Specification (OPS)

Display & Graphics

Screen Size:

42"

Display Screen Type:

LCD

Touchscreen:

Yes

Touchscreen Technology:

Optical Imaging

Multi-touch Screen:

Yes

Display Resolution:

1920 x 1080

Aspect Ratio:

16:9

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Backlight Technology:

Edge LED

Audio

Number of Speakers:

Speakers:

Yes

RMS Output Power:

20 W

Video

Scan Format:

1080p

Standard Refresh Rate:

60 Hz

Native Contrast Ratio:

1,300:1

Brightness:

430 Nit

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Ethernet

Interfaces/Ports

DVI:

Yes

VGA:

Yes

HDMI:

Yes

Component Video:

Yes

Composite Video:

Yes

DisplayPort:

Yes

Network (RJ-45):

Yes

Audio Line In:

Yes

Audio Line Out:

Yes

Serial:

Yes

Software

Operating System:

Windows 7

Power Description

Power Consumption:

95 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

300 x 300

Height:

23.7"

Width:

39.7"

Depth:

3.3"

Weight (Approximate):

54.50 lb

Miscellaneous

Package Contents:

42" LED Backlit, Touch Integrated Large Screen Display
Power Cord
VGA Cable (Mini 15-pin D-sub)
Wireless Remote Control
Batteries
Main Switch Cover
CD-ROM (User Manual)
Clamp
Screws

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0805736051155

UPC: 805736051155

EAN: 0805736051155

UNSPSC: 43211902
