NEC UN462A Monitor

The NEC UN462A Monitor has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
NEC - NEC Display 46" Ultra-Narrow Bezel Professional-Grade Display - 46" LCD - 1920 x 1080 - Direct LED - 700 Nit - 1080p - HDMI - USB - DVI - SerialEthernet - Black
  • Digital Signage Display offers a reliable, convenient video signage solution
  • Experience luminescent visual images with LCD display
  • Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
  • Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images
  • Direct LED backlight technology for a consistent picture quality from corner to corner
  • 46" display showcases movies, games, and photos with striking clarity
Read More
Discontinued Need Assistance?
Add to Quote
NEC Parts Accessory Model Overview
Products and parts from NEC.

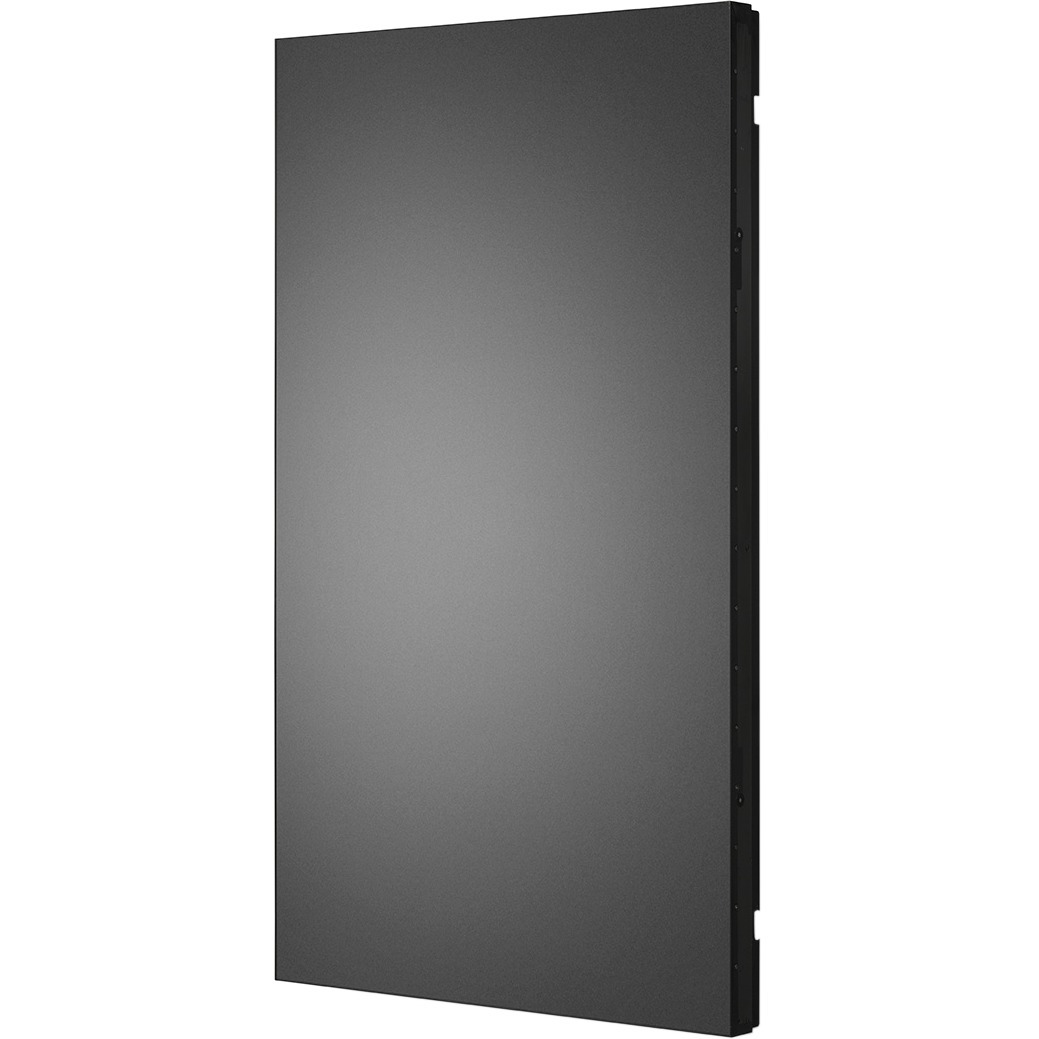

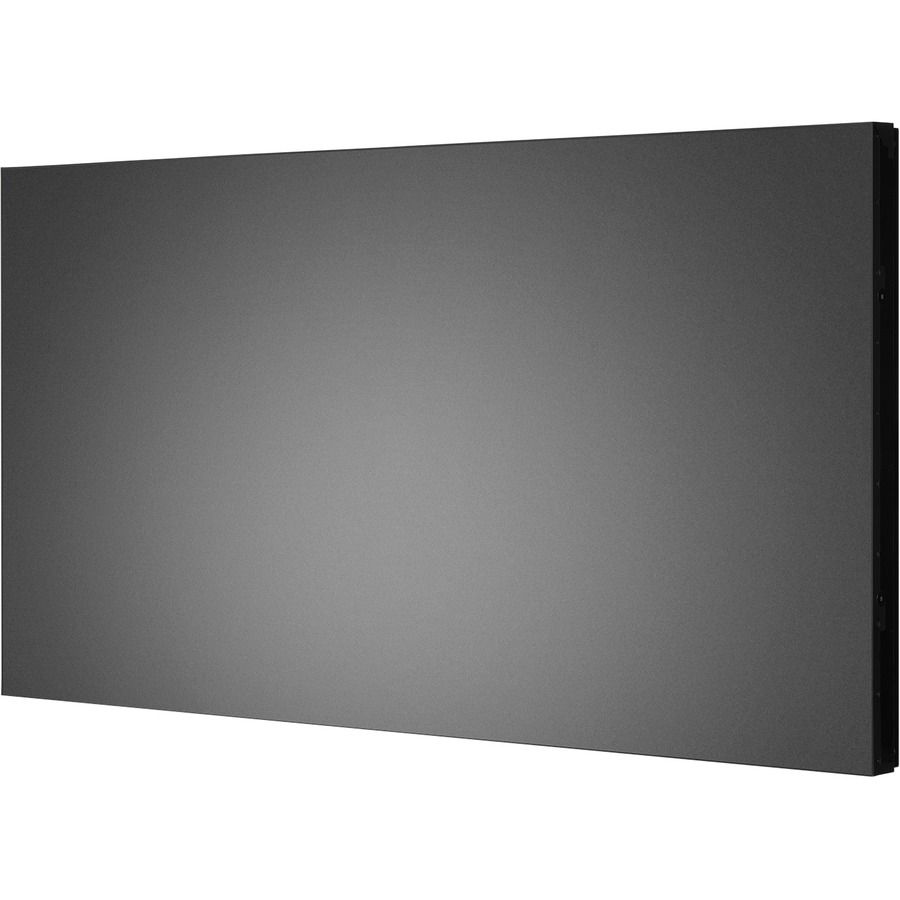

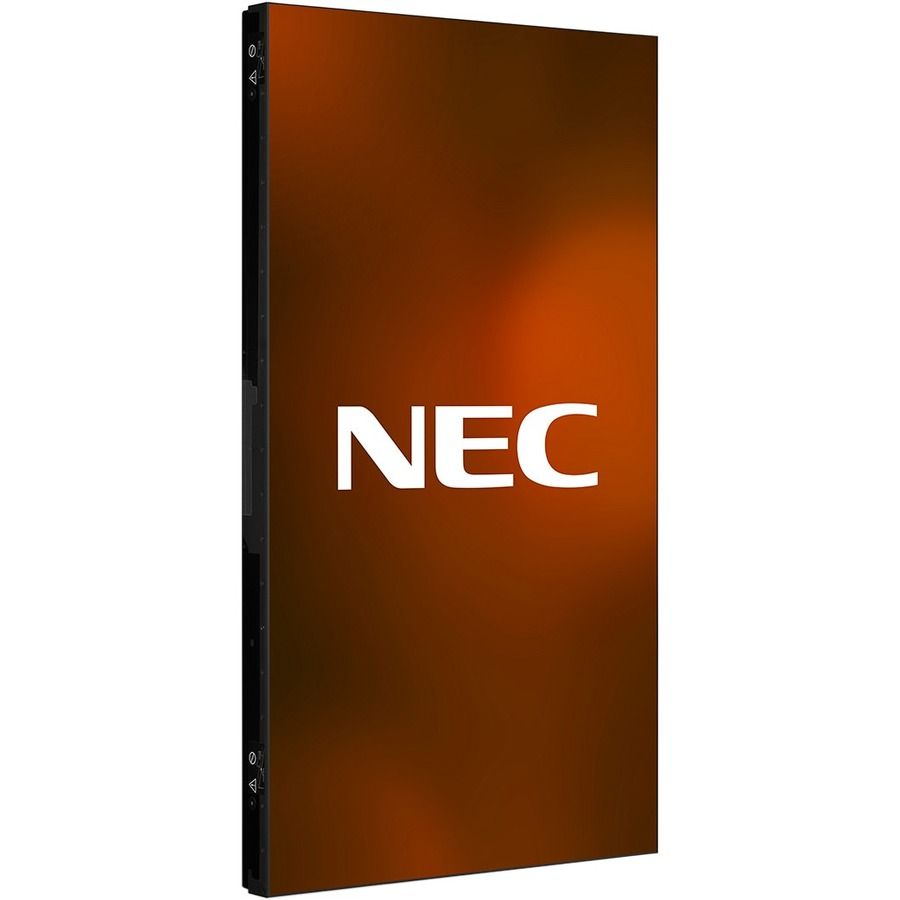

NEC UN462A Monitor Overview

NEC's 46" UN462A sets the standard for quality color reproduction in video wall environments. Direct LED backlighting and factory calibration for intensity, gamma and RGB allows for ideal panel uniformity and an easy out-of-the-box experience. This display is integrated with the proprietary SpectraView Engine, which not only allows for ultimate color control but also allows for increased color calibration capabilities including white copy, self calibration to an external sensor and manual CIE chromaticity adjustment for maximum control when color matters most. This display also includes both a DisplayPort and an HDMI Out connections for daisy chaining signals up to 4K UHD. This new generation of display received a full chassis upgrade with a 3.5mm bezel gap, faster processing times, evolved daisy chain performance, and new TileMatrixing capabilities.

  • SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability
  • 700cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience
  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
  • HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution
  • New TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall
  • Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display
  • NEC Display Wall Calibrator, MultiProfiler, SpectraViewII and NaViSet Administrator 2 software compatible.
Technical Information
Bezel Width (Bottom):
47.2 mil
Bezel Width (Top):
90.6 mil
Bezel Width (Left):
90.6 mil
Bezel Width (Right):
47.2 mil
Display & Graphics
Screen Size:
46"
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Pixel Pitch:
19.7 mil
Backlight Technology:
Direct LED
Video
Scan Format:
1080p
Brightness:
700 Nit
Network & Communication
Ethernet:
Yes
Interfaces/Ports
USB:
Yes
DVI:
Yes
HDMI:
Yes
Serial:
Yes
Number of HDMI Inputs:
2
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Product Color:
Black
Height:
22.7"
Width:
40.2"
Depth:
4"
Miscellaneous
Package Contents:
  • 46" Ultra-Narrow Bezel Professional-Grade Display
  • 3.0m Power cord
  • 2.0m DisplayPort cable
  • 2.0m HDMI cable
  • LAN cable
  • SD Card Cover
  • Clamp for Power Cable
  • Setup Manual
  • Contents Sheet
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0805736067194
UPC: 805736067194
EAN: 0805736067194
UNSPSC: 43211902
