NEC PA302W-BK Monitor

Part Number: PA302W-BK

Model: PA-Series

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Number of Screens

Viewable Screen Size

29.8"

Screen Mode

WQXGA

Panel Technology

In-plane Switching (IPS) Technology

Product Description:

MULTISYNC PA302W-BK, 30" GB-R LED BACKLIT WIDESCREEN LCD MONITOR, AH-IPS, 2560X1600, DVI-D, DUAL DISPLAYPORT, HDMI, USB HUB, 14 BIT 3-D LUT, COLOR EMULATION, TILEMATRIX, PIVOT, BLACK CABINET, 4-YR WARRANTY

Explore all NEC PA-Series Monitors

Add to Quote

Overview

Full specifications (PDF)

NEC PA-Series Monitor Model Overview

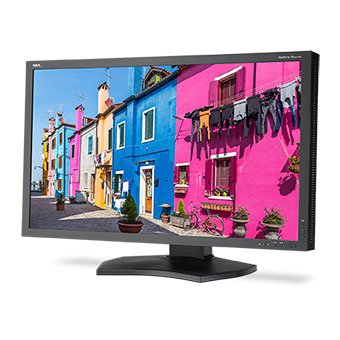

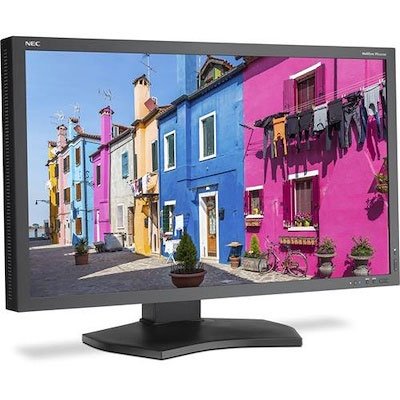

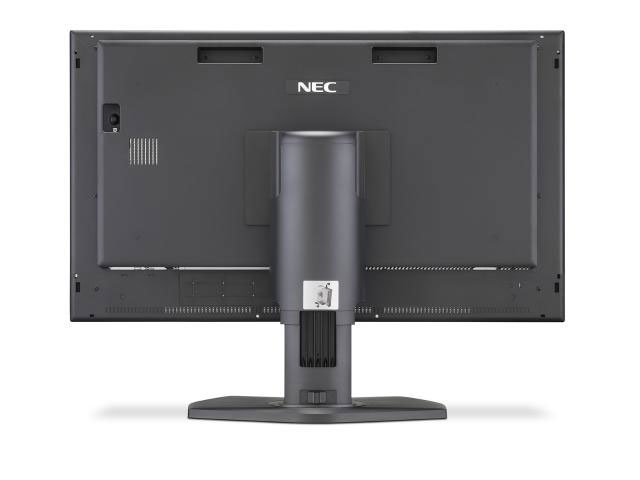

The NEC MultiSync® PA322UHD is a professional desktop display designed for color-critical applications, featuring a breathtaking 32" wide-gamut 4K UHD resolution (3840 x 2160). With incredible color accuracy boasting up to 99.2% coverage of the Adobe RGB color space, it ensures that every image displayed is vivid and true to life. Powered by advanced IPS-type LCD panel technology and IGZO, this monitor not only delivers exceptional image quality but also comes with a robust four-year warranty. Whether you're editing photos, creating videos, or managing multiple displays, the MultiSync PA322UHD enhances your workflow and brings your creative vision to life.

Key Features

Impressive 4K UHD resolution: 3840 x 2160 pixels for crystal-clear viewing.
Wide color gamut: 99.2% Adobe RGB and accurate 100% sRGB coverage.
10-bit color depth: Display up to 1.07 billion colors.
Advanced color management: MultiProfiler software with customizable presets.

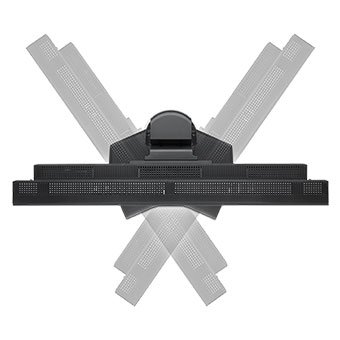

Ergonomic design: Four-way adjustable stand with VESA mount compatibility.
USB 3.0 hub: Connects multiple devices and switches seamlessly between two computers.

Specifications

Display: 31.5" IPS Panel
Aspect Ratio: 16:9
Brightness: 350 cd/m²
Pixel Pitch: 0.18mm
Response Time: 10ms (GtG)
Power Consumption: 95W (typical), 5W (power savings mode)
Weight: 45.2 lbs (with stand)
Operating Temperature: 41-95°F / 5-35°C
Color Gamut: 99.2% Adobe RGB
Connectivity: 2 x DisplayPort, 4 x HDMI, 2 x DVI-D

NEC PA302W-BK Monitor Overview

Color accuracy that you can trust. The 30" MultiSync PA302W-BK is the new benchmark desktop display for color accurate applications. The innovative GB-R LED backlight provides 99.3% coverage of the Adobe RGB color space while consuming up to 44% less power than comparable CCFL backlights. Utilizing a high performance AH-IPS LCD panel and backed by a 4 year warranty with Advanced Exchange, the MultiSync PA302W-BK will reliably deliver high quality, accurate images simply and beautifully.

Detailed Specs

Full specifications (PDF)

Technical Information

Number of Screens:

Viewable Screen Size:

29.8"

Screen Mode:

WQXGA

Panel Technology:

In-plane Switching (IPS) Technology

Response Time:

6 ms

Aspect Ratio:

16:10

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Adjustable Display Angle:

Yes

Adjustable Display Height:

Yes

Adjustable Display Pivot:

Yes

Mount Type:

Desk Mountable

Backlight Technology:

LED

HDCP Supported:

Yes

Features:

Eco Mode
Carbon Footprint Meter
Cable Management
AmbiBright

Adjustable Stand Height:

Yes

Video

Maximum Resolution:

2560 x 1600

Standard Refresh Rate:

85 Hz

Color Supported:

1.07 Billion Colors

Contrast Ratio:

1,000:1

Brightness:

340 Nit

Interfaces/Ports

DVI:

Yes

HDMI:

Yes

USB:

Yes

DisplayPort:

Yes

Built-in Devices

Built-in Devices:

USB Hub

Power Description

Operating Power Consumption:

87 W

Standby Power Consumption:

1.40 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

200 x 100

Color:

Black

Height:

17.6"

Width:

27.1"

Depth:

3.2"

Height with Stand:

24.30"

Width with Stand:

27.10"

Depth with Stand:

11.90"

Weight (Approximate):

19.50 lb

Weight with Stand (Approximate):

37.50 lb

Miscellaneous

Package Contents:

30" Color Accurate Desktop Monitor (Black)
Power cable
DisplayPort cable
Mini DisplayPort to DisplayPort cable
DVI cable
USB cable
Mounting Screws

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

4 Year

Item Numbers

GTIN: 4913393179559

EAN: 4913393179559

UNSPSC: 43211902
