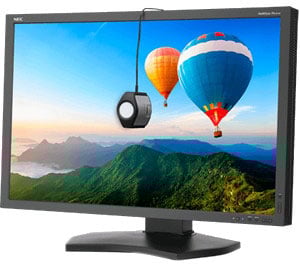

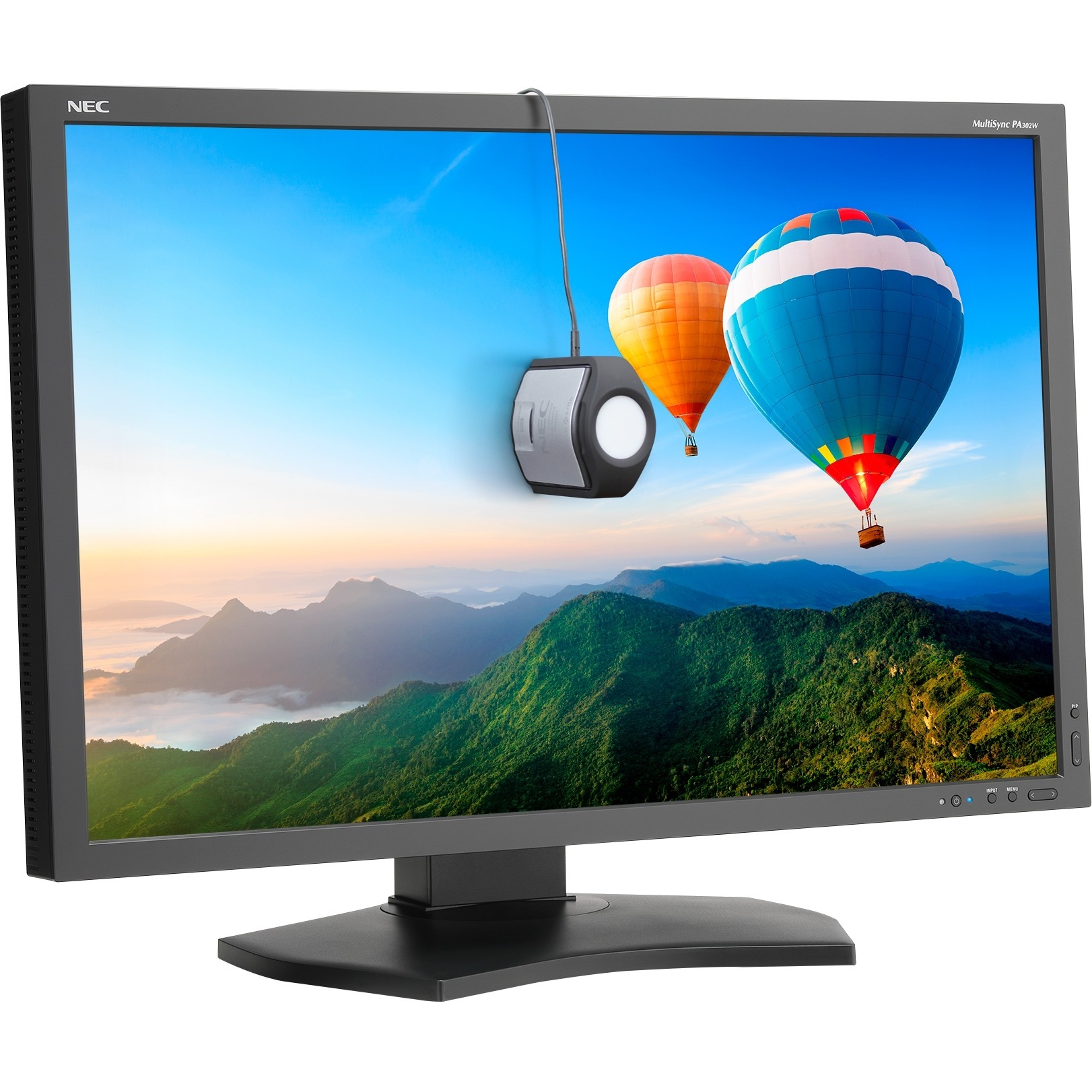

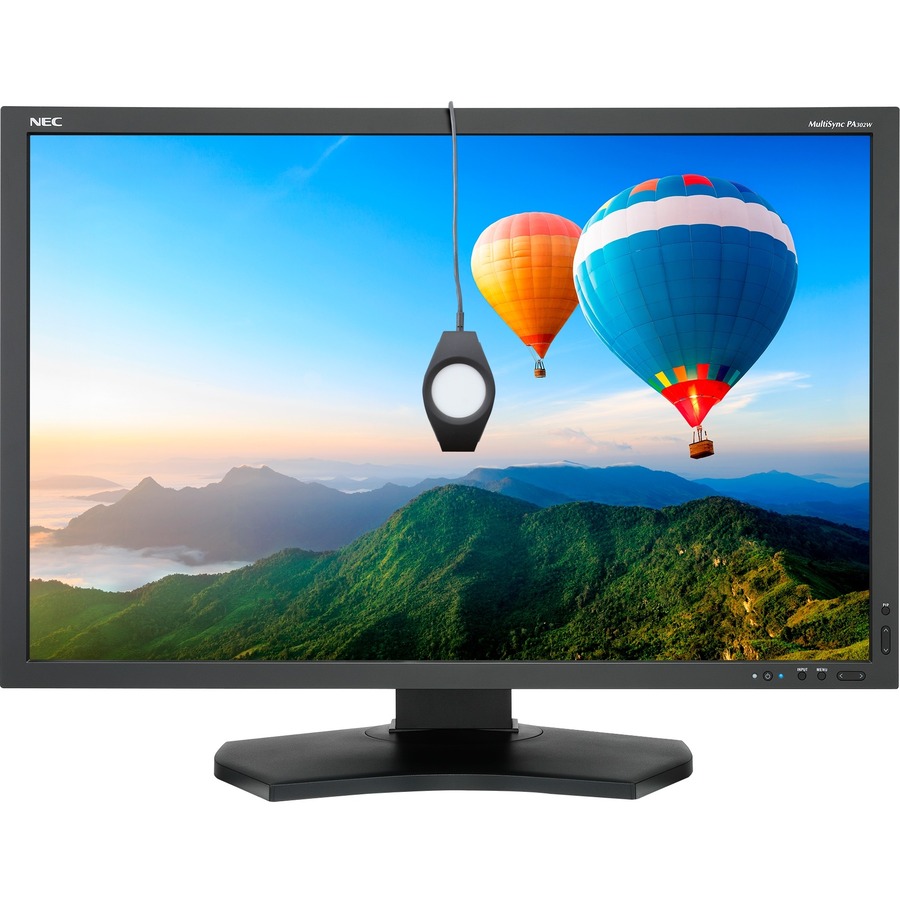

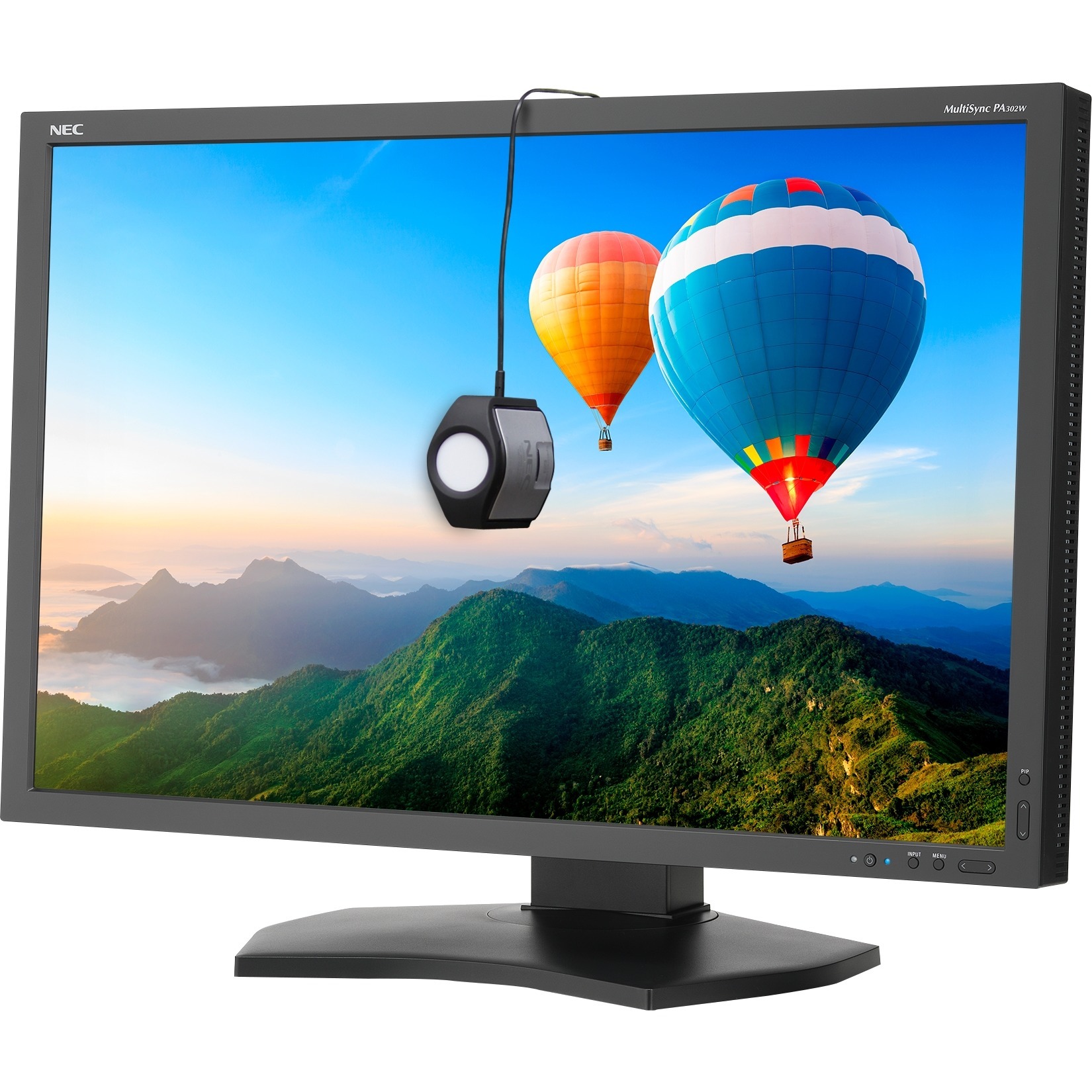

NEC PA302W-BK-SV Monitor

Part Number: PA302W-BK-SV

Model: Parts

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Number of Screens

Viewable Screen Size

29.8"

Screen Mode

WQXGA

Panel Technology

Advanced High Performance In-plane Switching (AH-IPS) Technology

Product Description:

MULTISYNC PA302W-BK, 30" GB-R LED BACKLIT WIDESCREEN LCD MONITOR WITH SPECTRAVIEW BUNDLE, AH-IPS, 2560X1600, DVI-D, DUAL DISPLAYPORT, HDMI, USB HUB, 14 BIT 3-D LUT, COLOR EMULATION, TILEMATRIX, PIVOT, BLACK CABINET, 4-YR WARRANTY

Explore all NEC Parts Accessories

Add to Quote

Overview

NEC Parts Accessory Model Overview

Products and parts from NEC.

NEC PA302W-BK-SV Monitor Overview

Reliable, calibrated color accuracy.The 30" MultiSync PA302W-BK with the SpectraViewII color calibration solution is the ultimate desktop display for color critical applications. The innovative GB-R LED backlight provides 99.3% coverage of the Adobe RGB color space while consuming up to 44% less power than comparable CCFL backlights. Utilizing a high performance AH-IPS LCD panel and combined with the MDSVSENSOR3 calibrator, the MultiSync PA302W-BK-SV delivers high quality, perfect color.

Detailed Specs

Technical Information

Number of Screens:

Viewable Screen Size:

29.8"

Screen Mode:

WQXGA

Panel Technology:

Advanced High Performance In-plane Switching (AH-IPS) Technology

Response Time:

6 ms

Aspect Ratio:

16:10

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Adjustable Display Angle:

Yes

Adjustable Display Height:

Yes

Adjustable Display Pivot:

Yes

Mount Type:

Arm-mountable

Backlight Technology:

GB-R LED

HDCP Supported:

Yes

Features:

AmbiBright
Eco Mode
Cable Management
Carbon Footprint Meter
DisplaySync Pro
Digital Uniformity Correction
Black eQualizer
Tiled Matrix
CableComp

Horizontal Frequency:

98.70 kHz

Adjustable Stand Height:

Yes

Video

Maximum Resolution:

2560 x 1600

Standard Refresh Rate:

85 Hz

Color Supported:

1.07 Billion Colors

Contrast Ratio:

1,000:1

Brightness:

340 Nit

Interfaces/Ports

DVI:

Yes

HDMI:

Yes

USB:

Yes

DisplayPort:

Yes

Built-in Devices

Built-in Devices:

USB Hub

Power Description

Operating Power Consumption:

87 W

Standby Power Consumption:

1.40 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

200 x 100

Color:

Black

Height:

17.6"

Width:

27.1"

Depth:

3.2"

Height with Stand:

24.27"

Width with Stand:

27.10"

Depth with Stand:

11.87"

Weight (Approximate):

19.60 lb

Weight with Stand (Approximate):

37.50 lb

Miscellaneous

Package Contents:

30" Color Critical Desktop Monitor with SpectraViewII (Black)
Power Cable
DisplayPort Cable
Mini DisplayPort to DisplayPort Cable
DVI Cable
USB Cable
Mounting Screws
SpectraView II USB drive (SVIISOFT)
Color calibration sensor (MDSVSENSOR3)

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

4 Year

Item Numbers

UNSPSC: 43211902
