NEC PA242W-BK Monitor

Part Number: PA242W-BK

Model: PA-Series

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Number of Screens

Viewable Screen Size

24.1"

Screen Mode

WUXGA

Panel Technology

Advanced High Performance In-plane Switching (AH-IPS) Technology

Product Description:

24" DESKTOP MONITOR, MULTISYNC PA242W-BK, LED BACKLIT, AH-IPS, 1920X1200 W/AMBIX4 - DVI-D, HDMI, BLACK, 4 YEAR WARRANTY

Explore all NEC PA-Series Monitors

Add to Quote

Overview

Full specifications (PDF)

NEC PA-Series Monitor Model Overview

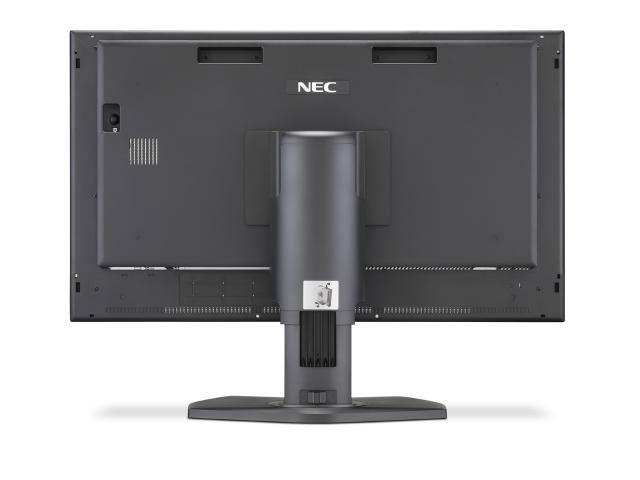

The NEC MultiSync® PA322UHD is a professional desktop display designed for color-critical applications, featuring a breathtaking 32" wide-gamut 4K UHD resolution (3840 x 2160). With incredible color accuracy boasting up to 99.2% coverage of the Adobe RGB color space, it ensures that every image displayed is vivid and true to life. Powered by advanced IPS-type LCD panel technology and IGZO, this monitor not only delivers exceptional image quality but also comes with a robust four-year warranty. Whether you're editing photos, creating videos, or managing multiple displays, the MultiSync PA322UHD enhances your workflow and brings your creative vision to life.

Key Features

Impressive 4K UHD resolution: 3840 x 2160 pixels for crystal-clear viewing.
Wide color gamut: 99.2% Adobe RGB and accurate 100% sRGB coverage.
10-bit color depth: Display up to 1.07 billion colors.
Advanced color management: MultiProfiler software with customizable presets.
Ergonomic design: Four-way adjustable stand with VESA mount compatibility.
USB 3.0 hub: Connects multiple devices and switches seamlessly between two computers.

Specifications

Display: 31.5" IPS Panel
Aspect Ratio: 16:9
Brightness: 350 cd/m²
Pixel Pitch: 0.18mm
Response Time: 10ms (GtG)
Power Consumption: 95W (typical), 5W (power savings mode)
Weight: 45.2 lbs (with stand)
Operating Temperature: 41-95°F / 5-35°C
Color Gamut: 99.2% Adobe RGB
Connectivity: 2 x DisplayPort, 4 x HDMI, 2 x DVI-D

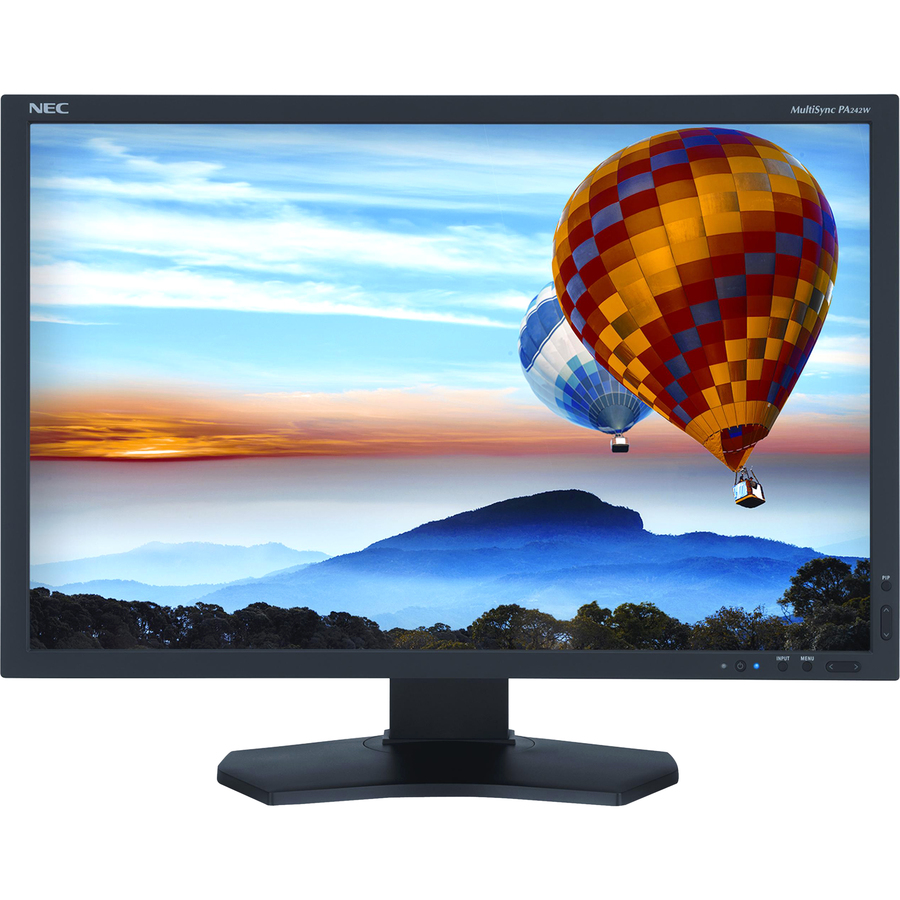

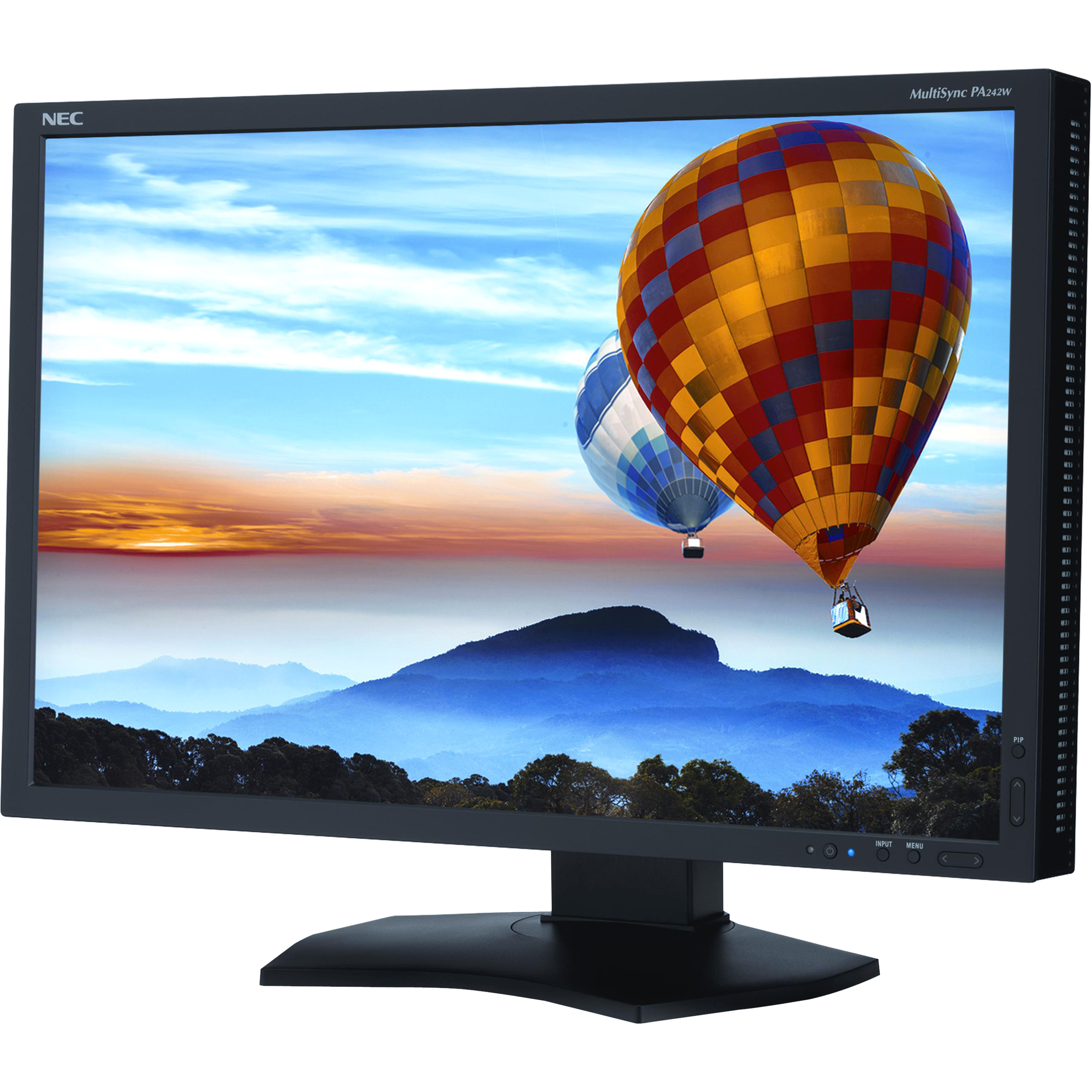

NEC PA242W-BK Monitor Overview

Featuring a cutting edge GB-R LED-backlight, the PA242W, a 24" AH-IPS LCD monitor, is the new standard for color accurate applications including photography and video editing. Offering an accurate 100% coverage of sRGB color gamut and 99.3% of Adobe RGB, the PA242W includes internal 14-bit 3D programmable lookup tables (LUTs) for accurate color rendition, 10-bit DisplayPort and HDMI connectivity for the highest color fidelity and built-in USB hub with DisplaySync Pro.

Detailed Specs

Full specifications (PDF)

Technical Information

Number of Screens:

Viewable Screen Size:

24.1"

Screen Mode:

WUXGA

Panel Technology:

Advanced High Performance In-plane Switching (AH-IPS) Technology

Response Time:

8 ms

Aspect Ratio:

16:10

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Adjustable Display Angle:

Yes

Adjustable Display Height:

Yes

Adjustable Display Pivot:

Yes

Mount Type:

Desk Mountable
Arm-mountable

Backlight Technology:

LED

HDCP Supported:

Yes

Features:

Sync on Green
Cable Management
AmbiBright
CableComp

Horizontal Frequency:

118.40 kHz

Adjustable Stand Height:

Yes

Video

Maximum Resolution:

1920 x 1200

Standard Refresh Rate:

85 Hz

Color Supported:

1.07 Billion Colors

Contrast Ratio:

1,000:1

Brightness:

340 Nit

Interfaces/Ports

DVI:

Yes

HDMI:

Yes

USB:

Yes

DisplayPort:

Yes

Built-in Devices

Built-in Devices:

USB Hub

Power Description

Operating Power Consumption:

56 W

Standby Power Consumption:

200 mW

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

100 x 100

Color:

Black

Height:

14.3"

Width:

21.9"

Depth:

3.3"

Height with Stand:

20.80"

Width with Stand:

21.90"

Depth with Stand:

Weight (Approximate):

16.30 lb

Weight with Stand (Approximate):

23.40 lb

Miscellaneous

Package Contents:

24" Professional Wide Gamut Graphics Desktop Monitor
Power cord
DisplayPort cable
Mini DisplayPort cable
DVI-D cable
USB A to B cable

Energy Star:

Yes

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
ENERGY STAR

Warranty

Limited Warranty:

4 Year

Item Numbers

GTIN: 0052053106512, 0805736046236, 4913393179597

UPC: 052053106512, 805736046236

EAN: 0052053106512, 0805736046236, 4913393179597

UNSPSC: 43211902
