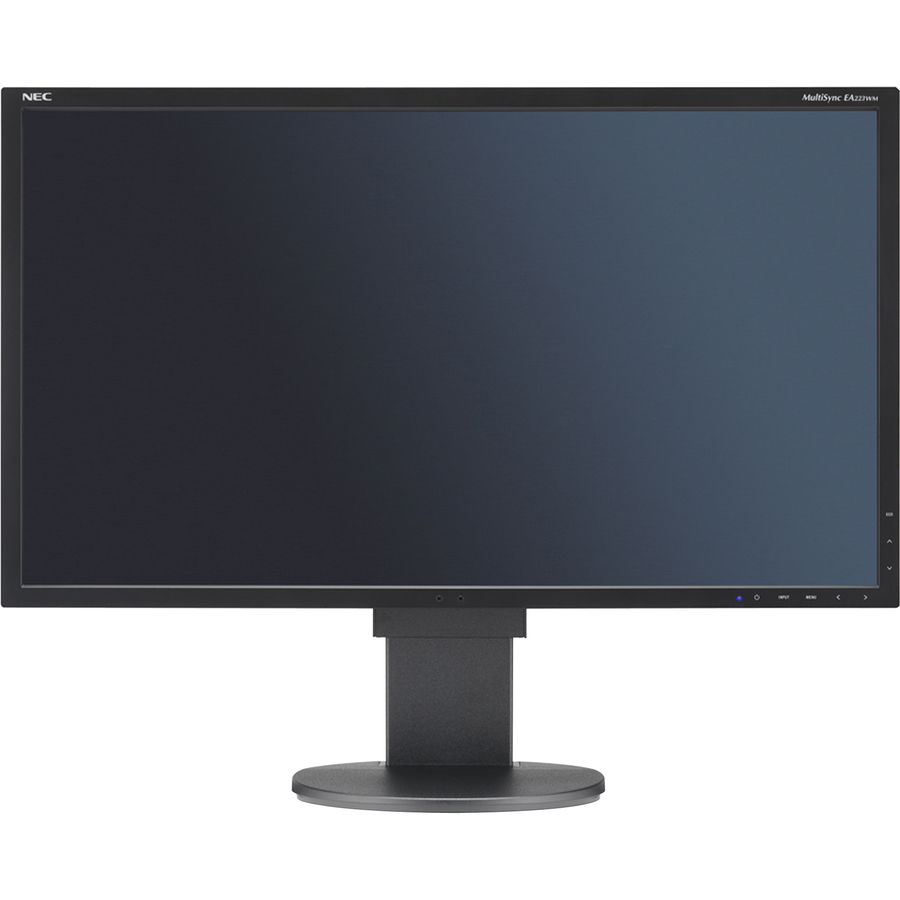

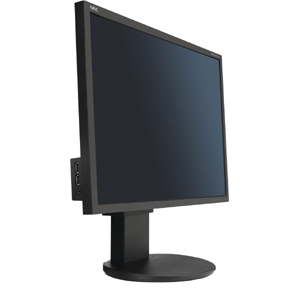

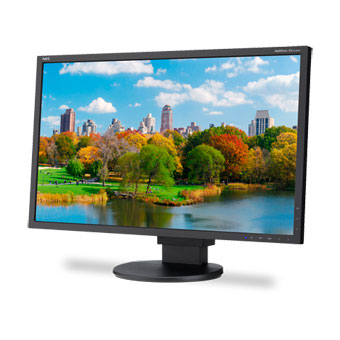

NEC EA223WM-BK Monitor

Part Number: EA223WM-BK
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Screens
1
Screen Size Class
22"
Viewable Screen Size
22"
Screen Mode
WSXGA+

Product Description:

  LCD DESKTOP MONITOR, MULTISYNC EA223WM-BK, 22" WIDESCREEN, 1680 X 1050, LED BACK LIGHTING, SLIM CHASSIS WITH TOUCH OSD CONTROLS, CONTROLSYNC, 3 Year WARRANTY
Explore all NEC Parts Accessories
Add to Quote
NEC EA223WM-BK Monitor
NEC EA223WM-BK Monitor
NEC EA223WM-BK Monitor
NEC EA223WM-BK Monitor
NEC EA223WM-BK Monitor NEC EA223WM-BK Monitor NEC EA223WM-BK Monitor NEC EA223WM-BK Monitor

NEC Parts Accessory Model Overview

Products and parts from NEC.
NEC EA223WM-BK Monitor Overview

Equip your desktop with high-performance, advanced technologies and a full feature set with the 22" NEC MultiSync EA223WM, a widescreen, eco-friendly display ideal for corporate users. The LED backlighting of the EA223WM allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models. It offers touch-sensitive controls that are integrated into the bezel, making display adjustments easier and more intuitive than ever. Smart sensing technology automatically detects your work conditions to determine the proper display brightness with ambient light and human sensors. A comprehensive input panel, including DisplayPort, DVI-D and VGA, connects users to the latest peripherals and future-proofs the investment.

Technical Information
Number of Screens:
1
Screen Size Class:
22"
Viewable Screen Size:
22"
Screen Mode:
WSXGA+
Response Time:
5 ms
Aspect Ratio:
16:10
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Adjustable Display Angle:
Yes
Adjustable Display Height:
Yes
Adjustable Display Pivot:
Yes
Backlight Technology:
LED
HDCP Supported:
Yes
Features:
  • Ambient Light Sensor
  • Carbon Footprint Meter
  • AccuColor
  • Security Lock
Adjustable Stand Height:
Yes
Video
Maximum Resolution:
1680 x 1050
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Interfaces/Ports
DVI:
Yes
USB:
Yes
USB Standard:
USB 2.0
VGA:
Yes
DisplayPort:
Yes
Built-in Devices
Built-in Devices:
  • Speaker
  • USB Hub
Power Description
Operating Power Consumption:
25 W
Standby Power Consumption:
400 mW
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Height:
13"
Width:
19.8"
Depth:
2.4"
Height with Stand:
20.20"
Width with Stand:
19.80"
Depth with Stand:
8.60"
Weight (Approximate):
7.30 lb
Weight with Stand (Approximate):
12.30 lb
Miscellaneous
Package Contents:
  • 22" LED-Backlit Desktop Monitor W/Adjustable Stand
  • Adjustable Stand
  • Setup Sheet
  • User Manual
  • Power Cord
  • 15-pin D-Sub Cable
  • DVI-D Cable
  • USB Cable
  • Audio Cable
  • ControlSync Cable
Certifications & Standards:

ISO 9241-307 Class I

Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
  • ENERGY STAR 5.1
  • TCO Certified Displays 5.2
  • EPEAT Silver
  • RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0012302517896, 0088021466302, 0805736039757, 0809393892915, 0993251788134, 4743619931414
UPC: 012302517896, 088021466302, 805736039757, 809393892915, 993251788134
EAN: 0012302517896, 0088021466302, 0805736039757, 0809393892915, 0993251788134, 4743619931414
UNSPSC: 43211902
