NEC E325 Digital Signage Display

The NEC E325 Digital Signage Display has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

NEC E-Series - NEC Display 32" LED Backlit Display with Integrated Tuner - 32" LCD - 1366 x 768 - Direct LED - 300 Nit - HDMI - USB - Serial - Black

Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
32" screen - Uplift your brand title, improve your client flow and boost your sales by using the screens shining and vibrant display capability
Experience luminescent visual images with LCD display
Direct LED backlighting technology enabled for a bright and sharp display

Need a different version? See all NEC E-Series Digital Signage Displays

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

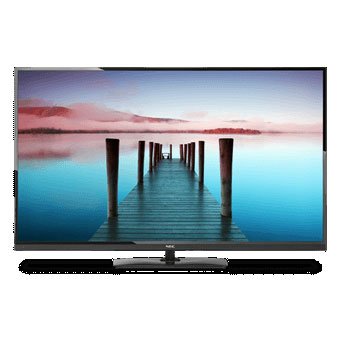

NEC E-Series Digital Signage Display Model Overview

The NEC E-Series goes above and beyond what youve come to know as a traditional display design. With an LED edge-lit backlighting source that contributes to a reduced depth and lighter weight, these displays are mere slivers of the previous generation of displays. These benefits also make this fourth generation of E Series displays easy to transport and install.

NEC E325 Digital Signage Display Overview

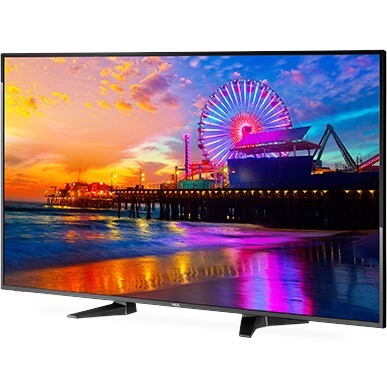

The 32" NEC E325, a direct-lit, commercial-grade display, is ideal for education, corporate and other digital signage applications. Compared to previous generation displays, this model's LED backlighting allows for reduced power consumption, a thinner depth, a smaller bezel and lighter weight. The E325's integrated tuner and speakers allow users to enjoy high-definition broadcast capabilities. This display also features a USB player in which video, audio or JPEG picture files can be loaded and played in sequence for signage purposes.

Integrated multimedia USB player makes digital signage simple
LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
Thinner bezel improves display's aesthetics
24-Hour On/Off timer maintains power schedules
Built-in NTSC/ATSC analog/digital tuner allows for high-definition broadcast capabilities
Built-in, low-profile 5W speakers enhance the experience with superior sound

Detailed Specs

Full specifications (PDF)

Technical Information

Features:

TV Tuner
Media Player
On/Off Timer
Landscape Capable
Sleep Timer
Closed Caption
Parental Control
Schedule

Display & Graphics

Screen Size:

32"

Display Screen Type:

LCD

Display Resolution:

1366 x 768

Response Time:

6.50 ms

Aspect Ratio:

16:9

Horizontal Viewing Angle:

176°

Vertical Viewing Angle:

176°

Backlight Technology:

Direct LED


Image Formats:

JPEG

Audio

Number of Speakers:

Speakers:

Yes

RMS Output Power:

10 W

Video

Standard Refresh Rate:

60 Hz

Native Contrast Ratio:

3,000:1

Brightness:

300 Nit

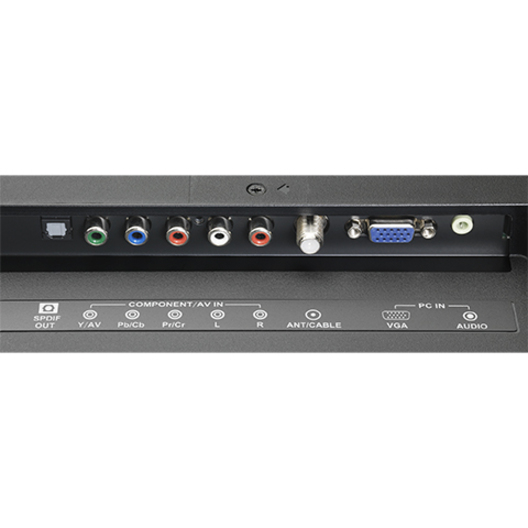

Interfaces/Ports

USB:

Yes

VGA:

Yes

HDMI:

Yes

Component Video:

Yes

Audio Line In:

Yes

Serial:

Yes

Power Description

Input Voltage:

120 V AC
230 V AC

Power Consumption:

52 W

Physical Characteristics

Color:

Black

VESA Mount Compatible:

Yes

VESA Mount Standard:

100 x 100

Height:

16.7"

Width:

28.6"

Depth:

Weight (Approximate):

10.58 lb

Miscellaneous

Package Contents:

32" LED Backlit Display with Integrated Tuner
Power cord
VGA cable (Mini 15-pin D-sub)
Wireless remote control
Batteries
CD-ROM (user manual)

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0805736054828

UPC: 805736054828

EAN: 0805736054828

UNSPSC: 43211902
