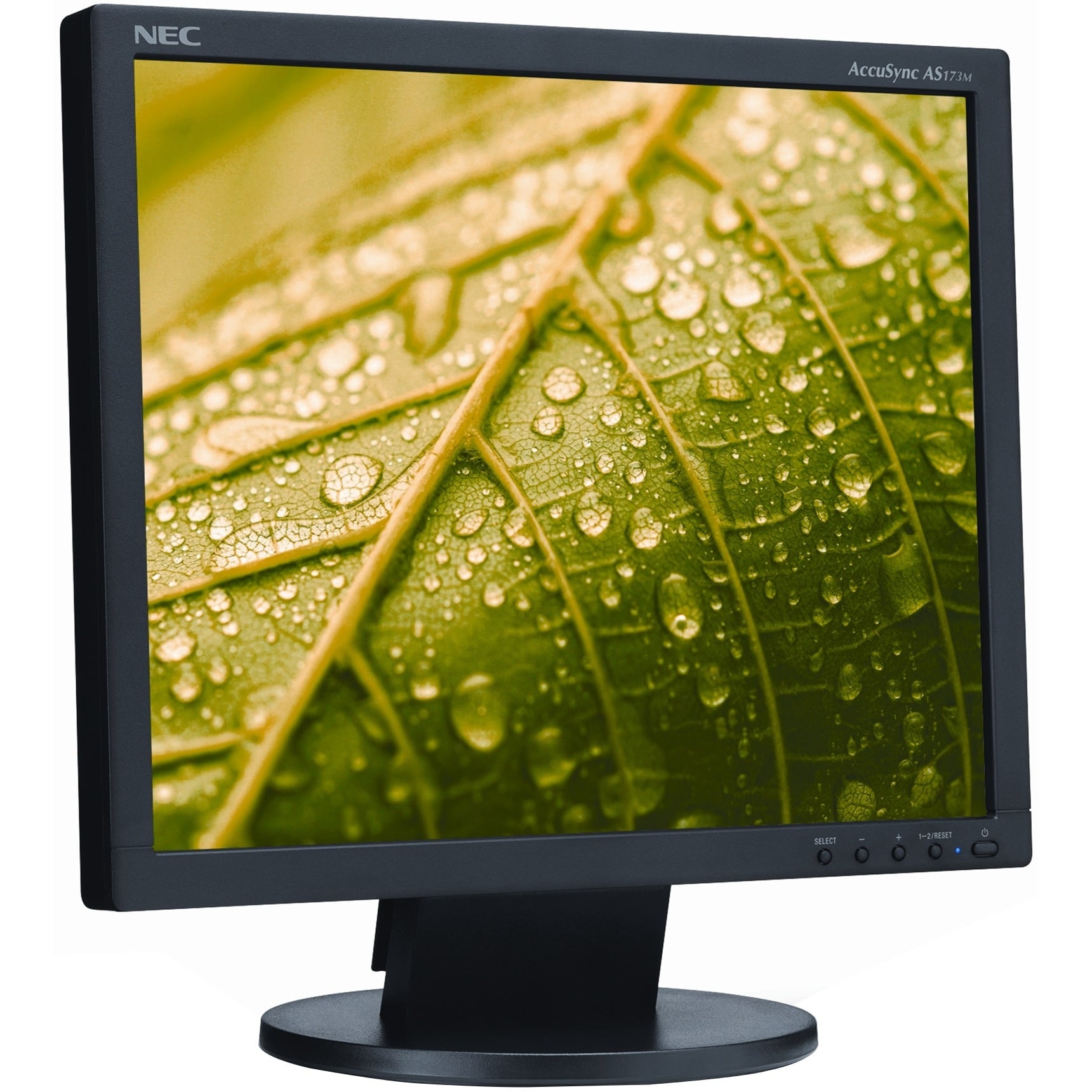

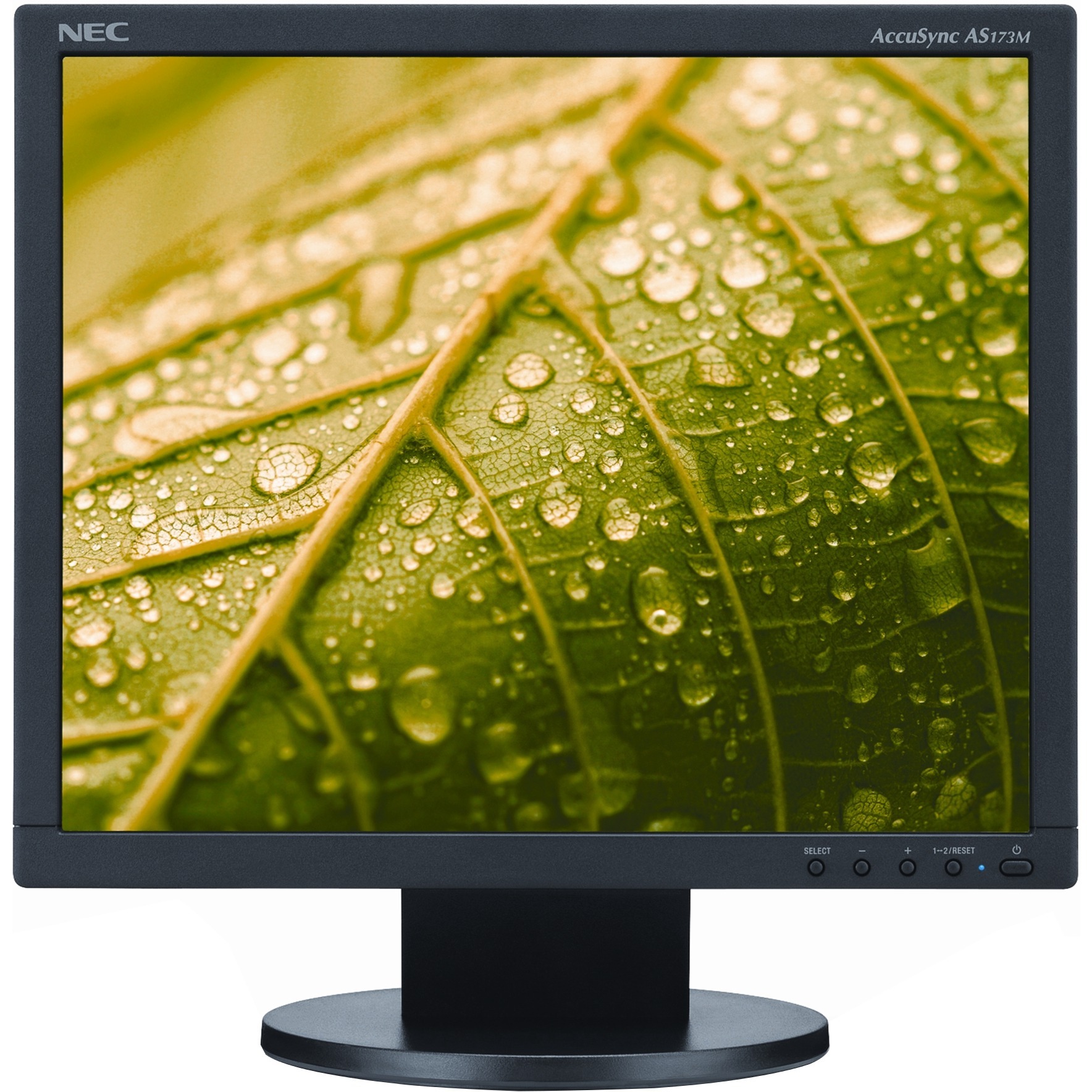

NEC AS173M-BK Monitor

Part Number: AS173M-BK
Model: Parts
$203.56

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Screens
1
Screen Size Class
17"
Viewable Screen Size
17"
Screen Mode
SXGA

Product Description:

  NEC Display AccuSync AS173M-BK 17" SXGA LED LCD Monitor - 5:4 - 17" Class - Twisted nematic (TN) - 1280 x 1024 - 16.7 Million Colors - 250 Nit Typical - 5 ms - 75 Hz Refresh Rate - HDMI - VGA - DisplayPort

NEC Parts Accessory Model Overview

Products and parts from NEC.
NEC AS173M-BK Monitor Overview

Enhance your desktop without breaking your budget with the 17" NEC AccuSync AS173M, an LED backlit LCD desktop monitor featuring robust environmental features such as the Carbon Footprint Meter for tracking the conservation of green gas emissions and ECO Mode for significant power consumption savings. These advantages, combined with an ergonomic design and a high-contrast screen, make this model ideal for small-to-medium-sized business environments.

  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • Ambix® dual-input technology allows for digital/analog compatibility with upgraded video cards and software as well as connection to two systems
  • Rapid Response™ technology delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video
  • ECO Mode™ function helps save power, reduce heat and extend the life of the display, Power Manager (IPM) system and off timer provide innovative power-saving methods and reduce CO2 emissions by shifting to a lower power consumption level or automatically powering down when the monitor is on but not in use
  • Carbon footprint meter helps track and calculate the reduction of green gas emissions
  • ENERGY STAR 8.0 and TCO 8.0
  • NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
Technical Information
Number of Screens:
1
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Screen Surface:
  • Anti-glare
  • Anti-reflective
Panel Technology:
Twisted nematic (TN)
Response Time:
5 ms
Aspect Ratio:
5:4
Pixel Pitch:
0.26000 mm x 0.26000 mm
Adjustable Display Height:
No
Adjustable Display Pivot:
No
Mount Type:
Desk Mountable
Backlight Technology:
LED
HDCP Supported:
Yes
Features:
  • Ergonomic Design
  • Eco Mode
  • Carbon Footprint Meter
  • Ambix Dual Input Technology
  • XtraView
  • Cable Lock Slot
Horizontal Frequency:
31.50 kHz to 81.10 kHz - Analog/Digital
Vertical Frequency:
50 Hz to 75 Hz
Stand Adjustments:
Tilt
Curved Screen:
No
Video
Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
250 Nit
Color Gamut:
  • 74.1% Adobe RGB
  • 70.6% NTSC
  • 95.7% sRGB
Audio
Speakers:
No
Interfaces/Ports
HDMI:
Yes
VGA:
Yes
DisplayPort:
Yes
Built-in Devices
Webcam:
No
Power Description
Operating Power Consumption:
12 W
Standby Power Consumption:
300 mW
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Height:
12.2"
Width:
14.7"
Depth:
2.7"
Height with Stand:
14.70"
Width with Stand:
14.70"
Depth with Stand:
8.10"
Weight (Approximate):
6.61 lb
Weight with Stand (Approximate):
7.28 lb
Miscellaneous
Package Contents:
  • 17" Value Desktop Monitor with LED Backlighting
  • Setup Manual
  • Energy Star 8.0 Sheet
  • 1.5m Power cord
  • 1.5m DisplayPort cable
Energy Star:
Yes
Country of Origin:
China
Environmentally Friendly:
Yes
Energy Efficiency Certification:
ENERGY STAR 8.0
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0805736072396
UPC: 805736072396
EAN: 0805736072396
UNSPSC: 43211902
The NEC AS173M-BK Monitor is also known as AS173MBK
