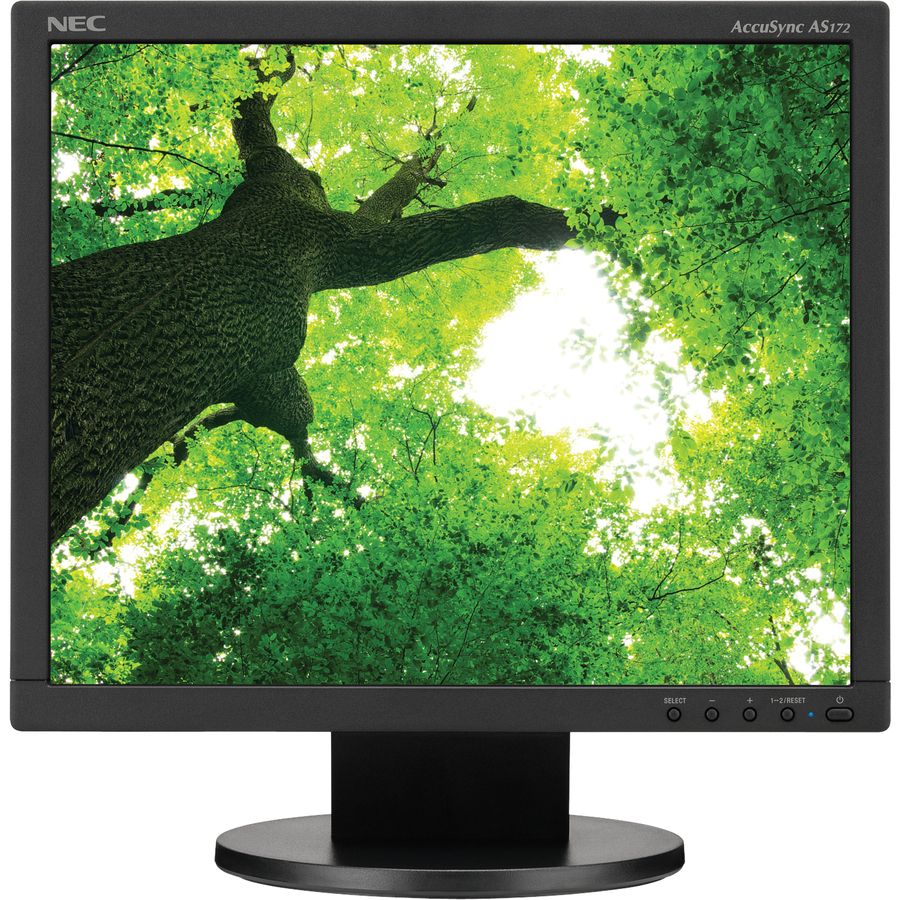

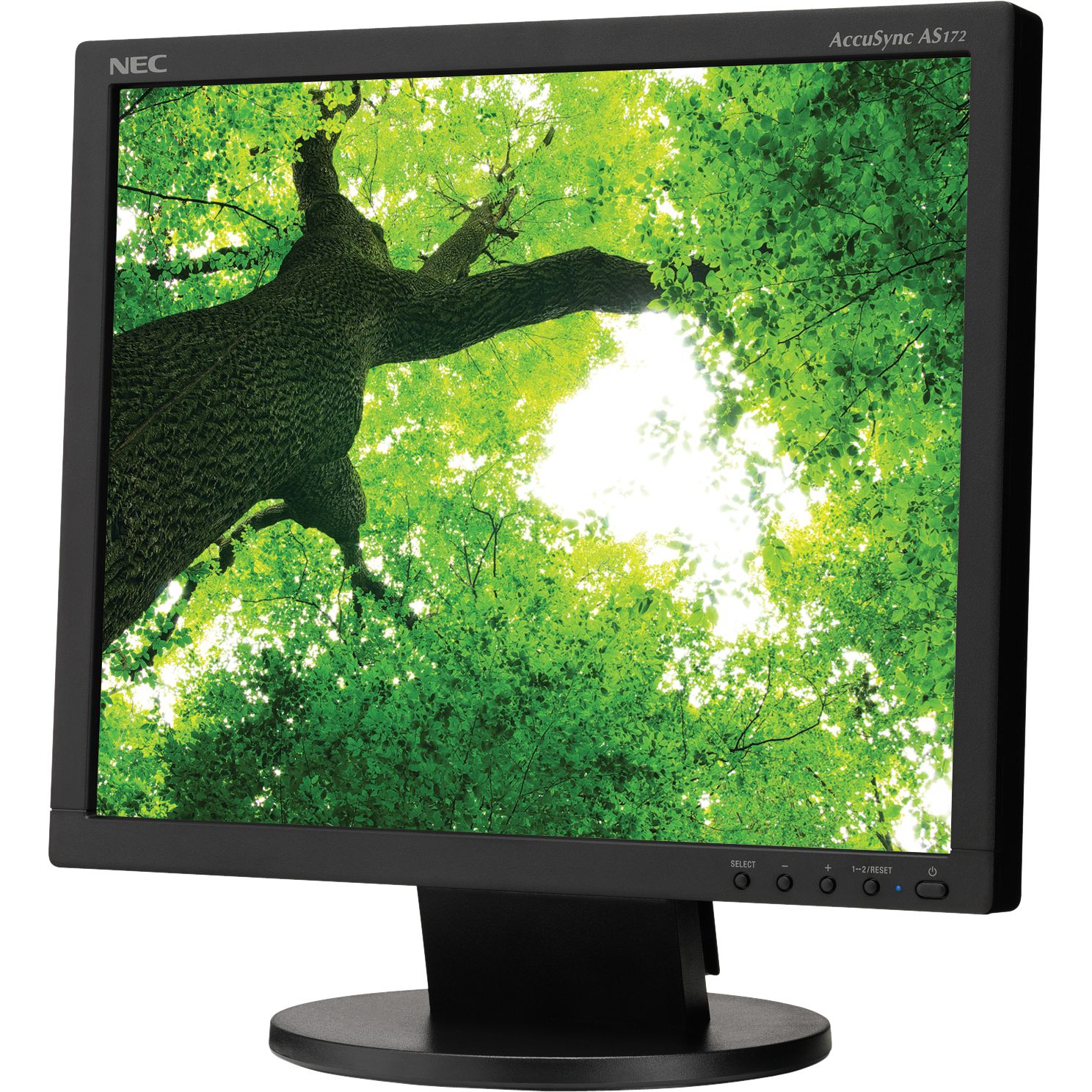

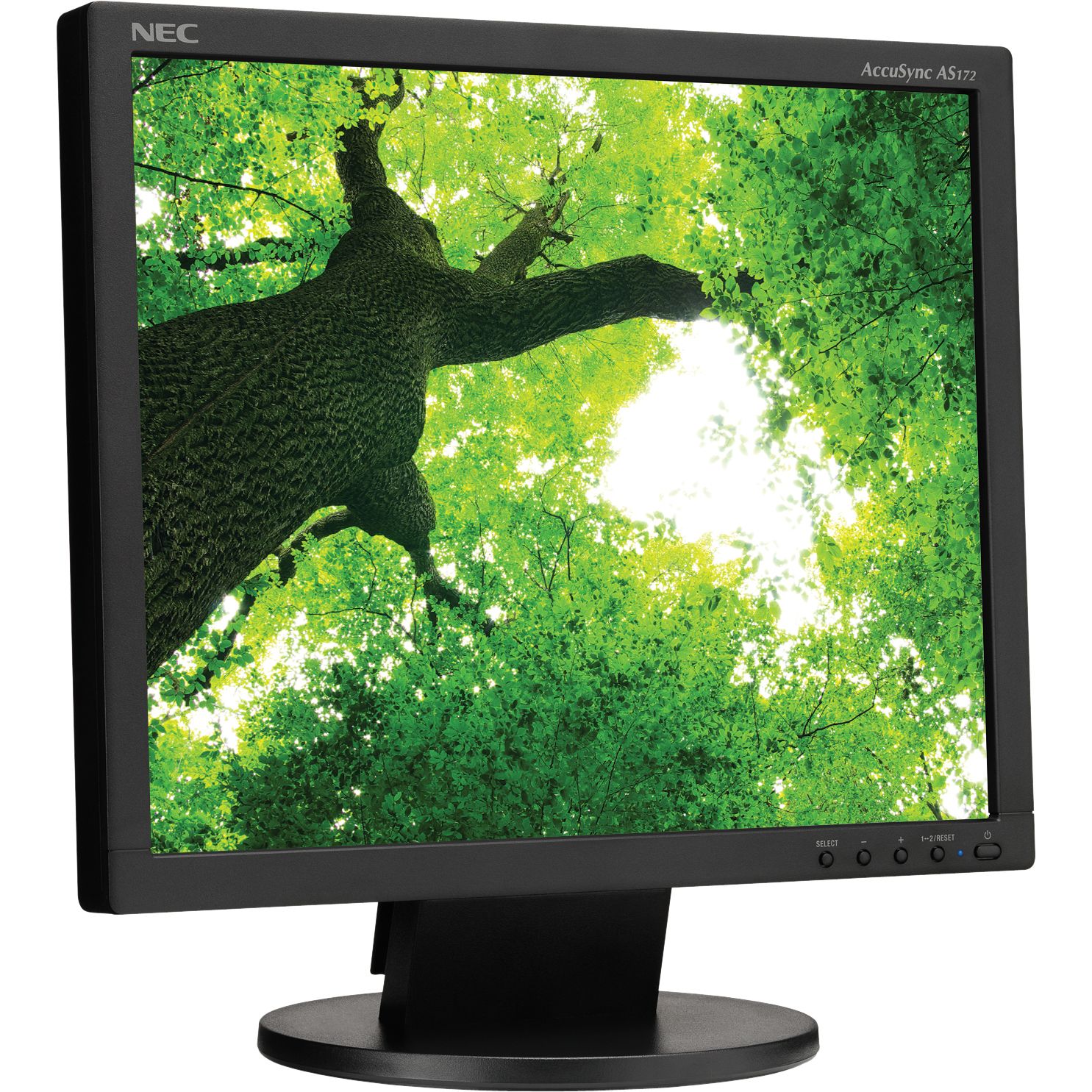

NEC AS172-BK Monitor

The NEC AS172-BK Monitor has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

NEC - 17" LED BACKLIT LCD MONITOR, 5:4, 1280 X 1024 , NAVISET, DIGITAL / ANALOG INPUTS, BLACK, 3 YEAR WARRANTY

5 ms response time makes it excellent for latest action films, sports or gaming
Get a wider viewing angle with 5:4 aspect ratio to watch movies or view two documents side by side
LED backlight enhances display performance that delivers an outstanding color range and contrast ratios
1,000:1 contrast ratio provides great execution for displaying the darkest black and brightest white
Furnishes captivating visuals with 250 Nit brightness levels
VESA mount compatibility allows you to mount the display on a wall or with a stand depending on your specific needs

Need a different version? See all NEC Parts Accessories

Discontinued Need Assistance?

Add to Quote

Overview

NEC Parts Accessory Model Overview

Products and parts from NEC.

NEC AS172-BK Monitor Overview

Enhance your desktop without breaking your budget with the 17" NEC AccuSync AS172, an LED backlit LCD desktop monitor featuring robust environmental features such as the Carbon Footprint Meter for tracking the conservation of green gas emissions and ECO Mode for significant power consumption savings. These advantages, combined with an ergonomic design and a high-contrast screen, make this model ideal for small-to-medium-sized business environments.

Detailed Specs

Technical Information

Number of Screens:

Screen Size Class:

17"

Viewable Screen Size:

17"

Screen Mode:

SXGA

Panel Technology:

Twisted Nematic Film (TN Film)

Response Time:

5 ms

Aspect Ratio:

5:4

Horizontal Viewing Angle:

170°

Vertical Viewing Angle:

170°

Adjustable Display Angle:

Yes

Mount Type:

Desk Mountable
Arm-mountable

Backlight Technology:

LED

HDCP Supported:

Yes

Features:

AccuColor
Display Power Management Signaling (DPMS)
Eco Mode
Carbon Footprint Meter
Intelligent Power Manager (IPM) System
Sync on Green

Horizontal Frequency:

81.10 kHz

Stand Included:

Yes

Video

Maximum Resolution:

1280 x 1024

Standard Refresh Rate:

76 Hz

Color Supported:

16.7 Million Colors

Contrast Ratio:

1,000:1

Brightness:

250 Nit

Interfaces/Ports

DVI:

Yes

VGA:

Yes

Power Description

Operating Power Consumption:

11 W

Standby Power Consumption:

150 mW

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

100 x 100

Color:

Black

Height:

12.2"

Width:

14.7"

Depth:

2.7"

Height with Stand:

14.70"

Width with Stand:

14.70"

Depth with Stand:

8.10"

Weight (Approximate):

6.39 lb

Weight with Stand (Approximate):

7.28 lb

Miscellaneous

Package Contents:

17" Value Desktop Monitor with LED Backlighting
Setup Sheet
User Manual
Power Cord
15-pin D-sub cable

Certifications & Standards:

ISO 9241-307 Class I

Platform Supported:

Energy Star:

Yes

Environmentally Friendly:

Yes

Environmental Certification:

ENERGY STAR 6.0
EPEAT Silver
TCO Certified Displays 6.0
RoHS

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0012302492575, 0805736052039, 0993242374445, 7426100347303

UPC: 012302492575, 805736052039, 993242374445

EAN: 0012302492575, 0805736052039, 0993242374445, 7426100347303

UNSPSC: 43211902

Reviews

Q&A

Questions? Get help from
a POS Expert!

The NEC AS172-BK Monitor is also known as AS172BK
