MultiTech MTCBA-E1-NAM Data Networking

The MultiTech MTCBA-E1-NAM Data Networking has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
MultiTech MultiModem rCell - MultiModem Cell Intelligent Wireless Router (Bundle, Edge 850/900/1800/1900MHz). All MultiTech products are Non-Cancelable and Non-Returnable.
Discontinued Need Assistance?
Add to Quote

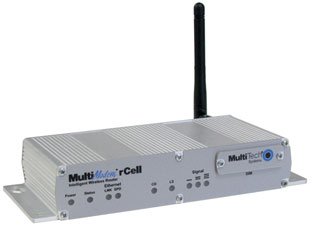

MultiTech MultiModem rCell Data Networking Model Overview
The MultiModem® rCell intelligent wireless routers offer secure data communication via the integrated cellular modem. These ready-to-deploy, standalone routers provide 2G and 3G, GSM and CDMA performance and integrate seamlessly with virtually any application. The intelligent embedded operating system allows for automatic/persistent connectivity for mission-critical applications and enhanced M2M (machine-to-machine) functionality. The MultiModem rCell intelligent wireless routers include 10/100BaseT Ethernet and RS-232 serial connectivity and can be desktop or panel mounted.

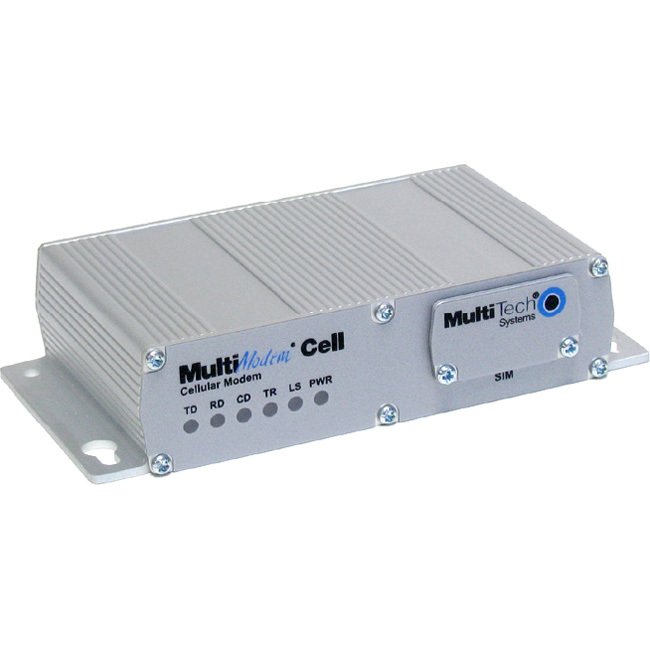

MultiTech MTCBA-E1-NAM Data Networking Overview

The MultiModem Cell cellular modems are ready-to-deploy, standalone 2G and 3G GSM and 2G CDMA modems that provide wireless data communication and integrate seamlessly with virtually any application. They are available with a broad range of interface options including RS-232/RS-422 and USB to cover all your application needs. The MultiModem Cell cellular modems are based on industry-standard open interfaces and can be desktop or panel mounted.

Physical Characteristics
Height:
1.1"
Width:
4.1"
Depth:
2.4"
Weight (Approximate):
6.40 oz
Miscellaneous
Package Contents:
  • MultiModem MTCBA-E1 Radio Modem
  • Antenna
  • Cable
  • Power Supply
  • Product CD
  • US Style Power Plug
Additional Information:
  • E-GPRS Class 12
  • GPRS Class 12
  • Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz
  • Supports Short Message Service such as text and PDU mode, point-to-point (MT/MO) and cell broadcast
  • Available with RS-232/RS-422 or USB 2.0 interfaces
  • Packet data up to 240K bps
  • Circuit-switched data up to 14.4K bps
  • SMA antenna connector and SIM socket
  • Configured using EDGE AT commands
  • Multiple LEDs provide ongoing operational status
  • Desktop or Panel Mounting
  • RF Antenna: 50 ohm SMA female Connector
  • SIM Card Slot
Certifications & Standards:
  • FCC Part 15
  • EN55022
  • EN55024
  • FCC Part 22, 24
  • RSS132,133
  • EN301 48901
  • EN301 48907
  • EN301 511
  • AS/ACIF S042.1, S042.3
  • UL6095001
  • cUL6095001
  • IEC6095001
  • PTCRB
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
  • REACH
  • China RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0789407350009, 0789407351839
UPC: 789407351839
EAN: 0789407350009, 0789407351839
UNSPSC: 43222628
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The MultiTech MTCBA-E1-NAM Data Networking is also known as MLT-MTCBAE1NAM
