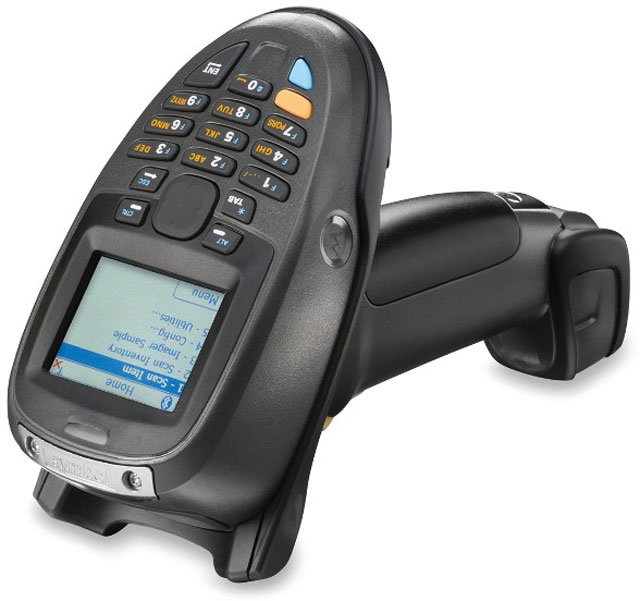

Motorola MT2090-HD0D62170WR Mobile Computer


(No reviews)

Be the first to

Write a Review

Save more when you buy multiple units
Buy 5-9 units and save 10%, 10-14 units save 15%,
for 15+ units contact us for extra savings

US orders only
Add to cart to set purchase quantity and see savings.

Motorola MT2090 - SCANNER ONLY. 2D Imager, High-Density, Wi-Fi/Bluetooth, Windows CE 5.0, Color Screen, Numeric Keypad. Interface cables and charging cradles sold separately. Single slot Bluetooth charging cradle (Part# STB2078-C10007WR) requires power supply (Part# PWR-BGA12V50W0WW) and AC Line cord (Part# 23844-00-00R). Quad charging cradle kit (Part# KT-STB2000-C4US).
802.11a/b/g Wireless Capability

Streamline scan-intensive data applications with the Motorola MT2090. Combining the simplicity of a scanner with the intelligence of a mobile computer, these handheld mobile terminals provide advanced 1D/2D barcode, DPM and image capture, as well as the ability to key in and view data. 802.11a/b/g, Bluetooth, corded and batch connectivity options provide the flexibility to meet a wide range of business needs, and the ergonomic yet rugged design offers comfortable, reliable operation throughout your environment. Built on the .Net platform for easy application development, the MT2090 also comes pre-loaded with inventory software and an MCL client to facilitate porting of legacy applications.

Technical Information

  • Scanner Range: High Density
  • Connectivity Technology: Batch
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete
  • Barcode Symbology Supported:
    • UPC/EAN
    • ISBN
    • Code 39
    • UCC/EAN-128,ISBT-128 Concatenated
    • Code 93
    • Codabar/NW7
    • MSI Plessey
    • Interleaved 2 of 5
    • ITF 2 of 5
    • Discrete 2 of 5 IATA
    • Chinese 2 of 5
    • GS1
    • DataBar
    • Base 32
    • TLC-39
    • Aztec
    • Maxicode
    • DataMatrix
    • QR code
    • PDF417
    • Composite Codes
    • US Postnet
    • Planet
    • UK Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • upu fics 4 State Postal
    • USPS 4CB

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MT2090
  • Product Name: MT2090 Mobile Computer

Physical Characteristics

  • Height: 7.8"
  • Width: 3.1"
  • Depth: 5"
  • Weight (Approximate): 13.50 oz


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Environmental Sealing: IP54
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1
    • EMI/RFI:
    • FCC Part 2 (SAR)
    • FCC Part 15 Subpart B Class B
    • RSS210
    • EU: EN 301-489-1
    • 489-17
    • Laser Safety:
    • IEC Class 2/FDA Class II in accordance with IEC60825-1/EN60825-1
  • Additional Information:
    • Region: World Wide
    • Tumble Specification: 250 3.2 ft./1m tumbles (500 drops)

Display & Graphics

  • Screen Mode: QVGA
  • Display Color: Color
  • Screen Resolution: 320 x 240

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 312 MHz
  • Processor Type: XScale

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g


  • Keyboard Type: Alphanumeric
  • Number of Keys: 21


  • Flash Memory: 64 MB
  • Standard Memory: 64 MB

Battery Information

  • Battery Capacity: 2400 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)


  • Operating System: Windows CE 5.0


  • Limited Warranty: 3 Year

Full specifications (PDF)


Customer Review Summary

Recommended Accessories for Model: Motorola MT2090 Mobile Computer
Motorola (SAC2000-4000CR)
Spare Battery Charger (4-Bay). Does not include Power supply (Part# KT-14000-148R) or AC Line Cord (Part# 23844-00-00R).
In Stock: Ships Same Day
+ Add to Quote
Motorola (KT-BTYMT-01R)
Spare battery for MT20x0. 3.7V, 2400 mAh.
In Stock: Ships Same Day
+ Add to Quote
Motorola (STB2078-C10007WR)
MT2000 Single Slot Bluetooth Cradle. Requires power supply and line cord.
In Stock: Ships Same Day
+ Add to Quote
Motorola (KT-STB2000-C1US)
Single slot charge only cradle with Active Sync kit. Includes power supply and line cord. USB Active Sync cable sold separately
In Stock: Ships Same Day
+ Add to Quote
Motorola (STB2000-C10017R)
STB2000 Single Slot Charge Only Cradle with ActiveSync, No Bluetooth. Power supply (Part# PWRS-14000-148R), US AC line cord (Part# 23844-00-00R) AND USB Active Sync cable (Part# CBA-U01-S07ZAR) are sold separately
In Stock: Ships Same Day
+ Add to Quote

The Motorola MT2090-HD0D62170WR is also known as SYM-MT2090HD0D62170R or MT2090HD0D62170WR .
