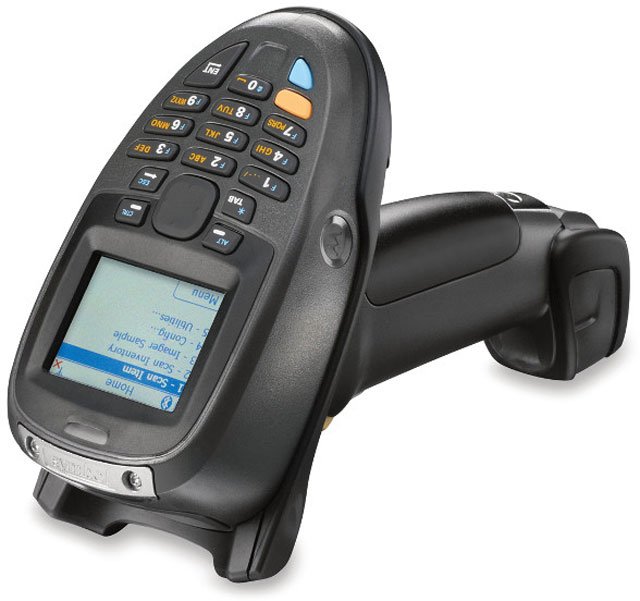

Motorola MT2090-HD4D62170WR Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Motorola MT2090 - Wi-Fi (802.11a/b/g), 2D Imager High Density Scanner, Windows CE 5.0, Bluetooth, Color Display, Numeric Keypad. Interface cables and charging cradle sold separately. For the full kit see (Part# KT-2090-HD2000C14W). Interface cables and charging cradles sold separately. Single slot Bluetooth charging cradle (Part# STB2078-C10007WR) requires power supply (Part# PWR-BGA12V50W0WW) and AC Line cord (Part# 23844-00-00R). Quad charging cradle kit (Part# KT-STB2000-C4US).

Save more when you buy multiple units
Buy 5-9 units and save 10%, 10-14 units save 15%,
for 15+ units contact us for extra savings

US orders only
Add to cart to set purchase quantity and see savings.

$828.00
In Stock:
Ships Same Day
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
802.11a/b/g Wireless Capability

Streamline scan-intensive data applications with the Motorola MT2090. Combining the simplicity of a scanner with the intelligence of a mobile computer, these handheld mobile terminals provide advanced 1D/2D barcode, DPM and image capture, as well as the ability to key in and view data. 802.11a/b/g, Bluetooth, corded and batch connectivity options provide the flexibility to meet a wide range of business needs, and the ergonomic yet rugged design offers comfortable, reliable operation throughout your environment. Built on the .Net platform for easy application development, the MT2090 also comes pre-loaded with inventory software and an MCL client to facilitate porting of legacy applications.

Technical Information

  • Scanner Range: High Density
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)

General Information

  • Product Type: Handheld Terminal
  • Product Series: MT2000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MT2090
  • Product Name: MT2090 Handheld Terminal

Physical Characteristics

  • Height: 7.8"
  • Width: 3.1"
  • Depth: 5"
  • Weight (Approximate): 13.50 oz

Interfaces/Ports

  • USB: Yes
  • Serial: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • IP54
    • FIPS 140-2
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1
    • EMI/RFI:
    • FCC Part 2 (SAR)
    • FCC Part 15 Subpart B - Class B
    • RSS210
    • EN 301-489-1, 489-17
    • Laser Safety:
    • IEC Class 2
    • FDA Class II in Accordance with IEC60825-1
    • EN60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 312 MHz
  • Processor Type: XScale PXA270

Display & Graphics

  • Screen Mode: QVGA
  • Display Color: Color
  • Screen Resolution: 320 x 240

Memory

  • Flash Memory: 64 MB
  • Standard Memory: 64 MB

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 21

Battery Information

  • Battery Capacity: 2400 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows CE 5.0

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model MT2090
Network Connectivity Bluetooth, 802.11g, 802.11a, 802.11a/b/g
Operating System Windows CE 5.0
Style Basic
Scanner Type Imager
Data Collection Type Wireless
Scanner Capability 2D


Customer Review Summary

Recommended Accessories for Model: Motorola MT2090 Mobile Computer
Motorola (SAC2000-4000CR)
Spare Battery Charger (4-Bay). Does not include Power supply (Part# KT-14000-148R) or AC Line Cord (Part# 23844-00-00R).
In Stock: Ships Same Day
$220.40
+ Add to Quote
Motorola (KT-BTYMT-01R)
Spare battery for MT20x0. 3.7V, 2400 mAh.
In Stock: Ships Same Day
$33.80
+ Add to Quote
Motorola (STB2078-C10007WR)
MT2000 Single Slot Bluetooth Cradle. Requires power supply and line cord.
In Stock: Ships Same Day
$275.00
+ Add to Quote
Motorola (KT-STB2000-C4US)
Cradle Kit (4-Slot, With Spare Battery Charging, Charge Only, Power supply and Line Cd)
In Stock: Ships Same Day
$509.20
+ Add to Quote
Motorola (KT-STB2000-C1US)
Single slot charge only cradle with Active Sync kit. Includes power supply and line cord. USB Active Sync cable sold separately
In Stock: Ships Same Day
$145.80
+ Add to Quote

The Motorola MT2090-HD4D62170WR is also known as MOT-MT2090HD4D621701 or MT2090HD4D62170WR .
