Motorola DS9808-LR7C1U16AR RFID Reader

Motorola DS9808-R - (with RFID 902 " 928 MHz) Long Range, USB Kit - USA, Canada, Mexico, Colombia, El Salvador and Guatemala only. Includes (Part# DS9808-LR20007C1WR) Scanner, (Part# CBA-U16-S08PAR) RFID USB Cable, (Part# PWRS-14000-148R) Power supply, (Part# 23844-00-00R) Line Cord.
Deploy the best of all worlds for a truly future-proof and cost-effective POS

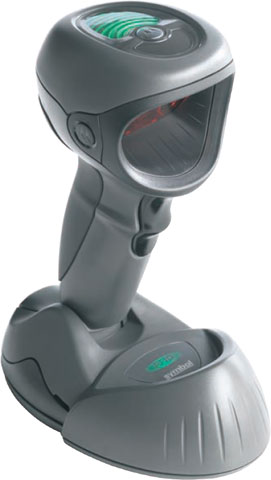

The Motorola DS9808-R is a ground-breaking data capture device that represents two Motorola firsts. The DS9808-R is not only the first combination 1D/2D barcode scanner and RFID reader, it also represents a new RFID product category - the first combination handheld/hands-free UHF RFID reader. Motorola's revolutionary imaging engine enables the capture of 1D and 2D barcodes as well as images and signatures, with record swipe speeds on both 1D and 2D barcodes. The DS9808-R also offers a new standard for barcode scanner reliability, providing the maximum uptime required in the demanding retail environment. The 4 ft./1.2 m drop to concrete drop specification ensures dependable performance in spite of the inevitable everyday drops and bumps.

Technical Information

  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Maximum Scan Resolution: 7.80 mil
  • Depth of Field:
    • 0 mil - 4.50"@5 mil - Code 39
    • 0 mil - 7"@10 mil - UPC/EAN
    • 0 mil - 8"@13 mil - UPC/EAN
    • 0 mil - 4.50"@6.60 mil - PDF417
    • 0 mil - 4.50"@10 mil - Datamatrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS9808-LR
  • Product Name: DS9808 Hybrid Presentation Imager

Physical Characteristics

  • Height: 8"
  • Width: 3.4"
  • Color: Twilight Black
  • Length: 5.4"
  • Weight (Approximate): 12 oz

Interfaces/Ports

  • Host Interface: Powered USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model DS9808-R
Interface USB
Frequency UHF
Scanner Type Imager
Style USB
