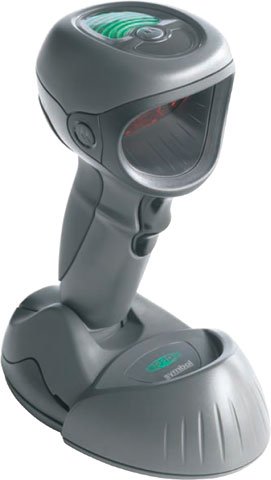

Motorola DS9808-LR20007C1WR RFID Reader
The Motorola DS9808-R is a ground-breaking data capture device that represents two Motorola firsts. The DS9808-R is not only the first combination 1D/2D barcode scanner and RFID reader, it also represents a new RFID product category - the first combination handheld/hands-free UHF RFID reader. Motorola's revolutionary imaging engine enables the capture of 1D and 2D barcodes as well as images and signatures, with record swipe speeds on both 1D and 2D barcodes. The DS9808-R also offers a new standard for barcode scanner reliability, providing the maximum uptime required in the demanding retail environment. The 4 ft./1.2 m drop to concrete drop specification ensures dependable performance in spite of the inevitable everyday drops and bumps.
Technical Information
- Barcode Dimension:
- 1D
- 2D
- Connectivity Technology: Cable
- Light Source: Laser
- Image Sensor: Imager
- Barcode Symbology Supported:
- 1D:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus Supplementals
- ISBN (Bookland)
- ISSN (Coupon Code)
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417 (and variants):
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D:
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- Postal:
- U.S. Postnet and Planet
- U.K. Post
- Japan Post
- Australian Post
- Netherlands KIX Code
- Royal Mail 4 State Customer
- UPU FICS 4 State Postal
- USPS 4CB
- 1D:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus Supplementals
- ISBN (Bookland)
- ISSN (Coupon Code)
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417 (and variants):
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D:
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- Postal:
- U.S. Postnet and Planet
- U.K. Post
- Japan Post
- Australian Post
- Netherlands KIX Code
- Royal Mail 4 State Customer
- UPU FICS 4 State Postal
- USPS 4CB
- Depth of Field:
- 0 mil - 5"@5 mil - Code 39
- 0 mil - 13.50"@10 mil - UPC/EAN (80%)
- 0 mil - 18"@13 mil - UPC/EAN (100%)
- 0 mil - 5"@6.60 mil - PDF417
- 0 mil - 6"@10 mil - Datamatrix
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: DS9808-R
- Product Name: DS9808-R Handheld Barcode Reader
Physical Characteristics
- Height: 8.5"
- Width: 3.5"
- Depth: 6"
- Color: Twilight Black
- Weight (Approximate): 1.02 lb
Interfaces/Ports
- Host Interface:
- USB
- Serial
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
Warranty
- Limited Warranty: 3 Year
Full specifications (PDF)| Brand | Motorola |
| Model | DS9808-R |
| Interface | USB |
| Style | Fixed, USB |
| Frequency | UHF |
| Scanner Type | Imager |
|
