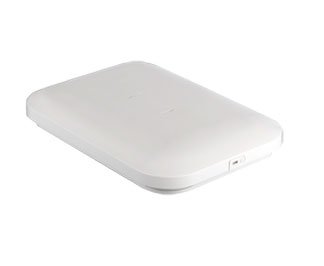

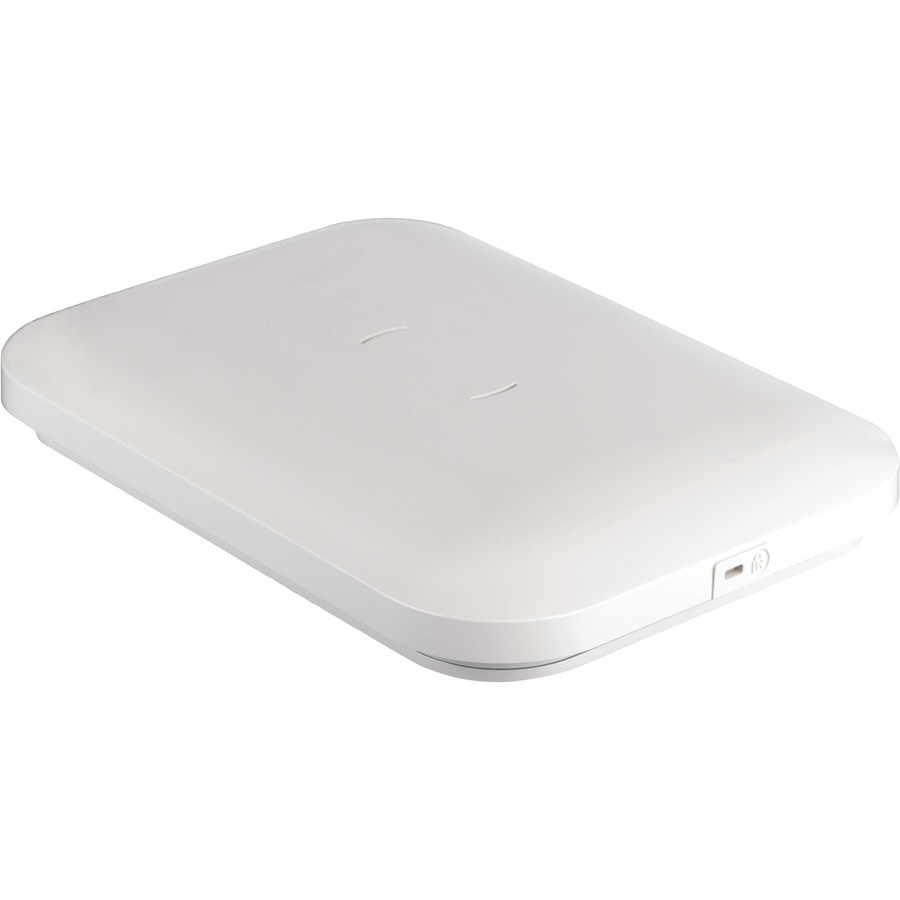

Motorola AP-8222-67030-WR Access Point

Motorola AP-7532-67030-WR Access Point A newer version of this item is available.
It is replaced by the Motorola AP-7532-67030-WR Access Point.
Motorola AP 8222 - 802.11ac Dual Radio Internal Antenna - Non-US Version.
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • With IEEE 802.11ac network technology and data transfer rate of up to 1.27 Gbit/s, enjoy superior HD media playback and lag-free gaming
  • Link your Wi-Fi traffic to your wired network with Fast Ethernet port
  • With PoE Port, transfer data and power from a single cable to places where a power outlet is not present
  • Its management capability provides efficient control over setup and configuration of your network
Read More

Need a different version? See all Motorola AP 8222 Access Points

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Motorola AP-8222-67030-WR Access Point
Motorola AP-8222-67030-WR Access Point Motorola AP-8222-67030-WR Access Point
Motorola AP-8222-67030-WR Access Point
Motorola AP-8222-67030-WR Access Point
Full specifications (PDF)
Motorola AP 8222 Access Point Model Overview
The AP 8222 makes it easy to deliver blazing Wi-Fi wireless access to the public. Whether you need to serve shoppers in a retail store, hotel guests or patients and their visitors in a hospital, the AP 8222 delivers Wi-Fi speeds up to four times the speed of 802.11n, allowing you to support virtually any number of mobile devices running the most demanding applications.
Motorola AP-8222-67030-WR Access Point Overview
SLEEK DESIGN DELIVERS NEXT GENERATION HIGH PERFORMANCE WI-FI IN YOUR MOST DESIGN-CONSCIOUS ENVIRONMENTS
Retail stores, hotels, hospitals and schools all have one thing in common. They all need to provide highspeed wireless connections not only for their own workers, but also to the customers, patients and students they serve - and performance expectations are at an all time high. At the same time, applications are becoming bandwidth-heavy: today's data applications are often rich with multimedia video calls are rapidly replacing voice calls.
Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11ac
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.18 GHz
UNII Maximum Frequency:
5.83 GHz
Total Number of Antennas:
3
Antenna Connector:
RP-SMA Connector
Wireless Transmission Speed:
1.27 Gbit/s
Wireless Security:
  • WPA2
  • WPA
MIMO Technology:
Yes
Features:
  • MIMO Technology
  • Quality of Service (QoS)
  • LED Indicator
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
Network (RJ-11):
No
PoE (RJ-45) Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
Yes
Management & Protocols
Management:
DHCP
Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
Height:
1.8"
Width:
6"
Depth:
9"
Weight (Approximate):
3.41 lb
Miscellaneous
Certifications & Standards:
Safety:
  • UL
  • cUL 60950-1
  • EN60950-1
  • UL2043
Radio Approvals:
  • FCC
  • EU
  • TELEC
IEEE Standards:
  • 802.11ac
  • 802.11n
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11d
  • 802.3af
  • 802.3at
  • 802.1x
  • 802.11i
  • 802.1p
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-8222-67030-WR Access Point is also known as MOT-AP822267030WR or AP-8222-67030-WR.
