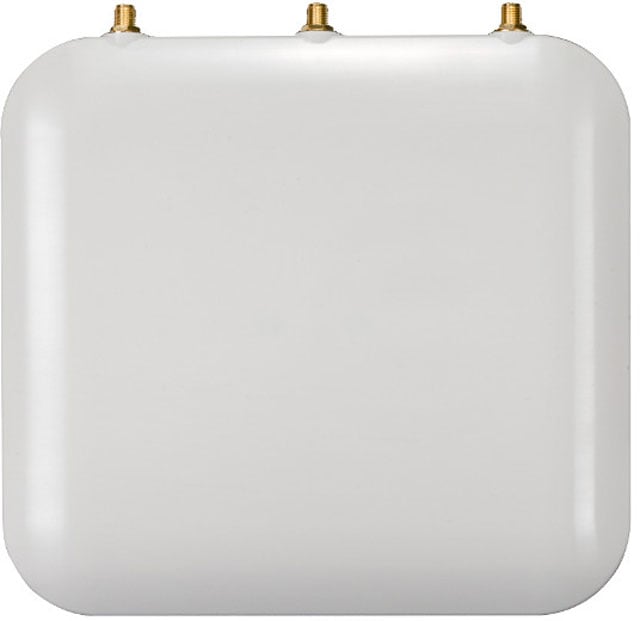

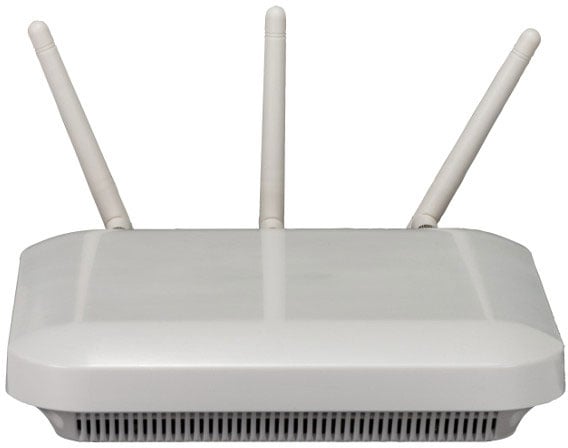

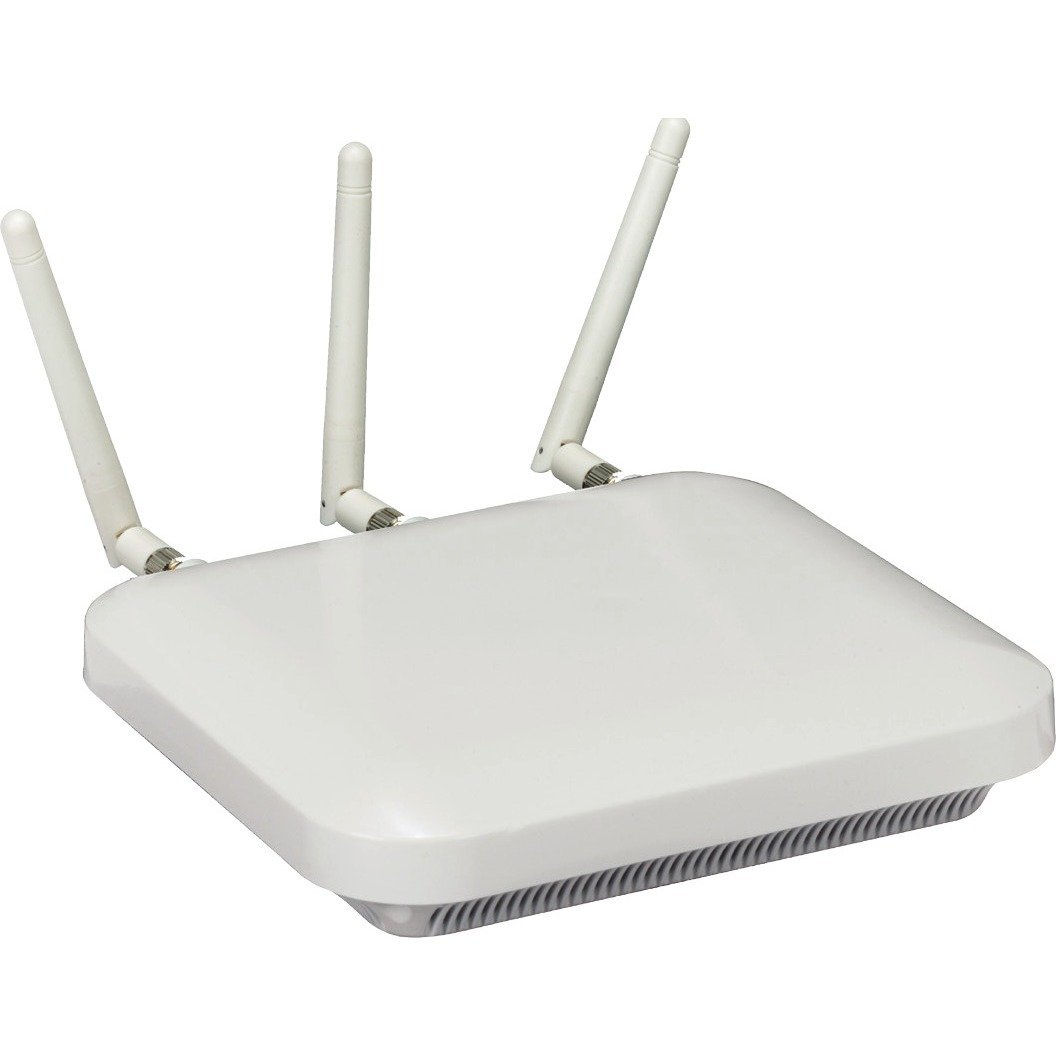

Motorola AP-7532-67030-WR Access Point

Motorola AP 7532 - Dual Radio, 802.11ac, 3x3, Internal Antenna, WR
  • With IEEE 802.11ac standard and up to 1.27 Gbit/s data transfer rates, this wireless access point enables efficient network performance
  • Ethernet port provides Ethernet connections for fast data transfer and large file transfers between your access point and wired network
  • Its management capability provides efficient control over setup and configuration of your network
Read More

Full specifications (PDF)

802.11ac Wi-Fi Access Point: 3x3 MIMO with three spatial steams
Finally - maximum 802.11ac speed at an affordable price point. Now you can deliver dependable blazing desktop-style wireless speed to all your users on all their devices and all their applications with the AP 7532 access point. You get a comprehensive feature set, 3X3 MIMO and high-powered radios that mean you"ll need fewer access points, driving costs down even further. And with its sleek, understated look, the internal antenna version of the AP 7532 is at home anywhere in your environment "" including customer-facing public spaces.
Motorola AP-7532-67030-WR Overview

GET BLAZING 802.11AC WI-FI SPEED AND THROUGHPUT TO SUPPORT ALL YOUR USERS AND APPLICATIONS - ALL AT A LOW COST .

You need more out of your wireless LAN - you need to support more wireless users and more of today's extremely demanding voice and data applications. You need the ultimate performance and bandwidth that 802.11ac can deliver, but cost has been an issue - until today.

Now, you can get maximum 802.11ac performance at a minimum cost with the AP 7532 from Motorola Solutions. The AP 7532 is packed with a comprehensive feature set that delivers today's fastest available Wi-Fi speeds. No matter how many users are on your WLAN or what applications they are using, they can count on dependable blazing desktop-style speed. The next generation 802.11ac radio delivers up to four times the speed of 802.11n. The 802.11n radio ensures backward compatibility with every mobile device in use in your operation today - and advanced technology helps boost the bandwidth of the 802.11n radio to 802.11ac levels. If you need sensor capability, you get the flexibility to meet different business needs - you can deploy a single AP 7532 as both a sensor and an access point for maximum cost-efficiency, or as a dedicated sensor for the most robust sensing functionality. No matter where you need 802.11ac speed, the AP 7532 will fit right in, from customer-facing public spaces to the warehouse floor. Choose internal antennas for a sleek understated look that is ideal in customer facing or carpeted office areas, or external antennas that allow you to choose the antennas that will deliver maximum range and performance in demanding industrial areas. And with our high-powered radios, you'll need fewer access points. The result? Maximum capacity and performance for your wireless LAN - at a new low cost.

Protect Your Product

Full specifications (PDF)

Technical Information
Wireless LAN Standard:
IEEE 802.11ac
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.18 GHz
UNII Maximum Frequency:
5.85 GHz
Antenna Gain:
  • 4 dBi
  • 6 dBi
Wireless Transmission Speed:
1.27 Gbit/s
Wireless Security:
  • WPA2
  • WPA
Features:
  • MIMO Technology
  • Quality of Service (QoS)
  • LED Indicator
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
Yes
Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
1.6"
Width:
6.5"
Depth:
7.1"
Weight (Approximate):
1.80 lb
Miscellaneous
Certifications & Standards:
Safety:
  • UL
  • cUL 60950-1
  • IEC
  • EN60950-1
  • UL2043
Radio Approvals:
  • FCC
  • EU
  • TELEC

IEEE Standards:

  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.11ac
  • 802.11d
  • 802.11i
  • 802.3af
  • 802.3
  • 802.1q
  • 802.1x
  • 802.1p
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN: 0886201336731
UPC: 886201336731
EAN: 0886201336731
UNSPSC: 43222631


The Motorola AP-7532-67030-WR is also known as MOT-AP753267030WR or AP753267030WR .
