Motorola AP-7161-66040-WR Wireless Access Points

Part Number: AP-7161-66040-WR
Model: AP 7161
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.40 GHz

Product Description:

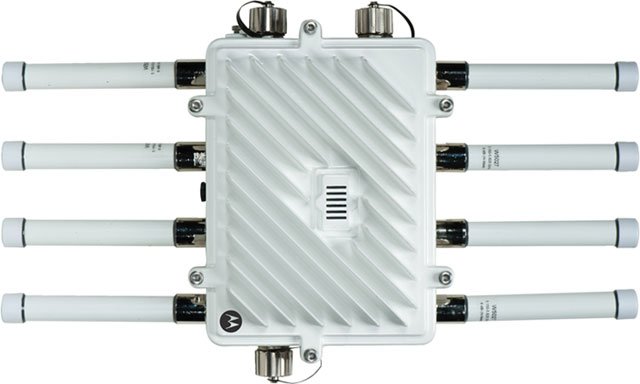

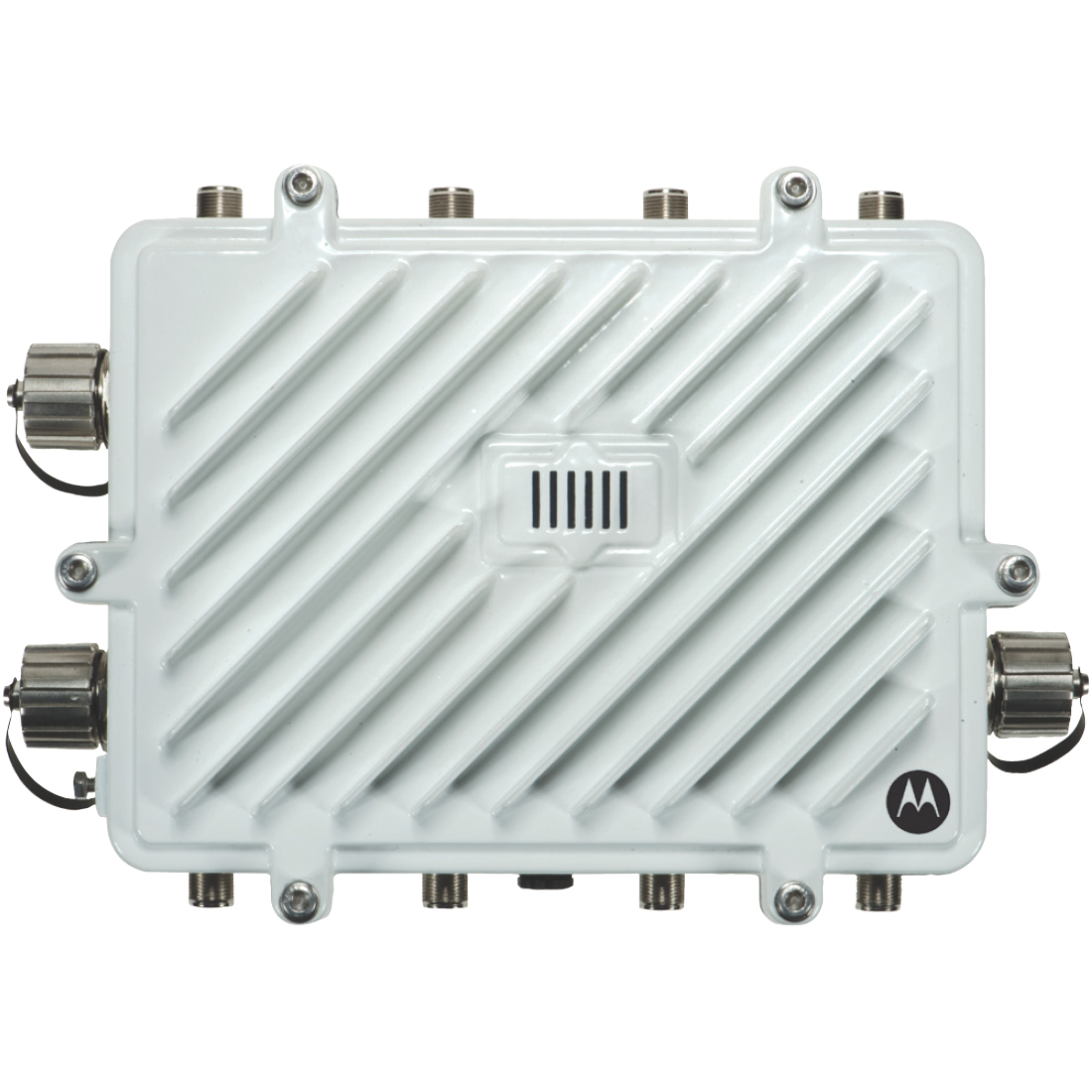

  AP 7161 Outdoor Mesh Access Point (802.11n Ap, Intl)
Explore all Motorola AP 7161 Wireless Access Points
Add to Quote
Motorola AP-7161-66040-WR Wireless Access Points
Motorola AP-7161-66040-WR Wireless Access Points
Motorola AP-7161-66040-WR Wireless Access Points
Motorola AP-7161-66040-WR Wireless Access Points
Motorola AP-7161-66040-WR Wireless Access Points
Motorola AP-7161-66040-WR Wireless Access Points
Motorola AP-7161-66040-WR Wireless Access Points Motorola AP-7161-66040-WR Wireless Access Points Motorola AP-7161-66040-WR Wireless Access Points Motorola AP-7161-66040-WR Wireless Access Points Motorola AP-7161-66040-WR Wireless Access Points Motorola AP-7161-66040-WR Wireless Access Points
Full specifications (PDF)

Motorola AP 7161 Wireless Access Points Model Overview

Perfect for extending network coverage to outside areas, the AP 7161 brings the latest 802.11n 3x3 MIMO tri-radio design together with the rugged outdoor performance. True perimeter security is provided using either a dedicated dual-band sensor or software mode for both 2.4GHz and 5GHz bands to deliver 24x7 rogue detection and termination. The AP 7161 is optimized with WiNG 5 intelligence at the edge extending QoS, security, and mobility services to the access point so you get better capacity and performance. The AP 7161 is ideal for industrial, enterprise campus, video surveillance, public safety, and smartgrid utility deployments to extend to the outdoors.
Motorola AP-7161-66040-WR Wireless Access Points Overview

Perfect for extending network coverage to outside areas, the AP 7161 brings the latest 802.11n 3x3 MIMO tri-radio design together with the rugged outdoor performance. True perimeter security is provided using either a dedicated dual-band sensor or software mode for both 2.4GHz and 5GHz bands to deliver 24x7 rogue detection and termination. The AP 7161 is optimized with WiNG 5 intelligence at the edge extending QoS, security, and mobility services to the access point so you get better capacity and performance. The AP 7161 is ideal for industrial , enterprise campus, video surveillance, public safety, and smartgrid utility deployments to extend to the outdoors.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
4.94 GHz
UNII Maximum Frequency:
5.83 GHz
Antenna Connector:
N-Type
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • Stateful Firewall
  • IP filtering
  • NAT
  • IEEE 802.1X
  • IEEE 802.11i
  • WPA2
  • WPA
Features:
  • MIMO Technology
  • Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
Yes
VGA:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
Yes
Management & Protocols
Management:

DHCP

Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
  • Pole-mountable
  • Wall Mountable
Height:
8.9"
Width:
12.6"
Depth:
3.9"
Weight (Approximate):
6.40 lb
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43222631
