Motorola AP-7161-66040-EU Access Point

The Motorola AP-7161-66040-EU Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

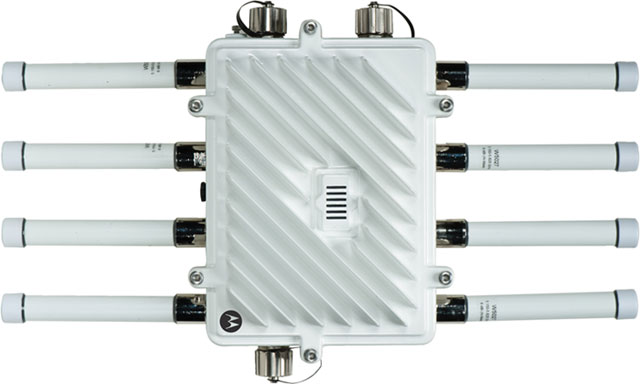

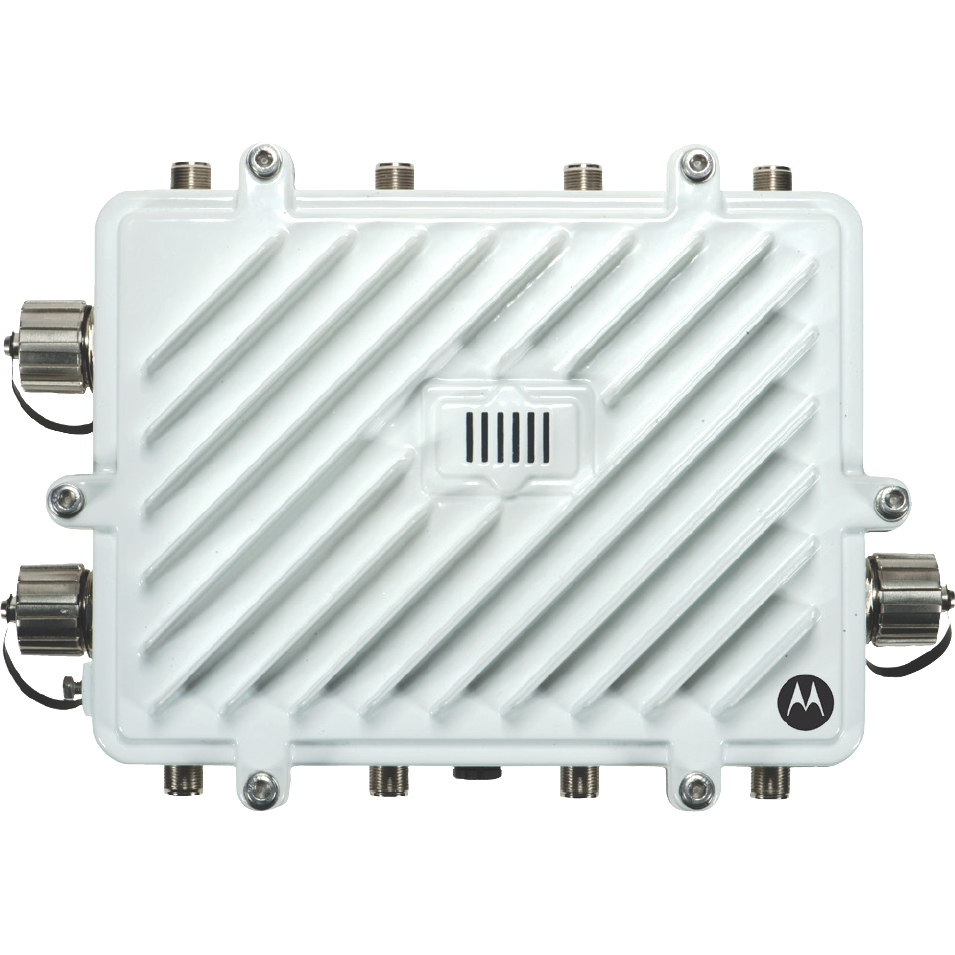

Motorola AP 7161 - AP-7161 Outdoor Mesh Access Point (802.11n AP, EU)
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • With IEEE 802.11n network technology and data transfer rate of up to 300 Mbit/s, enjoy superior HD media playback and lag-free gaming
  • Ethernet port provides Ethernet connections for fast data transfer and large file transfers between your access point and wired network
  • Its management capability provides efficient control over setup and configuration of your network
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Motorola AP 7161 Access Point Model Overview
Perfect for extending network coverage to outside areas, the AP 7161 brings the latest 802.11n 3x3 MIMO tri-radio design together with the rugged outdoor performance. True perimeter security is provided using either a dedicated dual-band sensor or software mode for both 2.4GHz and 5GHz bands to deliver 24x7 rogue detection and termination. The AP 7161 is optimized with WiNG 5 intelligence at the edge extending QoS, security, and mobility services to the access point so you get better capacity and performance. The AP 7161 is ideal for industrial, enterprise campus, video surveillance, public safety, and smartgrid utility deployments to extend to the outdoors.
Motorola AP-7161-66040-EU Access Point Overview

Breakthrough your walls and extend to the outdoors with WiNG 5 and the AP 7161, delivering ruggedized outdoor performance and the ability to defend your perimeters from intrusion. AP7161 brings together the latest in 802.11n 3x3 MiMO tri-radio design with 24x7 Intrusion protection system AirDefense both in software and dedicated sensor radio support, big things can come in small packages.

Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
4.94 GHz
UNII Maximum Frequency:
5.83 GHz
Antenna Connector:
N-Type
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • WPA
  • WPA2
  • Stateful Firewall
  • IP Filtering
  • NAT
  • IEEE 802.1x
  • IEEE 802.11i
Features:
  • MIMO Technology
  • Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
No
VGA:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
Yes
Management & Protocols
Management:

DHCP

Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
  • Pole-mountable
  • Wall Mountable
Height:
8.9"
Width:
12.6"
Depth:
3.9"
Weight (Approximate):
6.40 lb
Item Numbers
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-7161-66040-EU Access Point is also known as MOT-AP716166040EU
