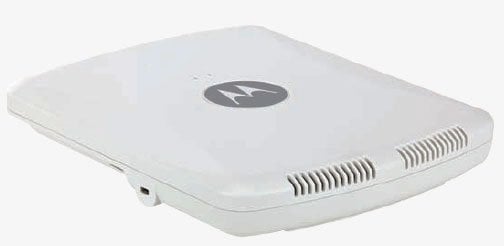

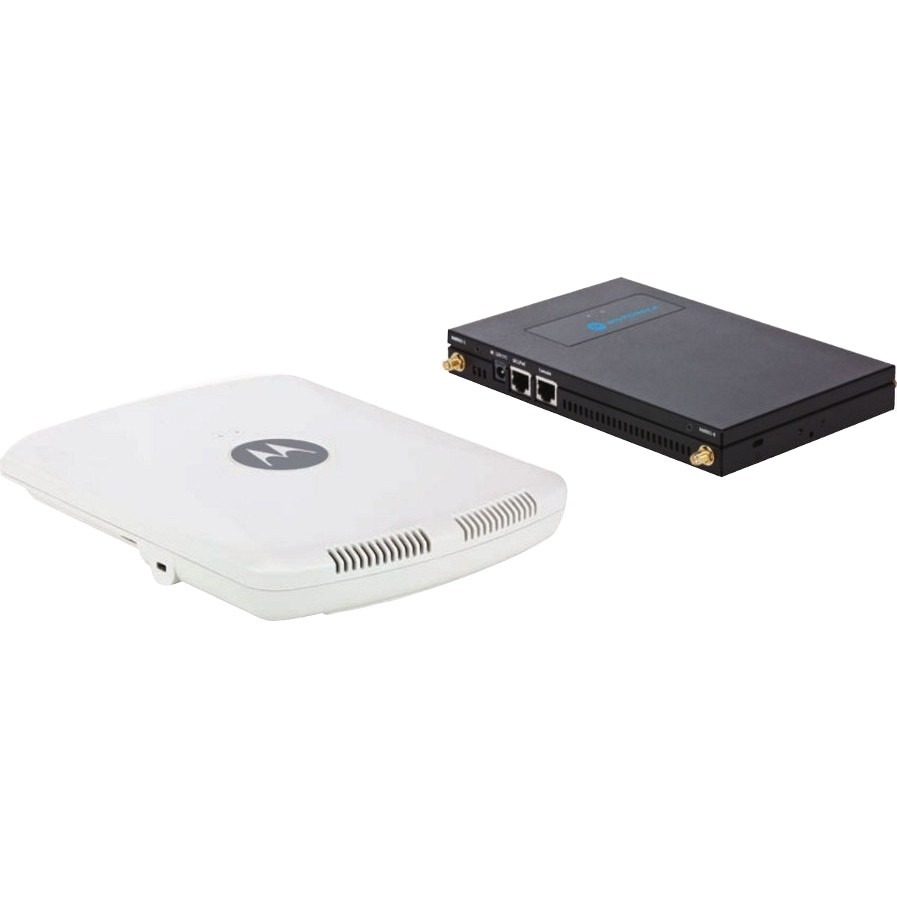

Motorola AP-6522E-66040-US Wireless Access Points

Part Number: AP-6522E-66040-US
Model: AP 6522
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.41 GHz

Product Description:

  WING EXPRESS, DUAL RADIO 802.11N ACCESS POINT, 4 EXTERNAL ANTENNA CONNECTORS, REQUIRES ANTENNAS, US ONLY
Explore all Motorola AP 6522 Wireless Access Points
Add to Quote
Motorola AP-6522E-66040-US Wireless Access Points
Motorola AP-6522E-66040-US Wireless Access Points
Motorola AP-6522E-66040-US Wireless Access Points Motorola AP-6522E-66040-US Wireless Access Points
Full specifications (PDF)

Motorola AP 6522 Wireless Access Points Model Overview

Designed for small offices and retail locations, the AP 6522 can handle the increasing number of Wi-Fi-enabled devices and bandwidth-heavy applications connecting to your wireless network. The AP 6522 is a site-survivable wireless access point that does not require a controller. With its WiNG 5 intelligence, the AP 6522 can also serve as a virtual controller and coordinate the operation of up to 24 neighboring access points. It connects to other access points in a mesh topology to enable the extension of wireless network coverage to areas where Ethernet cabling is cost prohibitive or otherwise impractical.
Motorola AP-6522E-66040-US Wireless Access Points Overview

Designed for small offices and retail locations, the AP 6522 can handle the increasing number of Wi-Fi enabled devices and bandwidth heavy applications connecting to your wireless network. The AP 6522 is a site survivable wireless access point that does not require a controller. With it's WiNG 5 intelligence, this access point offers higher throughput along with direct forwarding, security, QoS services and site survivability. The AP 6522 can also serve as a virtual controller and coordinate the operation of up to 24 neighboring access points.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.20 GHz
UNII Maximum Frequency:
5.83 GHz
Antenna Gain:
  • 3.9 dBi
  • 4.4 dBi
  • 7.5 dBi
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • Stateful Packet Filtering Firewall
  • AAA Radius Services
  • Wireless IPS-Lite
  • VPN Gateway
  • Location-Based Access Control
Features:
  • MIMO Technology
  • Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
No
VGA:
No
HDMI:
No
Audio Line Out:
No
Management Port:
Yes
Power Description
Input Voltage:
  • 12 V DC
  • 48 V DC
Physical Characteristics
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
Height:
1"
Width:
5"
Depth:
7.8"
Weight (Approximate):
1.75 lb
Miscellaneous
Certifications & Standards:
Product Safety Certifications:
  • UL 60950
  • cUL
  • EU EN 60950
  • TUV
  • UL 2043
Radio Approvals:
  • FCC (USA)
  • Industry Canada
  • CE (Europe)
IEEE Standards:
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.3af
Item Numbers
GTIN: 0783555019856, 0880959830855, 0886201638736
UPC: 783555019856, 880959830855, 886201638736
EAN: 0783555019856, 0880959830855, 0886201638736
UNSPSC: 43222631
