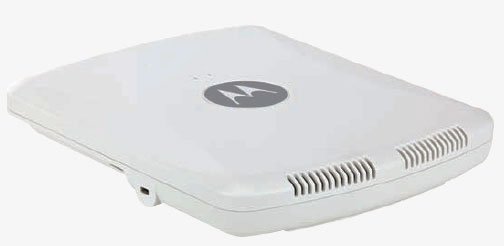

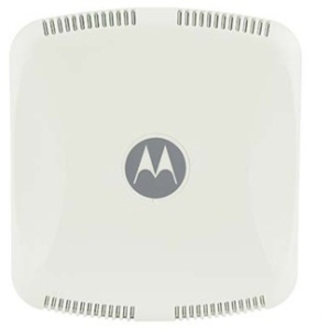

Motorola AP-6522E-66030-WR Wireless Access Points

Part Number: AP-6522E-66030-WR
Model: AP 6522
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.41 GHz

Product Description:

  AP 6522: EXPRESS 802.11N AP, Internal Antenna WR
Explore all Motorola AP 6522 Wireless Access Points
Add to Quote
Motorola AP-6522E-66030-WR Wireless Access Points
Motorola AP-6522E-66030-WR Wireless Access Points
Motorola AP-6522E-66030-WR Wireless Access Points
Motorola AP-6522E-66030-WR Wireless Access Points Motorola AP-6522E-66030-WR Wireless Access Points Motorola AP-6522E-66030-WR Wireless Access Points
Full specifications (PDF)

Motorola AP 6522 Wireless Access Points Model Overview

Designed for small offices and retail locations, the AP 6522 can handle the increasing number of Wi-Fi-enabled devices and bandwidth-heavy applications connecting to your wireless network. The AP 6522 is a site-survivable wireless access point that does not require a controller. With its WiNG 5 intelligence, the AP 6522 can also serve as a virtual controller and coordinate the operation of up to 24 neighboring access points. It connects to other access points in a mesh topology to enable the extension of wireless network coverage to areas where Ethernet cabling is cost prohibitive or otherwise impractical.
Motorola AP-6522E-66030-WR Wireless Access Points Overview
Designed for small offices and retail locations, the AP 6522E can handle the increasing number of Wi-Fi enabled devices and bandwidth heavy applications connecting to your wireless network. The AP 6522E is a site survivable wireless access point that does not require a controller. With it's WiNG Express intelligence, this access point offers higher throughput along with direct forwarding, security, QoS services and site survivability. The AP 6522E can also serve as a virtual controller and coordinate the operation of up to 24 access points.
Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.18 GHz
UNII Maximum Frequency:
5.83 GHz
Total Number of Antennas:
2
Number of Internal Antennas:
2
Antenna Gain:
  • 3.9 dBi
  • 4.4 dBi
  • 7.5 dBi
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
SSID
Features:
  • LED Indicator
  • Quality of Service (QoS)
  • MIMO Technology
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Network (RJ-11):
No
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No
Management & Protocols
Management:
  • QoS
  • VLAN
Power Description
Input Voltage:
  • 12 V DC
  • 48 V DC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
1.1"
Width:
7.5"
Depth:
9.5"
Weight (Approximate):
13.60 oz
Miscellaneous
Certifications & Standards:
Safety:
  • UL 60950
  • cUL
  • EU EN 60950
  • TUV
Radio Approvals:
  • FCC
  • CE
  • TELEC
IEEE Standards:
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
Item Numbers
GTIN: 0886201504666
UPC: 886201504666
EAN: 0886201504666
UNSPSC: 43222631
