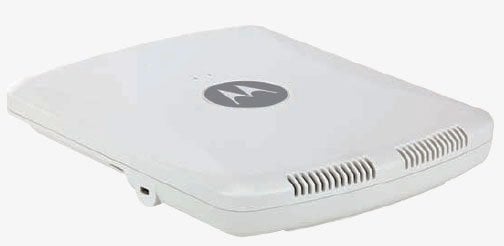

Motorola AP-6522-66040-US Access Point

The Motorola AP-6522-66040-US Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Motorola AP 6522 - 802.11n independent access port dual radio external antenna version. For use in US only.
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • With IEEE 802.11n standard and up to 300 Mbit/s data transfer rates, this wireless access point enables efficient network performance
  • Gigabit Ethernet port for ultra-fast wired network speeds
  • Its management capability provides efficient control over setup and configuration of your network
Read More

Need a different version? See all Motorola AP 6522 Access Points

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Motorola AP-6522-66040-US Access Point
Motorola AP-6522-66040-US Access Point Motorola AP-6522-66040-US Access Point Motorola AP-6522-66040-US Access Point
Motorola AP-6522-66040-US Access Point
Motorola AP-6522-66040-US Access Point
Motorola AP-6522-66040-US Access Point
Full specifications (PDF)
Motorola AP 6522 Access Point Model Overview
Designed for small offices and retail locations, the AP 6522 can handle the increasing number of Wi-Fi-enabled devices and bandwidth-heavy applications connecting to your wireless network. The AP 6522 is a site-survivable wireless access point that does not require a controller. With its WiNG 5 intelligence, the AP 6522 can also serve as a virtual controller and coordinate the operation of up to 24 neighboring access points. It connects to other access points in a mesh topology to enable the extension of wireless network coverage to areas where Ethernet cabling is cost prohibitive or otherwise impractical.
Motorola AP-6522-66040-US Access Point Overview

Designed for small offices and retail locations, the AP 6522 can handle the increasing number of Wi-Fi enabled devices and bandwidth heavy applications connecting to your wireless network. The AP 6522 is a site survivable wireless access point that does not require a controller. With it's WiNG 5 intelligence, this access point offers higher throughput along with direct forwarding, security, QoS services and site survivability. The AP 6522 can also serve as a virtual controller and coordinate the operation of up to 24 neighboring access points.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.20 GHz
UNII Maximum Frequency:
5.83 GHz
Total Number of Antennas:
2
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • Stateful Packet Filtering Firewall
  • Wireless IPS-lite
  • AAA
  • RADIUS
  • IDS
  • IPS
Features:
  • Quality of Service (QoS)
  • MIMO Technology
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
Yes
Power Description
Input Voltage:
  • 48 V DC
  • 12 V DC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Weight (Approximate):
1.75 lb
Miscellaneous
Certifications & Standards:
  • UL 60950
  • cUL
  • EU EN 60950
  • TUV
  • UL 2043
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Item Numbers
GTIN: 0024606618728, 0132017850474, 0783555035641
UPC: 024606618728, 132017850474, 783555035641
EAN: 0024606618728, 0132017850474, 0783555035641
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-6522-66040-US Access Point is also known as MOT-AP652266040US or AP-6522-66040-US.
