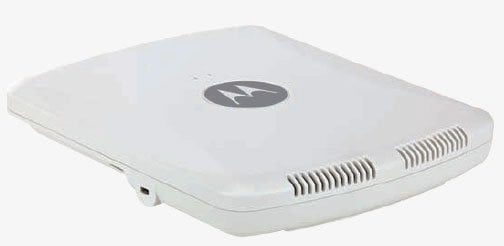

Motorola AP-6522-66030-EU Wireless Access Points

Part Number: AP-6522-66030-EU
Model: AP 6522
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.41 GHz

Product Description:

  Zebra 6522 IEEE 802.11n 300 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Wall Mountable, Ceiling Mountable
Explore all Motorola AP 6522 Wireless Access Points
Add to Quote
Motorola AP-6522-66030-EU Wireless Access Points
Motorola AP-6522-66030-EU Wireless Access Points
Motorola AP-6522-66030-EU Wireless Access Points Motorola AP-6522-66030-EU Wireless Access Points
Full specifications (PDF)

Motorola AP 6522 Wireless Access Points Model Overview

Designed for small offices and retail locations, the AP 6522 can handle the increasing number of Wi-Fi-enabled devices and bandwidth-heavy applications connecting to your wireless network. The AP 6522 is a site-survivable wireless access point that does not require a controller. With its WiNG 5 intelligence, the AP 6522 can also serve as a virtual controller and coordinate the operation of up to 24 neighboring access points. It connects to other access points in a mesh topology to enable the extension of wireless network coverage to areas where Ethernet cabling is cost prohibitive or otherwise impractical.
Motorola AP-6522-66030-EU Wireless Access Points Overview

Cost-effectively support the increase in WLAN traffic from BYOD, real-time video streaming and voice applications

Designed for small offices and retail locations, the AP 6522 can handle the increasing number of Wi-Fi-enabled devices and bandwidth-heavy applications connecting to your wireless network. The AP 6522 is a site-survivable wireless access point that does not require a controller. With its WiNG 5 intelligence, the AP 6522 can also serve as a virtual controller and coordinate the operation of up to 24 neighboring access points. It connects to other access points in a mesh topology to enable the extension of wireless network coverage to areas where Ethernet cabling is cost prohibitive or otherwise impractical.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.20 GHz
UNII Maximum Frequency:
5.83 GHz
Antenna Gain:
  • 4.4 dBi
  • 7.5 dBi
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • Stateful Packet Filtering Firewall
  • AAA RADIUS
  • VPN Gateway
  • Location-based Access Control


Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Management & Protocols
Management:
VLAN
Power Description
Input Voltage:
  • 12 V DC
  • 48 V DC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
1.1"
Width:
7.5"
Depth:
9.5"
Weight (Approximate):
13.60 oz
Item Numbers
GTIN: 5054484243106, 5712505266106
EAN: 5054484243106, 5712505266106
UNSPSC: 43222631
