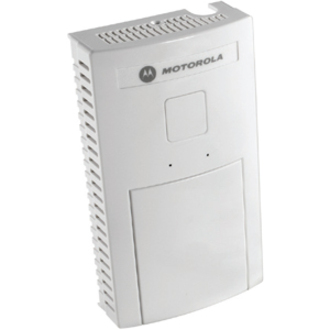

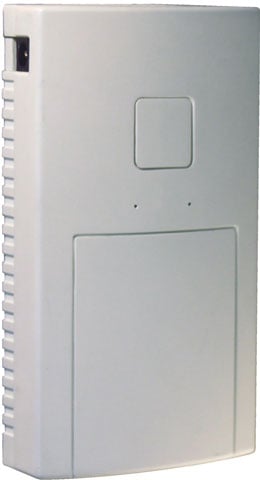

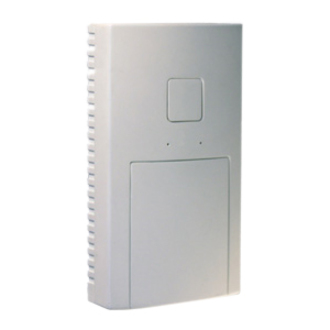

Motorola AP-6511-60010-WR Access Point


0.0

(No reviews)

Be the first to

Write a Review
Motorola AP-6511 - Low Profile Access Point (Single Radio, 2.4/5.0 GHz 802.11n, Ethernet Wallplate, World Wide)
Reduces total cost of installation using standard Power-over-Ethernet.

The Motorola AP 6511 is expressly designed for one of the most challenging wireless LAN environments - dormitory and hotel guest rooms. Standard service personnel can install the AP 6511 in minutes, not hours, using existing category 5 or 6 cabling already in the walls. The installation is predictable and repeatable - two key reasons the AP 6511 will dramatically lower the installation time and cost of a room wireless LAN. The AP's sleek "hide in sight" design and minute size match the decor of any room. The AP 6511 includes intelligent self-optimizing Controller AP code, which allows a small property to gain the benefits of a central controller - automatic adoption, central configuration and status, and automatic RF management - without the cost of a dedicated RF switch. For larger properties and facilities, the AP 6511 can be managed by Motorola's Wi-NG-based RF switches for very high scalability and seamless integration with other indoor and outdoor 802.11n access points.

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.14 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Antenna Gain: 3.5 dBi
  • Antenna Type: Omnidirectional Antenna
  • Total Number of Antennas: 2
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.85 GHz
  • Features:
    • Quality of Service (QoS)
    • MIMO Technology
  • Wireless Security:
    • WEP static
    • WEP Dynamic
    • IEEE 802.1x
    • WPA/TKIP Personal and Enterprise
    • WPA2/TKIP/AES Personal and Enterprise

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP-6511
  • Product Name: AP-6511 Wireless Outdoor Access Point

Physical Characteristics

  • Height: 10"
  • Width: 5"
  • Depth: 3"
  • Form Factor: Wall Mountable
  • Weight (Approximate): 12 oz

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Number of Network (RJ-45) Ports: 2
  • PoE (RJ-45) Port: Yes

Power Description

  • Input Voltage: 48 V DC
  • Power Source: AC Adapter

Management & Protocols

  • Management: VLAN

Full specifications (PDF)
