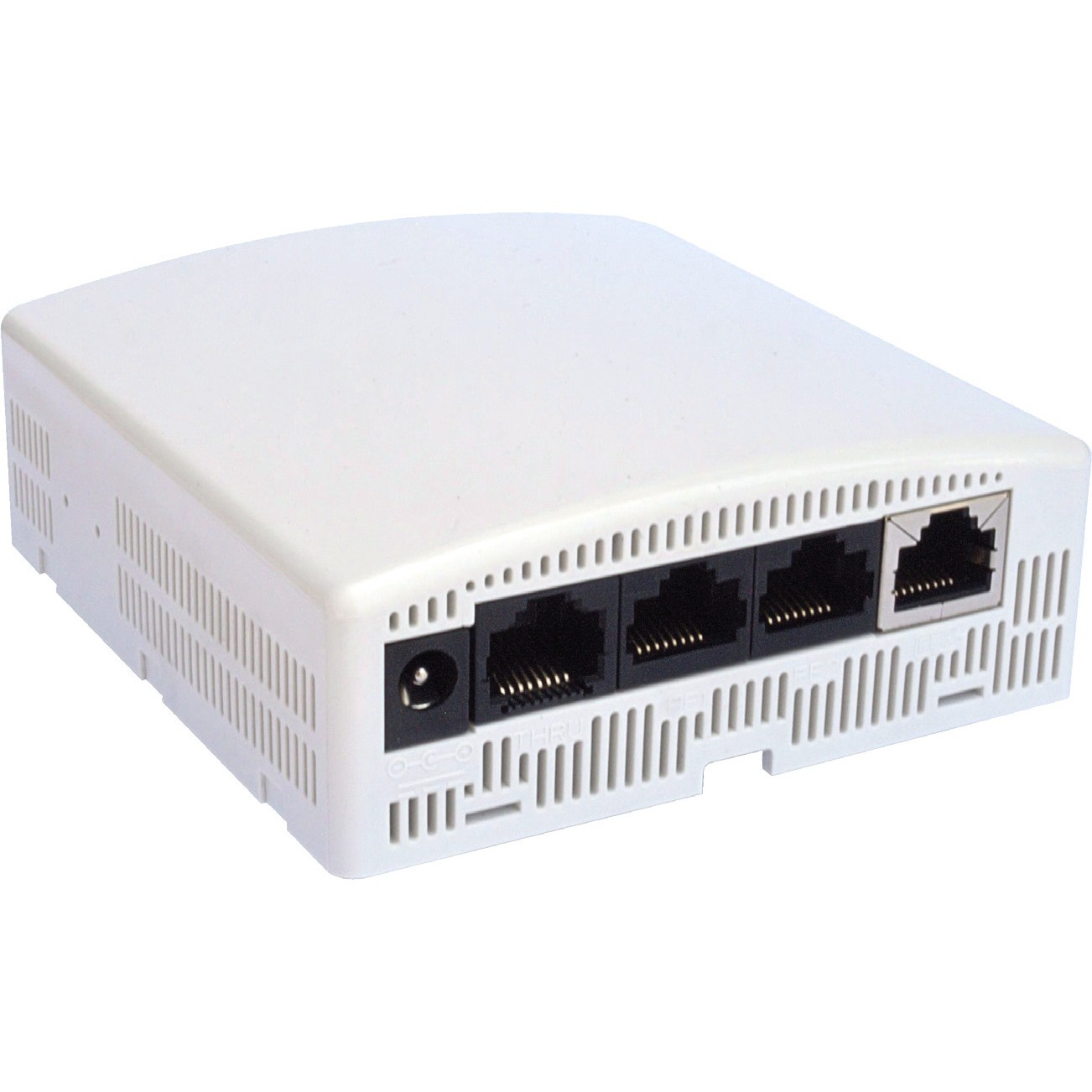

Motorola AP-7502-67030-WR Access Point

The Motorola AP-7502-67030-WR Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Motorola AP 7502 - Wallplate 802.11n/ac, Dual Radio, Worldwide Version
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • Ensure speedy data transfer of up to 867 Mbit/s with the IEEE 802.11ac wireless technology
  • Ethernet port provides Ethernet connections for fast data transfer and large file transfers between your access point and wired network
Read More
Discontinued Need Assistance?
Add to Quote
Motorola AP 7502 Access Point Model Overview
Introducing the easiest and most cost-effective way to deliver high-speed wireless connectivity in hotel and patient rooms, classrooms and apartments — the AP 7502 packs the power of 802.11ac into a pocket-sized access point. The dual 802.11n and 802.11ac radios, five internal antennas, plus a host of Motorola-only features provide a dependable high-performance wireless connection for every user and every mobile device in the room — 2.4 and 5 GHz. Its revolutionary small size makes it easy to install anywhere, while the understated tamper-proof design easily hides in plain sight. Deployment and management couldn’t be easier or faster — the AP 7502 can be installed in just a few minutes, automatically configured and managed remotely.
Motorola AP-7502-67030-WR Access Point Overview

EASILY DELIVER COST-EFFECTIVE HIGH-PERFORMANCE WIRELESS CONNECTIVITY IN PUBLIC-FACING MICRO-CELL ENVIRONMENTS

Whether you are responsible for a hotel, assisted living facility, dormitory housing or an apartment complex, you are challenged with providing high-speed Internet access in a challenging environment with many rooms - rooms with RF-blocking walls, floors and doors. You need a cost-effective way to provide the dependable desktop style wireless speeds your users expect in-room on however many consumer mobile devices they may own - including 2.4 GHz and the newer 5 GHz smartphones and tablets. To further complicate the challenge, today's users are watching videos, making video calls and posting on multi-media heavy social networking websites on their mobile devices - all bandwidth-heavy applications that require a latency- and jitter-free connection.

Technical Information
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
  • 2.48 GHz
  • 5.85 MHz
Total Number of Antennas:
5
Number of Internal Antennas:
5
Wireless Transmission Speed:
867 Mbit/s
MIMO Technology:
Yes
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
4
PoE (RJ-45) Port:
Yes
VGA:
No
HDMI:
No
USB:
No
Powerline:
No
Management Port:
No
Physical Characteristics
Form Factor:
Wall Mountable
Height:
1.4"
Width:
3.7"
Depth:
3.5"
Weight (Approximate):
8.11 oz
Miscellaneous
Package Contents:
  • 802.11ac/802.11n Dual Radio Wallplate AP
  • Universal Mounting Bracket
  • Decorative Trimplate
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0088442264754
UPC: 088442264754
EAN: 0088442264754
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-7502-67030-WR Access Point is also known as MOT-AP750267030WR or AP-7502-67030-WR.
