Motorola AP-0650-66030-OUS Access Point

Motorola AP-6532-66030-US Access Point A newer version of this item is available.
It is replaced by the Motorola AP-6532-66030-US Access Point.
Motorola AP650 - AP650: Dual Radio With Internal Antenna, US, Out
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • With IEEE 802.11n network technology and data transfer rate of up to 300 Mbit/s, enjoy superior HD media playback and lag-free gaming
  • Link your Wi-Fi traffic to your wired network with Fast Ethernet port
  • Electrical power is transmitted along with the data in a single cable to devices such as the Access Points, IP cameras or IP phones
Read More
Discontinued See Replacement
Add to Quote

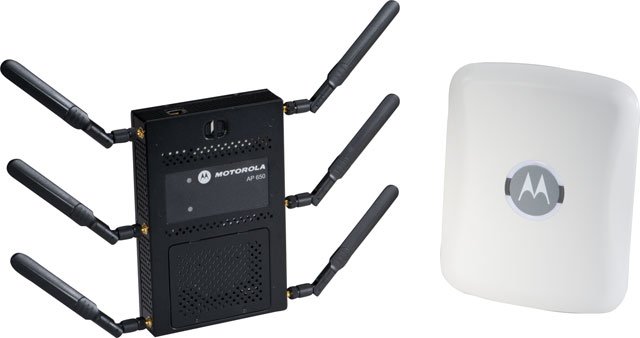

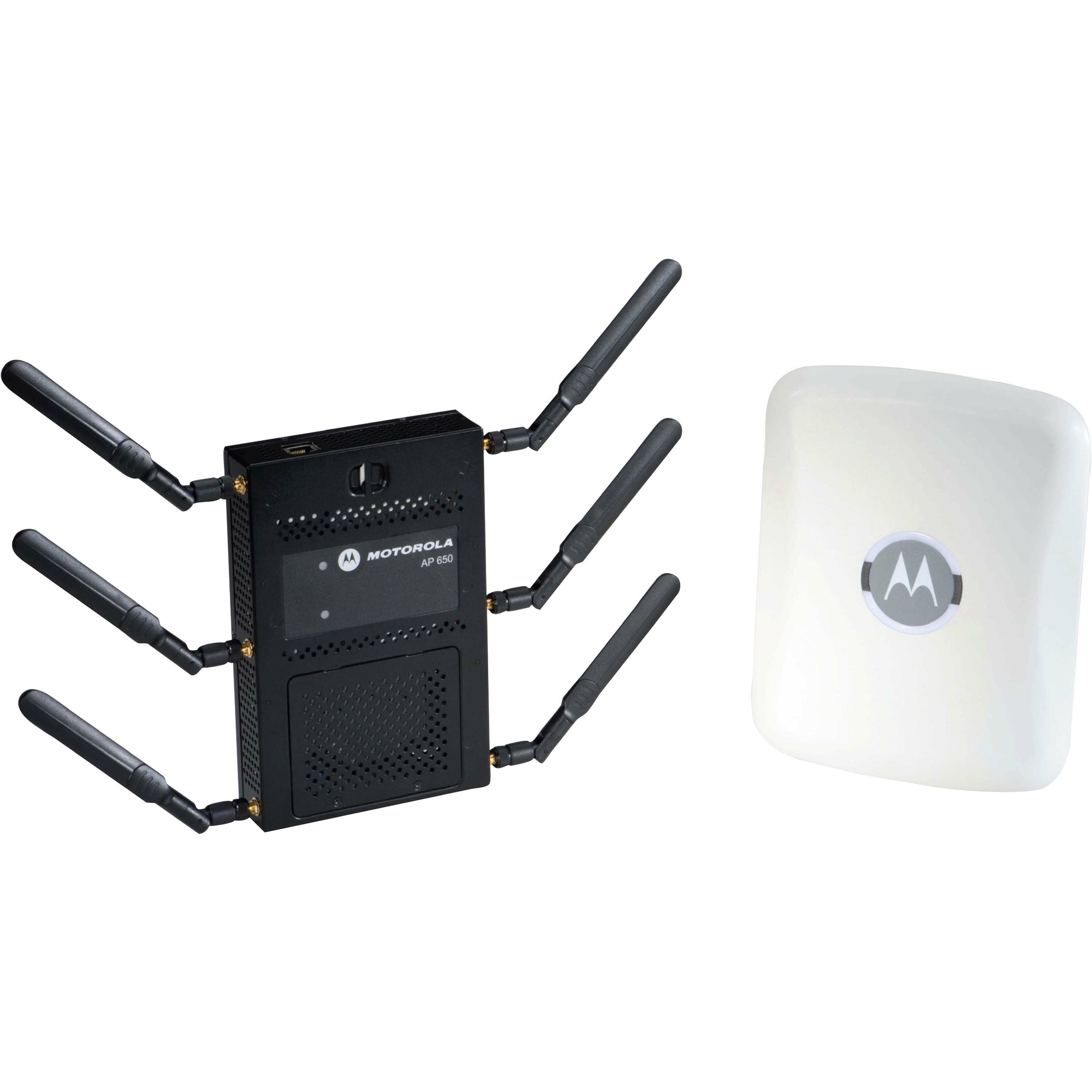

Motorola AP650 Access Point Model Overview
The Motorola AP650 is a thin multi-purpose access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN (WLAN) in branch offices or headquarters facilities. The AP650 combines simultaneous WLAN access and sensing, providing 24x7 wireless security and enabling IT administrators to remotely troubleshooting network performance issues at any location. The AP650 is designed to optimize network availability through its central and pre-emptive intelligence which dynamically senses weak or failing signals, securely moves mobile users to alternate APs, and boosts signal power to ensure uninterrupted access. Common problems, often seen with other products on the market such as building attenuation, electronic interference or sub-optimal access point placement are minimized, as SMART RF automatically optimizes power and channel selection allowing users high-quality wireless access and mobility.
Motorola AP-0650-66030-OUS Access Point Overview
The AP650 is a thin multi-purpose access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN (WLAN) in branch offices or headquarters facilities. The AP650 combines simultaneous WLAN access and sensing, providing 24x7 wireless security and enabling IT administrators to remotely troubleshooting network performance issues at any location. The AP650 is designed to optimize network availability through its central and pre-emptive intelligence which dynamically senses weak or failing signals, securely moves mobile users to alternate APs, and boosts signal power to ensure uninterrupted access. Common problems, often seen with other products on the market such as building attenuation, electronic interference or sub-optimal access point placement are minimized, as SMART RF automatically optimizes power and channel selection allowing users high-quality wireless access and mobility.
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Antenna Gain:
  • 2 dBi
  • 4.8 dBi
Antenna Connector:
SMA Connector
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • IEEE 802.1x
  • IEEE 802.11i
  • WPA2-CCMP
  • AES
  • WPA2-TKIP
  • WPA-TKIP
  • Secure Guest Access
Features:
  • MIMO Technology
  • Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
Network (RJ-11):
No
PoE (RJ-45) Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Powerline:
No
Management & Protocols
Management:
  • SSH
  • Telnet
  • SNMP v1/ v2/ v3
  • DHCP
  • RFMS
Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
  • Desktop
  • Ceiling Mountable
  • Wall Mountable
Height:
9.5"
Width:
7.5"
Depth:
1.7"
Weight (Approximate):
2 lb
Miscellaneous
Certifications & Standards:
EMC:
  • EN 301 489-1
  • EN 301 489-17
  • IEC 60601-1-2
  • EN 55022
  • ICES 003 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
Safety:
  • UL 60950
  • cUL
  • EU EN 60950
  • TUV
  • UL 2043
Radio Approvals:
  • FCC
  • Industry Canada
  • CE
  • TELEC
IEEE Standards:
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.11i
  • 802.11e
  • 802.3
  • 802.3af
  • 802.1x
  • 802.1Q
  • 802.1p
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN: 0682017466170
UPC: 682017466170
EAN: 0682017466170
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-0650-66030-OUS Access Point is also known as MOT-AP065066030OUS or AP-0650-66030-OUS.
