Microscan QX-870 Fixed Barcode Scanner

Decodes damaged, poorly printed, or misaligned codes

Microscan QX-870  -  The Microscan QX-870 laser scanner partners the latest technologies in barcode reading and connectivity into an easy to use solution for barcode track, trace and control applications. Simple to set up and deploy, it features a programmable sweeping raster to read multiple codes, in varying locations, even if they are damaged or misaligned. With plug and play setup and the most aggressive decode algorithms available, the QX-870 an ideal laser scanner for any industrial application.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$3,814.00
In Stock
Microscan QX-870 Fixed Barcode Scanner
Microscan QX-870 Fixed Barcode Scanner
Accessories For Microscan QX-870 Fixed Barcode Scanner

Scanner Capability

Scanner Type

Category

Microscan QX-870 Fixed Barcode Scanner Options

Full specifications (PDF)

Microscan QX-870 Fixed Barcode Scanner Model Overview

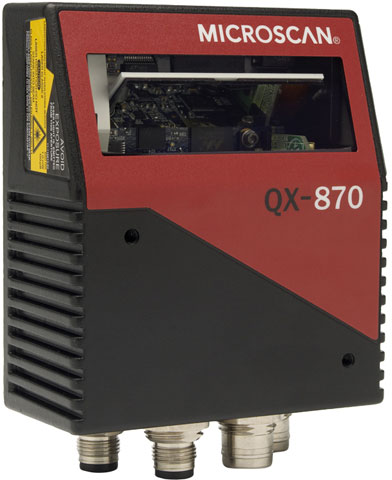

The Microscan QX-870 Industrial Raster Laser Scanner is engineered to optimize barcode track, trace, and control applications. With its IP65-rated enclosure, this robust scanner is perfect for any industrial environment, ensuring reliability even in challenging conditions. The QX-870 offers superior performance with a scanning speed between 300 to 1400 scans per second, adaptable to various reading distances. Its intelligent raster technology allows for the seamless reading of damaged or mis-aligned barcodes, making it a flexible choice for modern manufacturing needs.


Key Features:
  • Easy Setup: Features EZ Button for quick configuration without a computer.
  • High Performance: Scans barcodes up to 30 inches (762 mm), ideal for versatile applications.
  • Advanced Decoding: Supports damaged or poorly printed barcodes with X-Mode Technology.
  • Multiple Connectivity Options: Includes optional embedded Ethernet TCP/IP for high-speed communication.
  • Sweeping Raster: Programmable raster for reading multiple symbols efficiently.

Specifications:
  • Dimensions: Height: 4.29" (109 mm), Width: 3.74" (95 mm), Depth: 1.76" (45 mm)
  • Weight: 16 oz. (453 g)
  • Read Range: 1 to 30" (25 to 762 mm)
  • Scan Rate: Adjustable from 300 to 1400 scans/sec
  • Operating Temperature: 0° to 50° C (32° to 122° F)
  • Enclosure Rating: IP65
  • Power Requirement: 10-28 VDC, 270mA at 24 VDC (typical)
  • Supported Symbologies: Code 39, Codabar, Code 128, PDF417, GS1 Databar, and more.
